SLT12 User Manual
147

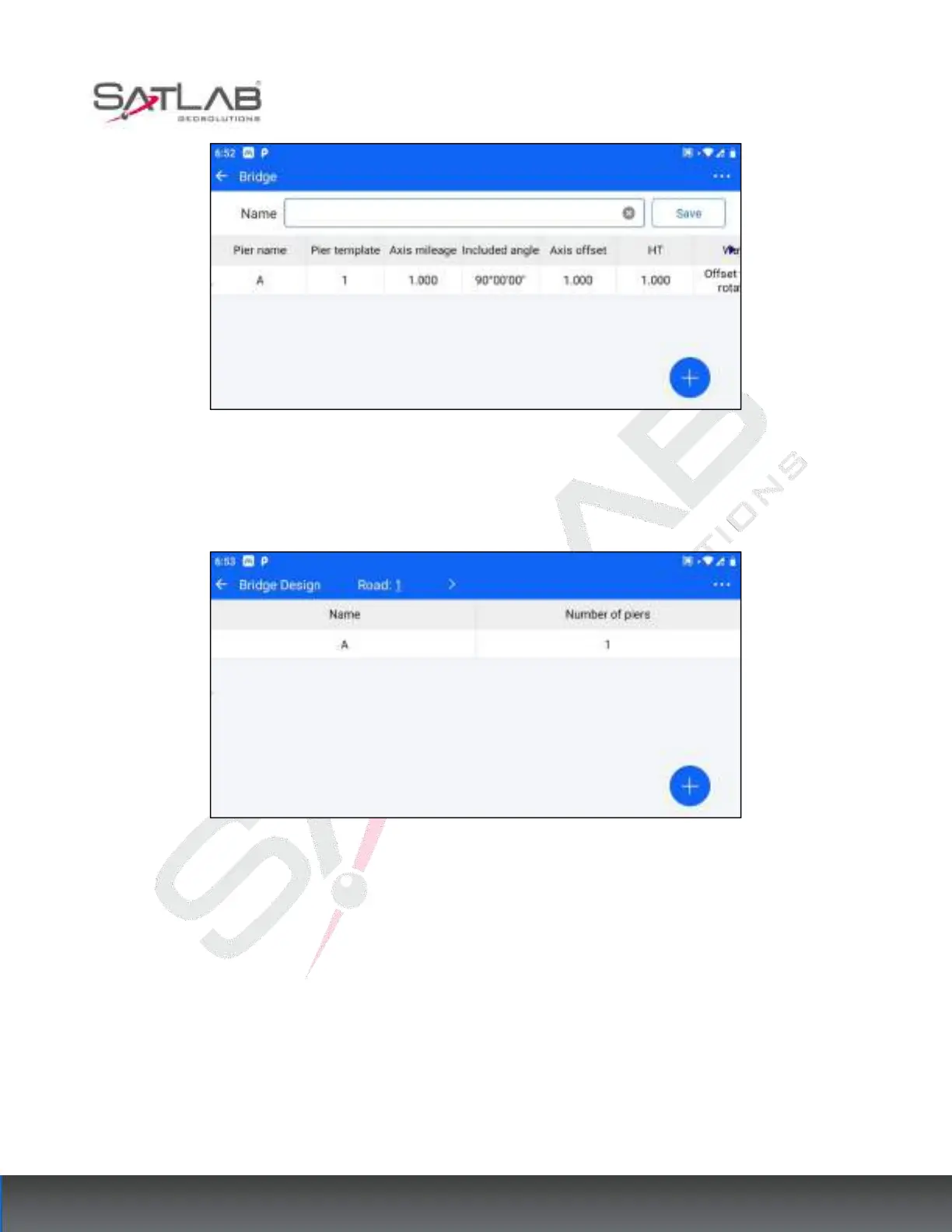

Figure 12- 10
Click a template in the pier list, you can "delete"/"edit" the pier operation.
6. Click "Save" to complete a bridge design.
Figure 12- 11
Click a bridge in the bridge list to "delete"/"edit" the bridge.
Click "..." -> "Clear" in the upper right corner to clear the bridge list.
12.3 Cone Design
Cone slope refers to the conical slope built at the joint of the bridge and roadbed to protect the slope of the road
embankment from scouring. The overall steps of cone slope Stakeout with ST-Surv software are
①
enter [Cone
Design] to design cone slope; ② enter [Conical Slope S.O] and sample the target points of cone slope
according to the set equal fraction.
The cone slope design on ST-Surv is based on the road, i.e., the road design is required before designing the cone
