SatLab SLT12 - Conical Slope S.O

SLT12 User Manual
152

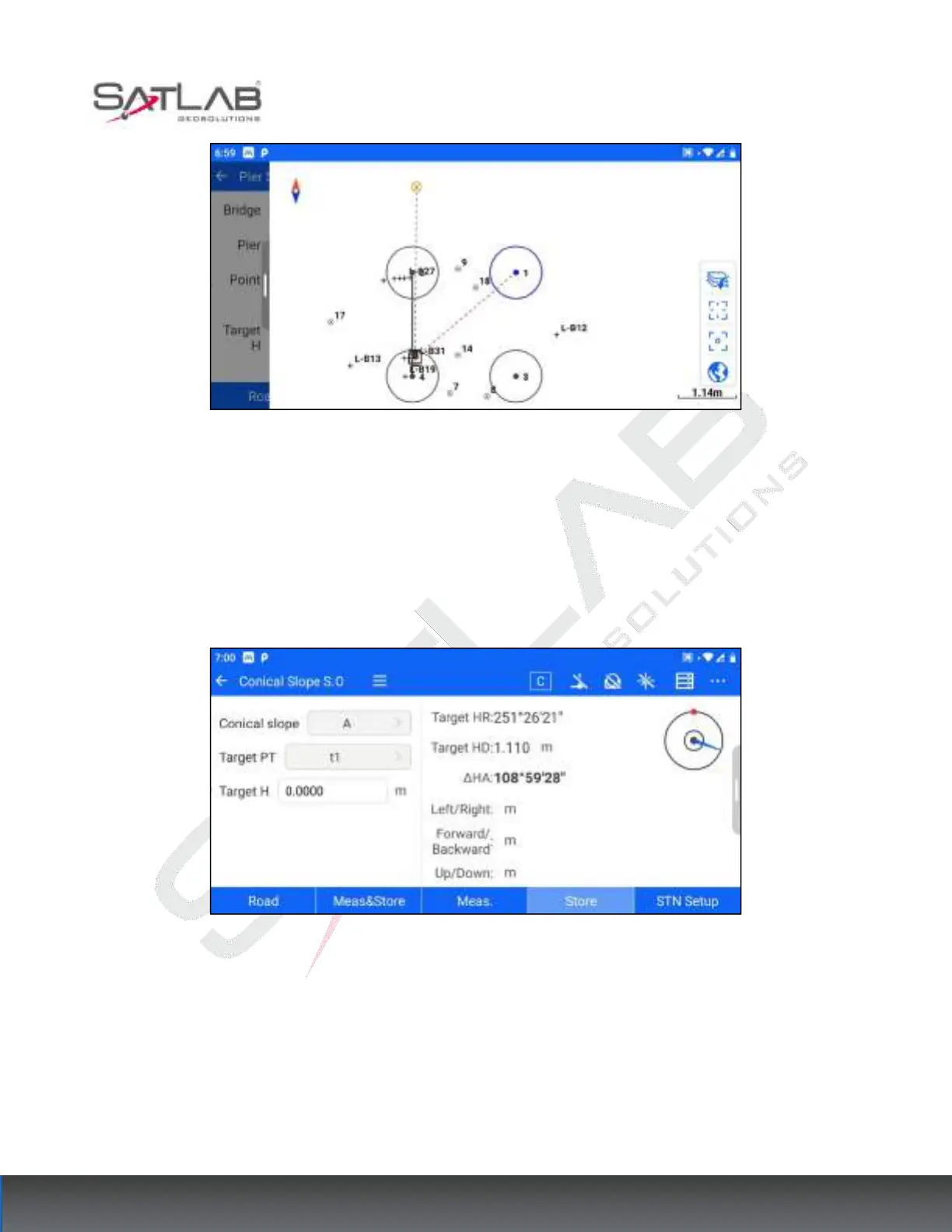

Figure 12- 20
12.5
Conical Slope S.O
The conical slope stakeout interface can stakeout the target points of the cone slope in the road data. The steps of
the stakeout operation are as follows.
1. Select road data: click the "Road" button, jump to the road library, and click to select the road data that need to
be put back into the sample interface.
Figure 12- 21
