2.2
Keys Functions and Display Information

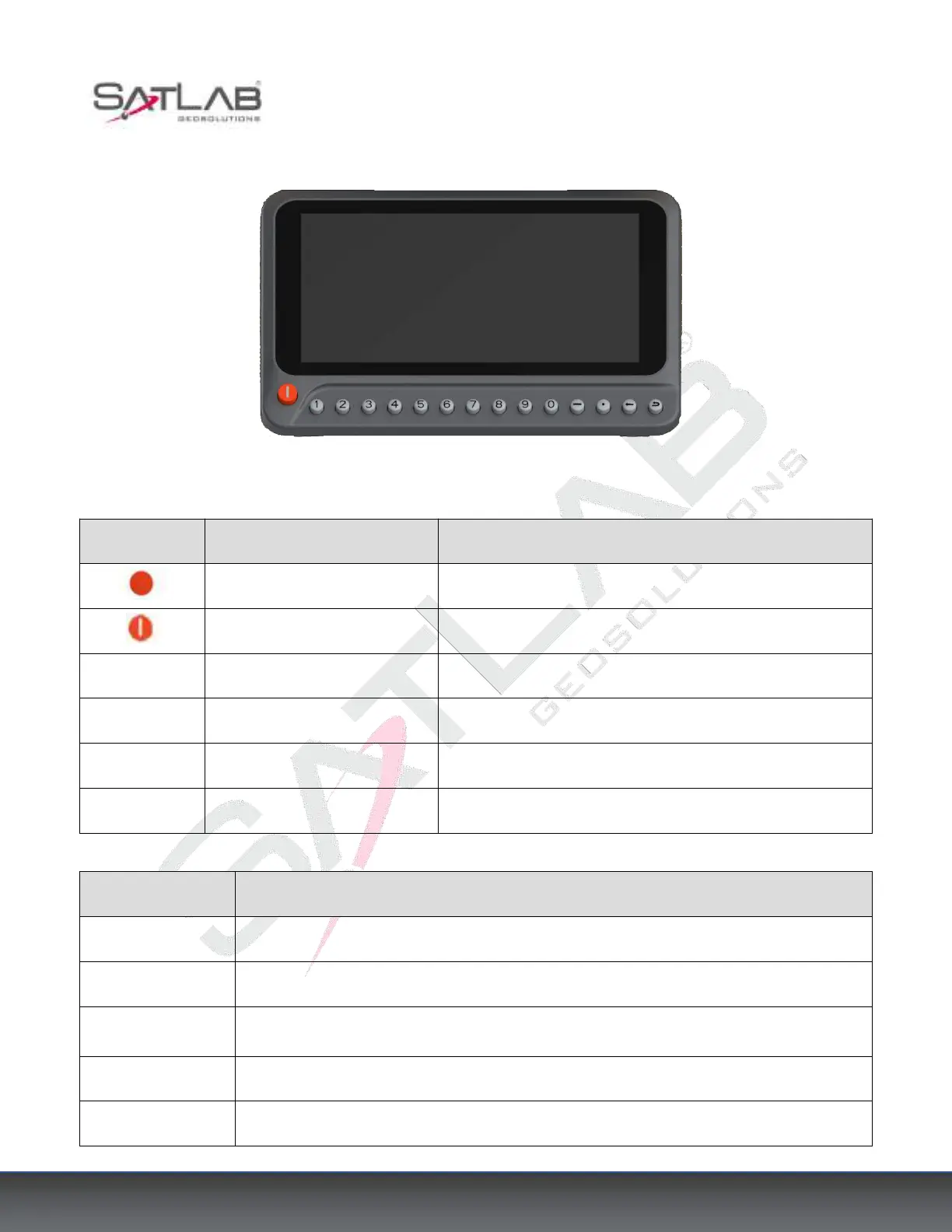

Figure 2-3
Table 2.1 Key functions
Key
Name
Function
Shortcut Measurement Key
Trigger a measurement when clicked.
Power Key
Power ON/ Power OFF.
0 ~ 9
Number Key
Enter the number 0~9.
·
～
-
Symbol Key
Enter the symbol, decimal point, plus or minus sign.
←
Delete Key
Delete the previous character of the insertion character.
↩
Return Key
Return to the previous level.
Table 2.2 Display symbol definitions
Symbols
Content
Vz
Zenith Mode
V0
The vertical angle is displayed as 0 when the telescope is horizontal at the face of 1
Vh
Vertical angle Mode (it is 0°00′00″when the telescope is level. The angle of elevation is
positive and the angle of depression is negative)
V%
Slope Mode
HR
Horizontal angle (right angle). dHR means the angle difference
