SLT12 User Manual
81

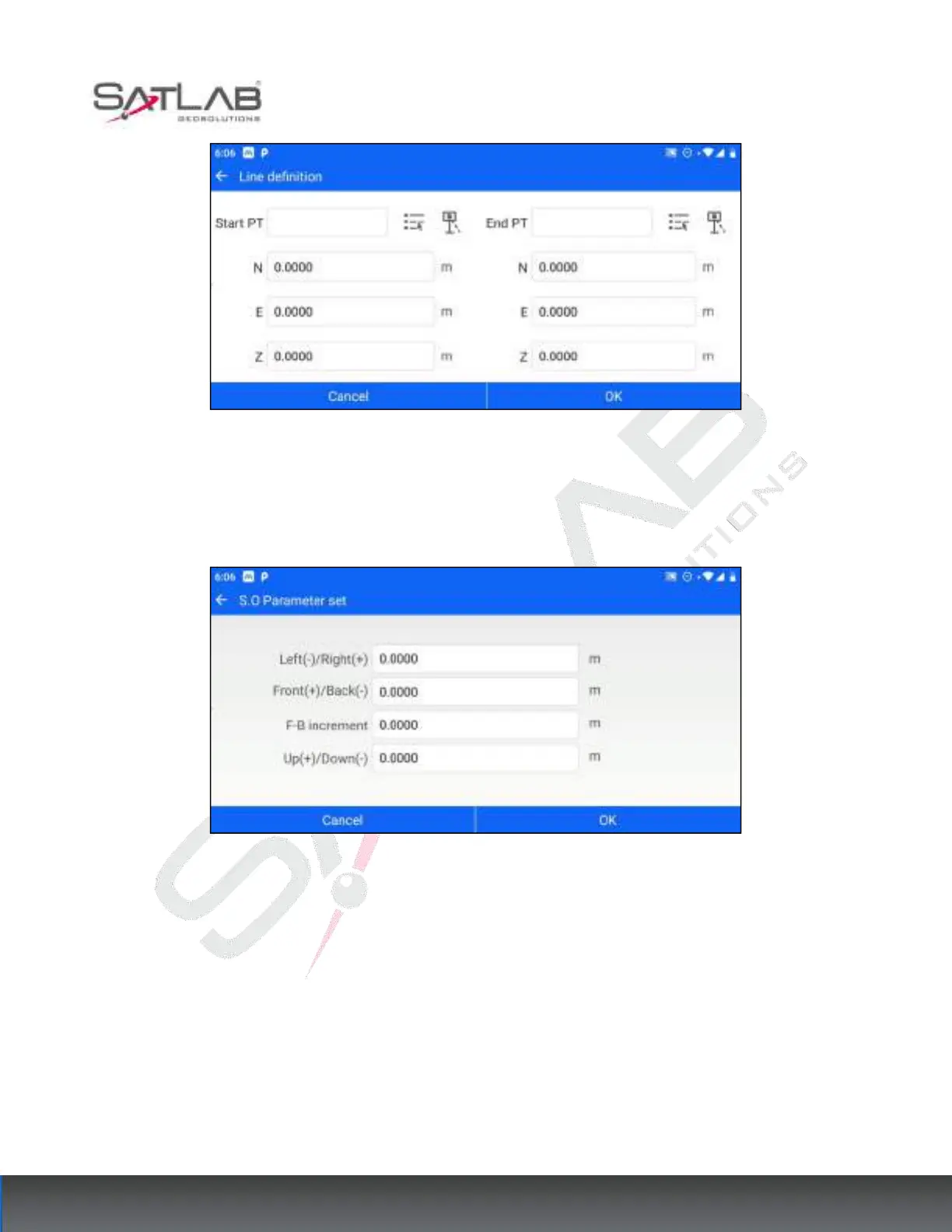

Figure 8- 23
After setting the line, click OK to enter the setting interface of stakeout parameters, you can set the stakeout
parameters such as left/right offset, front/back offset, front/back offset increment, top/bottom offset, etc. Click
OK to enter the line stakeout interface.
Figure 8- 24
Click "Line Definition" to modify and adjust the line information.
Click the previous point and next point buttons to switch the target points according to the configuration of the
stakeout parameters, click the measurement and storage/measurement- Store to calculate the stakeout
information, and expand the graphic interface on the right side to display the position relationship between the
current position, prism points, and stakeout points.
