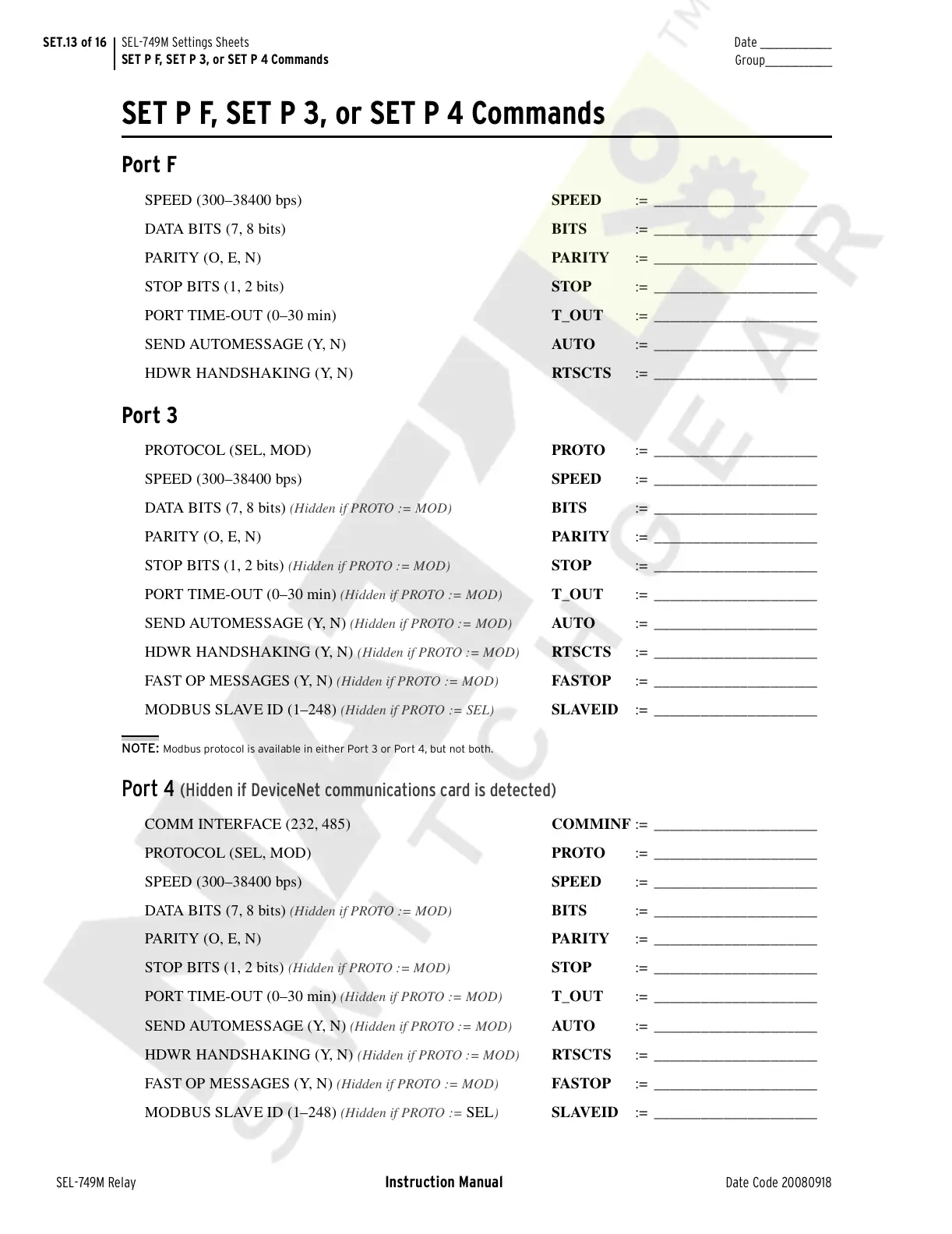

SET.13 of 16 SEL-749M Settings Sheets
SET P F, SET P 3, or SET P 4 Commands
SEL-749M Relay Instruction Manual Date Code 20080918
Date _______________
Group______________
SET P F, SET P 3, or SET P 4 Commands
Port F
SPEED (300–38400 bps) SPEED := _____________________
DATA BITS (7, 8 bits) BITS := _____________________
PARITY (O, E, N) PARITY := _____________________
STOP BITS (1, 2 bits) STOP := _____________________
PORT TIME-OUT (0–30 min) T_OUT := _____________________
SEND AUTOMESSAGE (Y, N) AUTO := _____________________
HDWR HANDSHAKING (Y, N) RTSCTS := _____________________
Port 3
PROTOCOL (SEL, MOD) PROTO := _____________________
SPEED (300–38400 bps) SPEED := _____________________
DATA BITS (7, 8 bits)
(Hidden if PROTO := MOD) BITS := _____________________
PARITY (O, E, N) PARITY := _____________________
STOP BITS (1, 2 bits)
(Hidden if PROTO := MOD) STOP := _____________________
PORT TIME-OUT (0–30 min)
(Hidden if PROTO := MOD) T_OUT := _____________________
SEND AUTOMESSAGE (Y, N)
(Hidden if PROTO := MOD) AUTO := _____________________
HDWR HANDSHAKING (Y, N)
(Hidden if PROTO := MOD) RTSCTS := _____________________
FAST OP MESSAGES (Y, N)
(Hidden if PROTO := MOD) FASTOP := _____________________
MODBUS SLAVE ID (1–248)
(Hidden if PROTO := SEL) SLAVEID := _____________________
NOTE: Modbus protocol is available in either Port 3 or Port 4, but not both.
Port 4 (Hidden if DeviceNet communications card is detected)
COMM INTERFACE (232, 485) COMMINF := _____________________
PROTOCOL (SEL, MOD) PROTO := _____________________
SPEED (300–38400 bps) SPEED := _____________________
DATA BITS (7, 8 bits)
(Hidden if PROTO := MOD) BITS := _____________________
PARITY (O, E, N) PARITY := _____________________
STOP BITS (1, 2 bits)
(Hidden if PROTO := MOD) STOP := _____________________
PORT TIME-OUT (0–30 min)
(Hidden if PROTO := MOD) T_OUT := _____________________
SEND AUTOMESSAGE (Y, N)
(Hidden if PROTO := MOD) AUTO := _____________________
HDWR HANDSHAKING (Y, N)
(Hidden if PROTO := MOD) RTSCTS := _____________________
FAST OP MESSAGES (Y, N)
(Hidden if PROTO := MOD) FASTOP := _____________________
MODBUS SLAVE ID (1–248)
(Hidden if PROTO := SEL) SLAVEID := _____________________
