12.6.3 Calculating the response time of DCS..B with overspeed distance monitoring
If the "overspeed distance monitoring" function (MSC) is used for speed monitoring, the
total response time of the DCS..B option will increase. Two cases are distinguished.

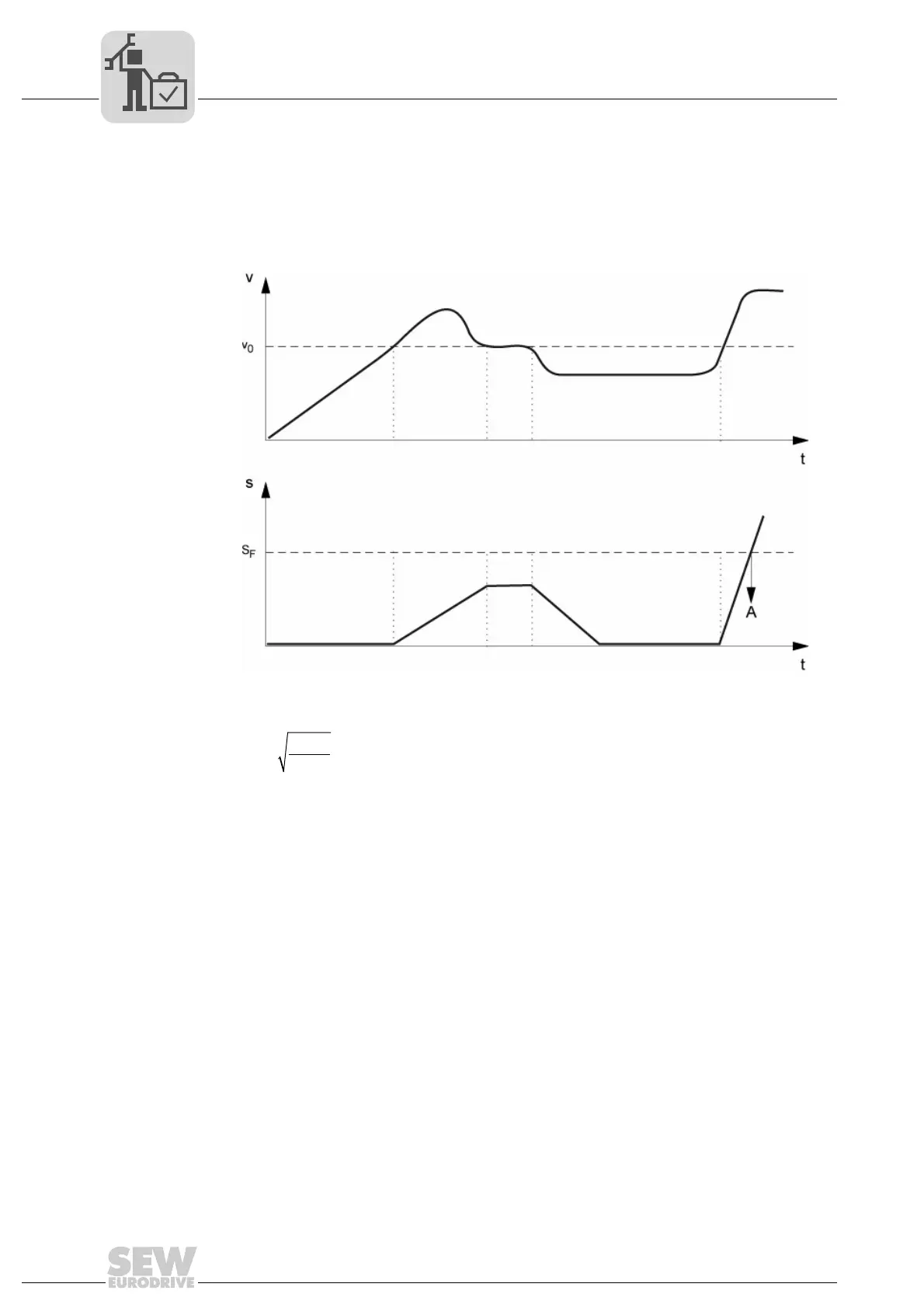

1. Faulty acceleration beyond the monitored velocity.
4033391243
2437366027
A = Alarm is triggered
v
0
= Monitored velocity (MSC)
t
R
= Response time of the DCS..B option
s
F
= Permitted distance for overspeed distance monitoring
a = Acceleration of the drive
t
DCS
= Cycle time of the DCS..B option
t
s
a
t
R
F
DCS
=
×
+×
2
2
