Installing the MOVISAFE
®
DCS..B option
Installation
5.4 Installing the MOVISAFE
®
DCS..B option
INFORMATION
• Option DCS..B can only be installed in MOVIDRIVE
®
MDX61B sizes 1 to 7 but not
in size 0.

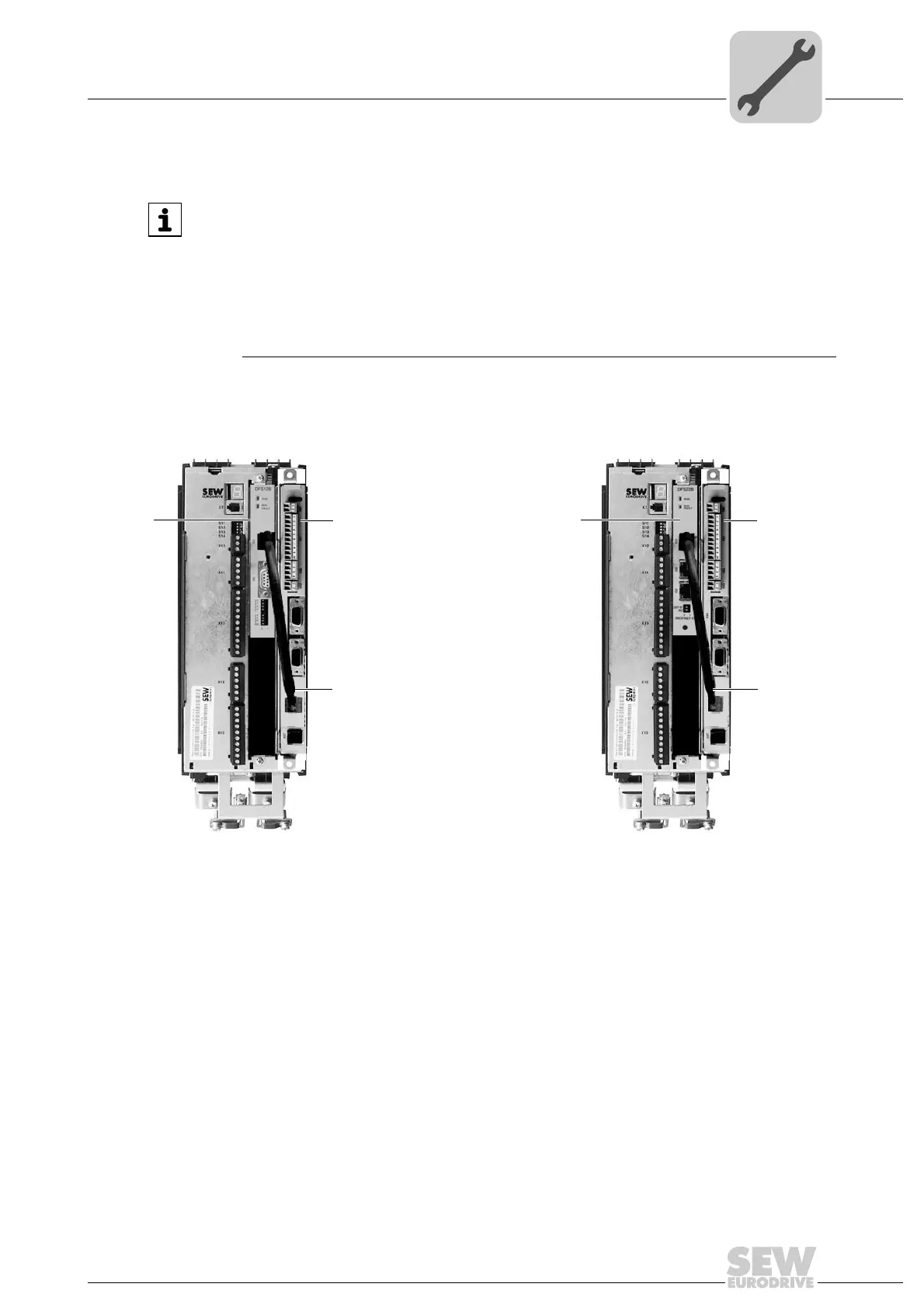

• Option DCS21B/22B can only be used in combination with the DFS12B/22B field-
bus interface option. Option DCS21B/22B must be installed in the expansion slot,
and option DFS12B/22B in the fieldbus slot (see following figure).
• The prefabricated cable DAE34B (part number 1821 307 3) is used for CAN bus
connection between terminal X86 of DCS21B/22B and X31 of the DFS12B/22B
option. DAE34B is included in the delivery of the DCS21B/22B option.
9007201245756299
DFS22B
MOVIDRIVE
®
MDX61B
BG1 - 7
DCS21B/22B
DCS21B
X86
DFS12B
DCS
21BDCS21B/22B
DCS21B
DAE34B
X86
DAE34B
