Manual – MOVIDRIVE® MDX61B Safety Module Option MOVISAFE® DCS..B
23
3
Safety functions
Integrated Safety Technology

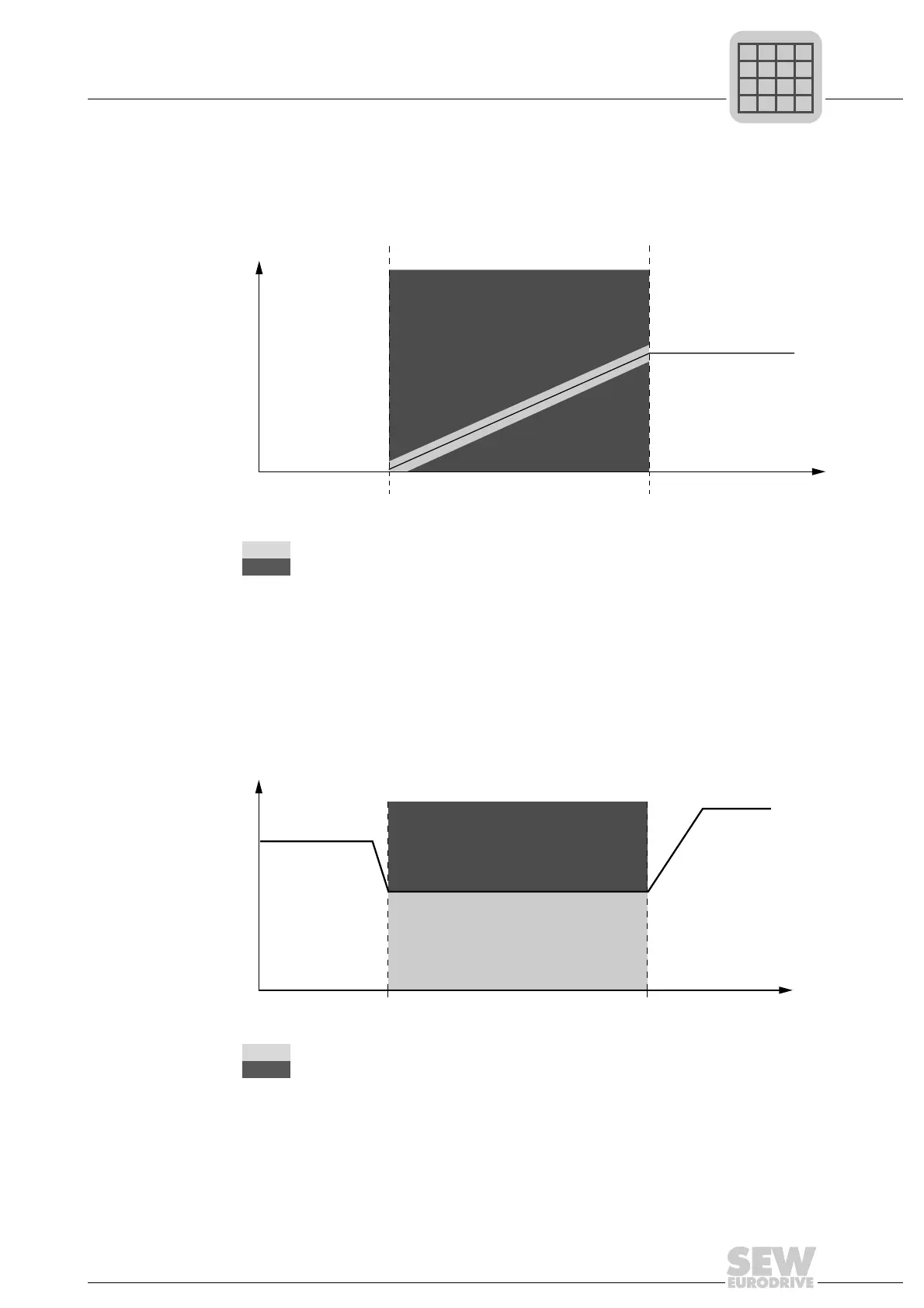

3.2.8 SAR – Safe Acceleration Range
The SAR function prevents the acceleration of the drive from exceeding a specified
range. If the permitted acceleration range is exceeded, the safety function will be dis-
abled and an error response will be triggered (usually STO or SS1).
3.2.9 SLS – Safely Limited Speed
The SLS function prevents the drive from exceeding a specified velocity. If the permitted
velocity is exceeded, the safety function will be disabled and an error response will be
triggered (usually STO or SS1).
9007201659983371
Safety function monitors
Safety function trips
v=Velocity
t=Time
t
1
= Point of time when SAR is activated
t
2
= Point of time when SAR is deactivated
t
1
t
2
t
V
9007201225702923
Safety function monitors
Safety function trips
v=Velocity
t=Time
t
1
= Point of time when SLS is activated
t
2
= Point of time when SLS is deactivated
t
V
t
1
t
2
