Connection options for an encoder system
Installation

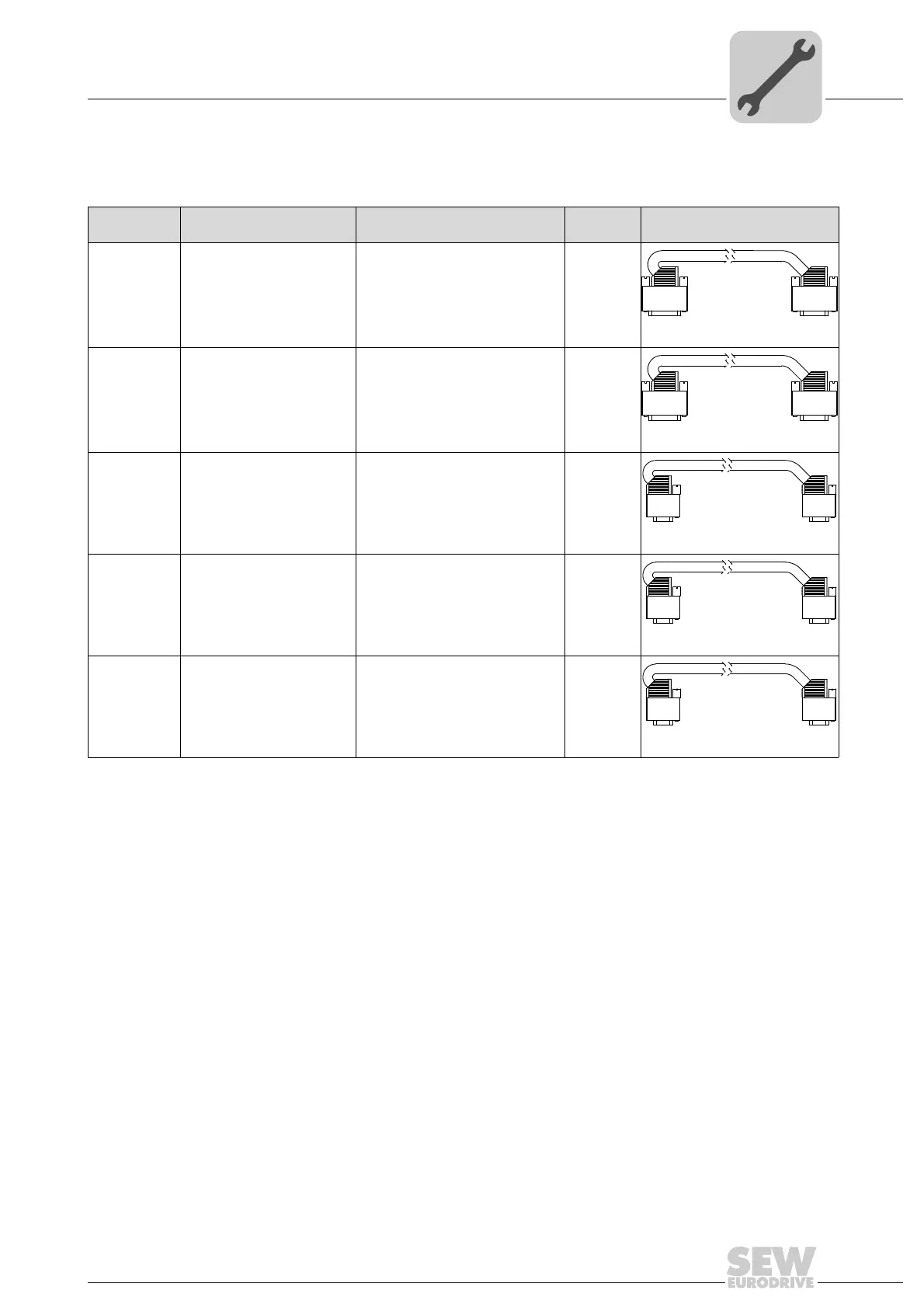

5.11.2 Connection cables for encoder signal split boxes
The connection cables can be configured from 0.8 m to 6 m.
Designation Description Connection Part
number
Symbol
DAE80B Connection between encoder
signal split box and
MOVIDRIVE
®
B
MOVIDRIVE
®
B:
• DEH11B:X15
• DEH21B:X15
• DEU21B:X15
1813 265 0
4916127627
DAE81B Connection between encoder
signal split box and
MOVIAXIS
®
MOVIAXIS
®
:
• MXA:X13
• XGH11A:X63
• XGS11A:X64
1813 266 9
4916127627
DAE82B Connection between encoder
signal split box and
MOVISAFE
®
UCS..B
MOVISAFE
®
:
• UCS..B:X7
• UCS..B:X8
1813 112 3
4916131083
DAE83B Connection between encoder
signal split box and
MOVISAFE
®
DCS..B
MOVISAFE
®
:
• DCS..B:X84
• DCS..B:X85
1813 111 5
4916131083
DAE84B Connection between encoder
signal split box and
MOVIDRIVE
®
B
MOVIDRIVE
®
B:
• DEH21B:X62
•DIP11B:X62
1814 321 0
4916131083
[I]
[II]
[I]
[II]
[I]
[II]
[I]
[II]
[I]
[II]
