Scope of delivery
Unit Structure
4.2.2 2nd nameplate: MOVIDRIVE
®
B

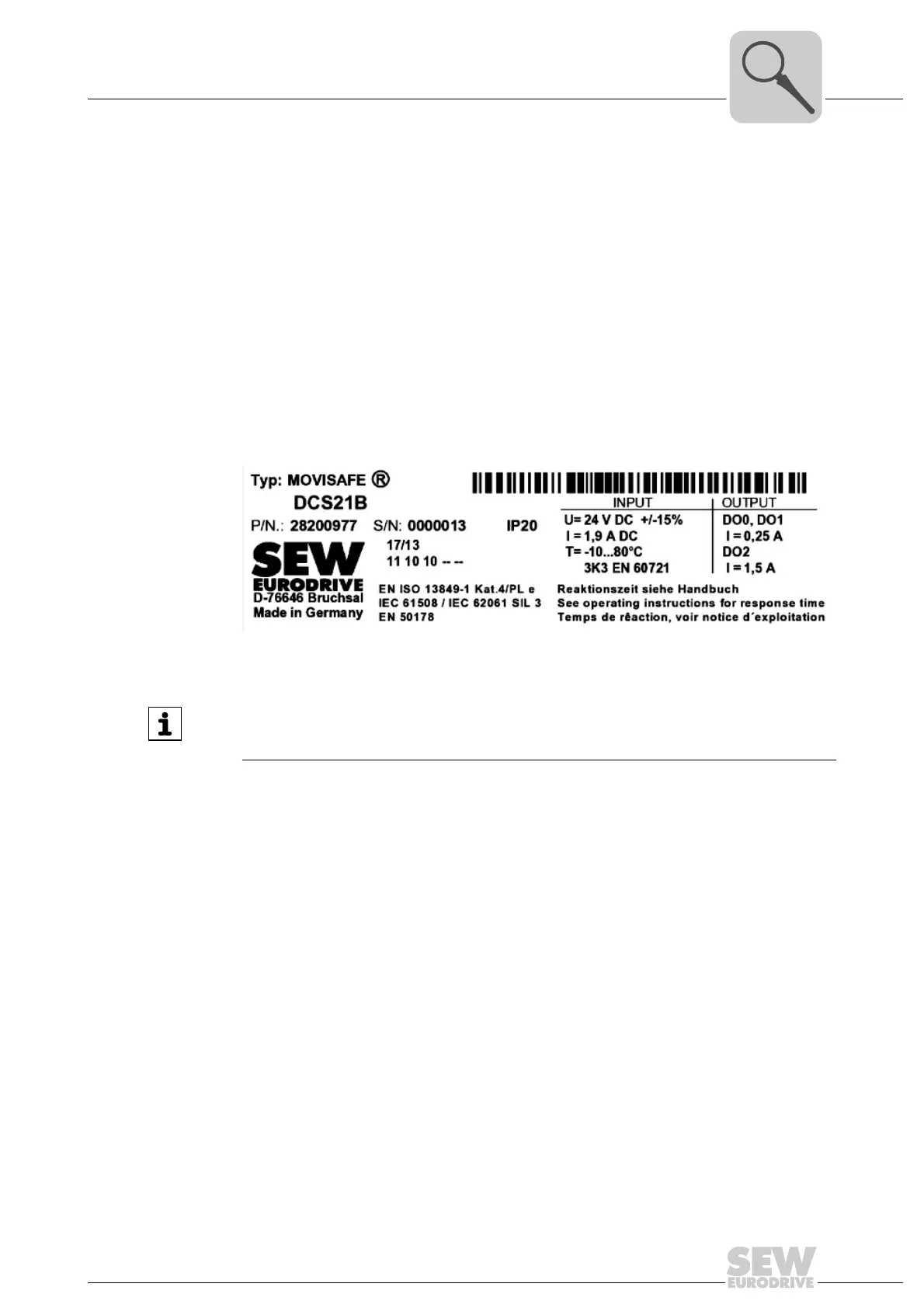

• The second nameplate (see following figure) is attached to MOVIDRIVE
®
MDX61B.
It contains the following information:
– Type designation
– Part number (P/N), serial number (S/N)
– Input data, output data
– Degree of protection (here: IP20)
– Production date (here: 17/13)
– Version (here: 11 10 10)
– Permitted standards
– Reference to the response times in the manual
4.3 Scope of delivery
• DCS21B/22B
– Option card with pluggable screw terminals at X80, X81, X82, X83 and X86.
– Prefabricated cable DAE34B (part number: 1821 307 3) for CAN bus connection
between DCS21B/22B X86 and X31 of the DFS12B/DFS22B option.
• DCS31B/32B
Option card with pluggable screw terminals at X80, X81, X82 and X83.
9007201225849867
INFORMATION
If the DCS..B option is delivered separately, you must attach the supplied nameplate
on the outside of MOVIDRIVE
®
MDX61B.
