SEW-Eurodrive MOVISAFE DCS21B

Manual – MOVIDRIVE® MDX61B Safety Module Option MOVISAFE® DCS..B
25
3
Safety functions
Integrated Safety Technology

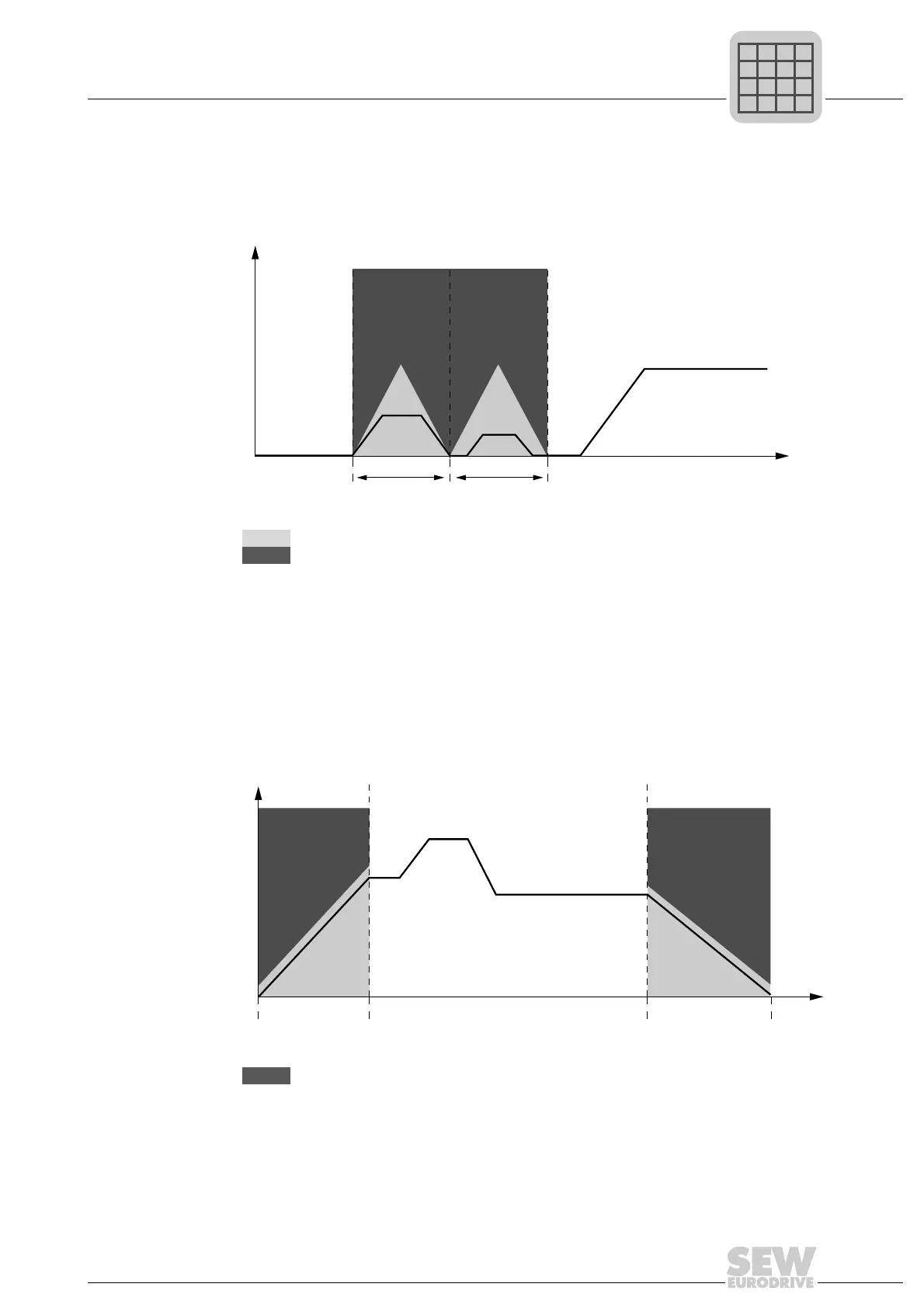

3.2.12 SLI – Safely Limited Increment
The SLI function prevents that a movement exceeds a specified increment. If the limit
value of the increment is exceeded, the safety function will be disabled and an error
message will be triggered (usually STO or SS1).
3.2.13 SLP – Safely Limited Position
The SLP function prevents that a movement exceeds a specified absolute position. If
the limit value of the absolute position is exceeded, the safety function will be disabled
and an error message will be triggered (usually STO or SS1).
9007201225720459
Safety function monitors
Safety function trips
v=Velocity
S=Track
s
1
, s
2
= Point of time when SLI is activated
s
2
, s
3
= Point of time when SLI is deactivated
∆s = Safe increment
S
V
ΔS ΔS
S
1
S
2
S
3
1971086987
Safety function trips
v=Velocity
t=Time
X
1
= Minimum (lower) absolute position
X
2
= Maximum (upper) absolute position
S
V
X
0
X
1
X
2
X
3
