Safety functions
Integrated Safety Technology
3.2.6 SOS – Safe Operating Stop
The SOS function prevents the motor from deviating from the stop position by more than
a specified value. The drive inverter delivers the power to keep the motor in position. If
the specified value is exceeded, the safety function will be disabled and an error re-
sponse (usually STO or SS1) will be triggered.
3.2.7 SLA – Safely Limited Acceleration
The SLA function prevents a movement from exceeding a specified acceleration value.
If the permitted acceleration limit is exceeded, the safety function will be disabled and
an error response will be triggered (usually STO or SS1).

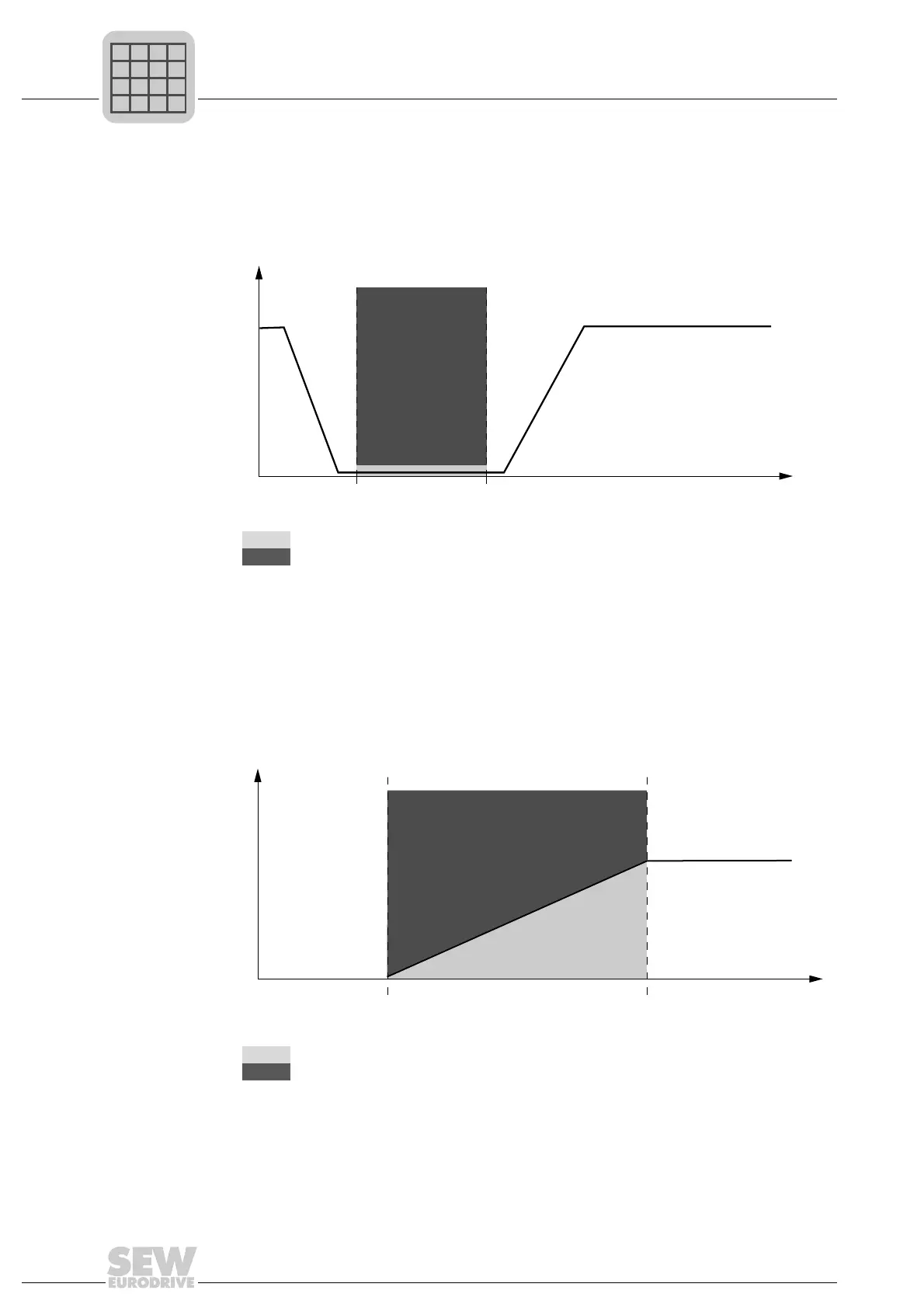

9007201225700491
Safety function monitors
Safety function trips
v=Velocity
t=Time
t
1
= Point of time when SOS is triggered
t
2
= Point of time when SOS is deactivated
t
1
t
2
t
V
9007201225705355
Safety function monitors
Safety function trips
v=Velocity
t=Time
t
1
= Point of time when SLA is activated
t
2
= Point of time when SLA is deactivated
t
1
t
2
t
V
