Manual – MOVIDRIVE® MDX61B Safety Module Option MOVISAFE® DCS..B
71
5
Connection options for an encoder system
Installation

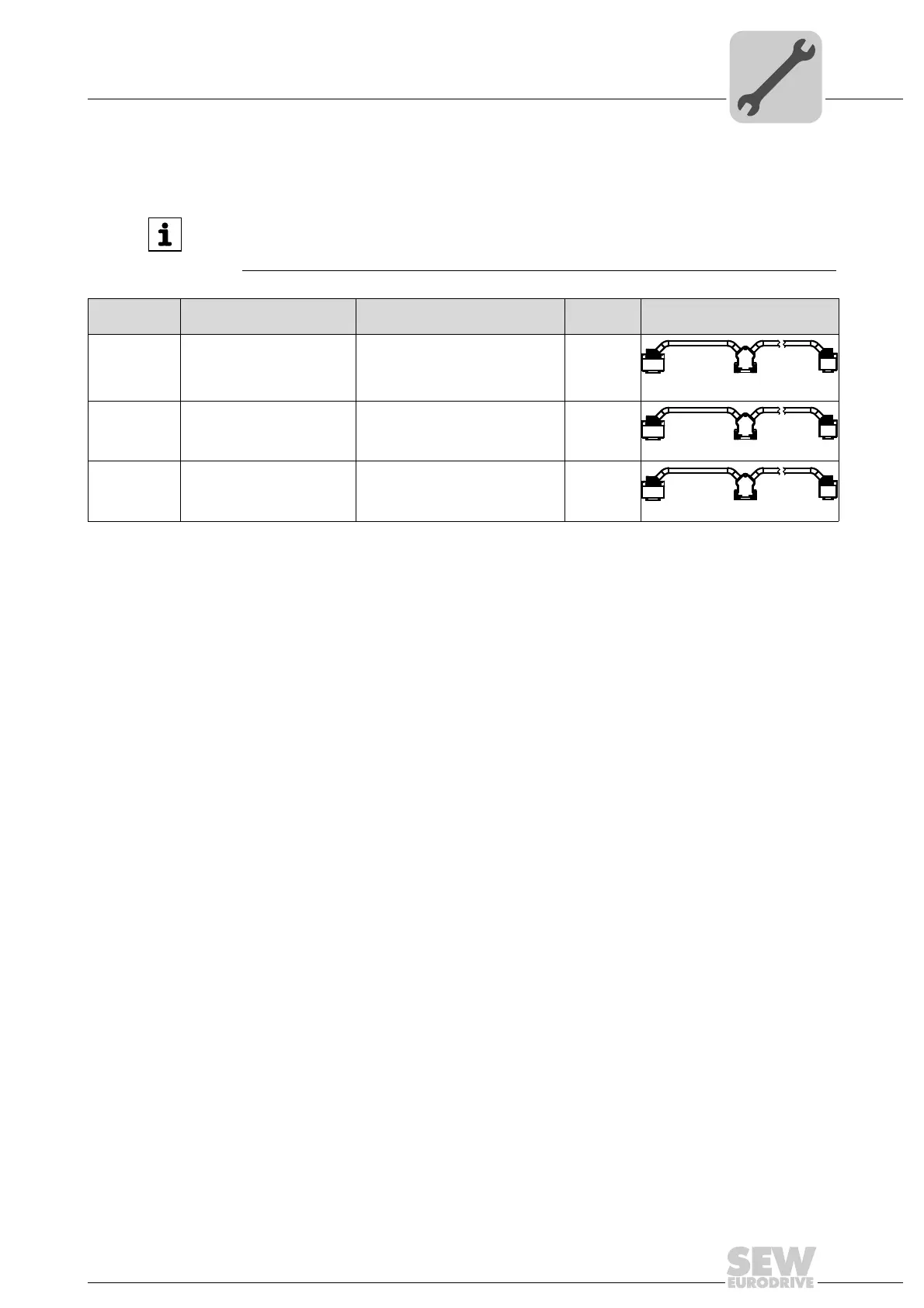

5.11.6 Split cables for MOVISAFE
®
DCS21B/31B with serial number ≤1499
INFORMATION
Applies only to DCS21B option (part number 18203922 and serial number ≤ 001499)
or DCS31B (part number 18209580 and serial number ≤ 001499).
Designation Description Connection Part
number
Symbol
DAE31B Splitting of SIN/COS and TTL
encoder (asynchronous
motor)
MOVIDRIVE
®
B:
• DEH11B:X14
• DER11B:X14
• DEU21B:X14
1810 053 8
4262727435
DAE32B Splitting of SSI encoder MOVIDRIVE
®
B:
•DIP11B:X62
• DEH21B:X62
1810 625 0
4262727435
DAE33B Adapter for SIN/COS and
TTL encoders
Cable (D-sub 15 to D-sub 9) with
resistors
1821 307 3
4262727435
