3.2.4 SS2(b) – Safe Stop 2
When the SS2(b) function is active, the inverter brings the motor to a standstill electri-
cally. The position must be safely monitored after standstill (SOS function according to
EN 61800-5-2). The STO safety function will be triggered if the deceleration value until
standstill is exceeded or if there is a movement at standstill. STO means that standstill
has to be ensured by a mechanical brake.
This safety function corresponds to a controlled stop of the drive according to EN 60204-
1, stop category 2.

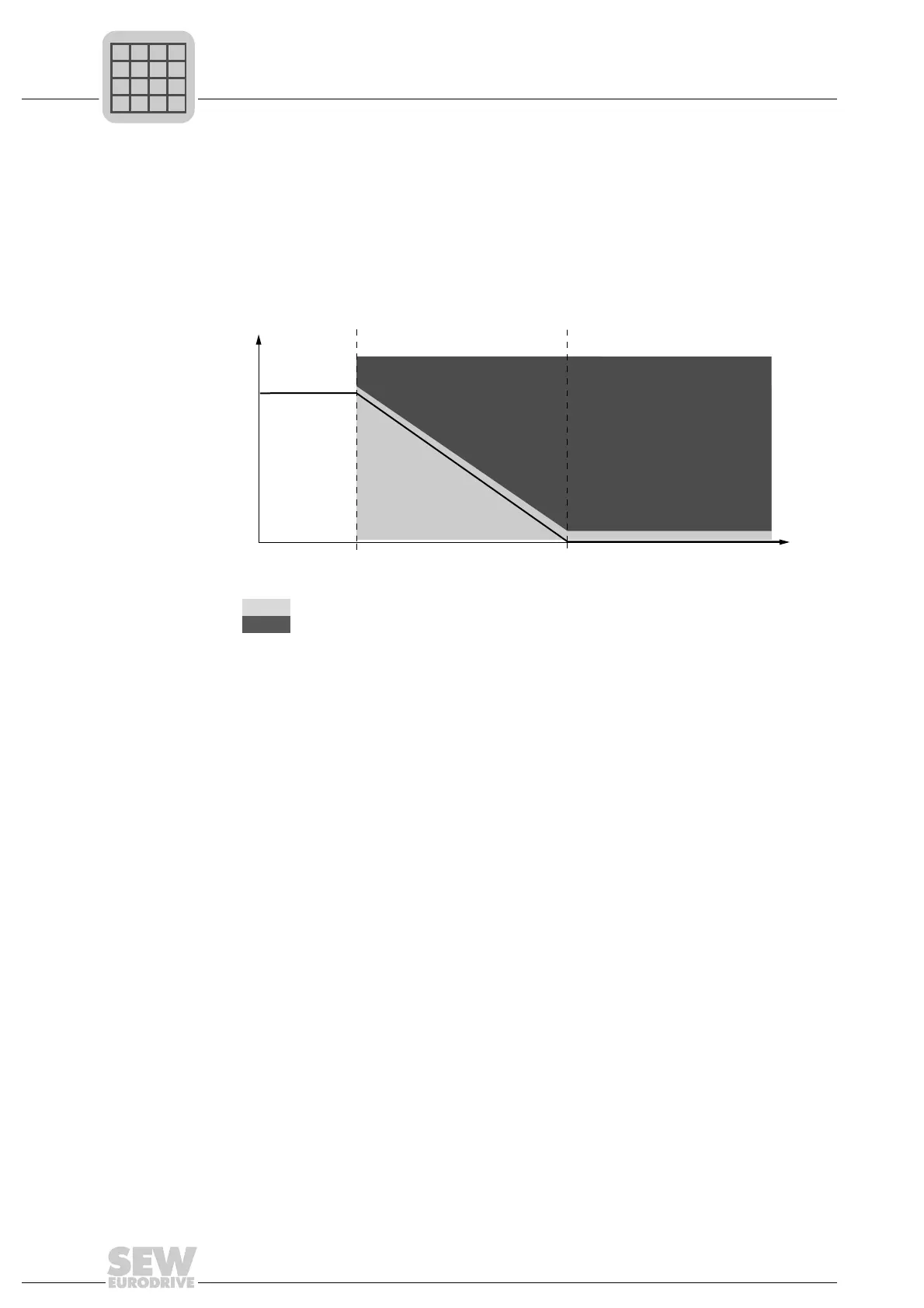

9007201225698059
