Manual – MOVIDRIVE® MDX61B Safety Module Option MOVISAFE® DCS..B
5
Connecting digital inputs DI1 to DI8
Installation

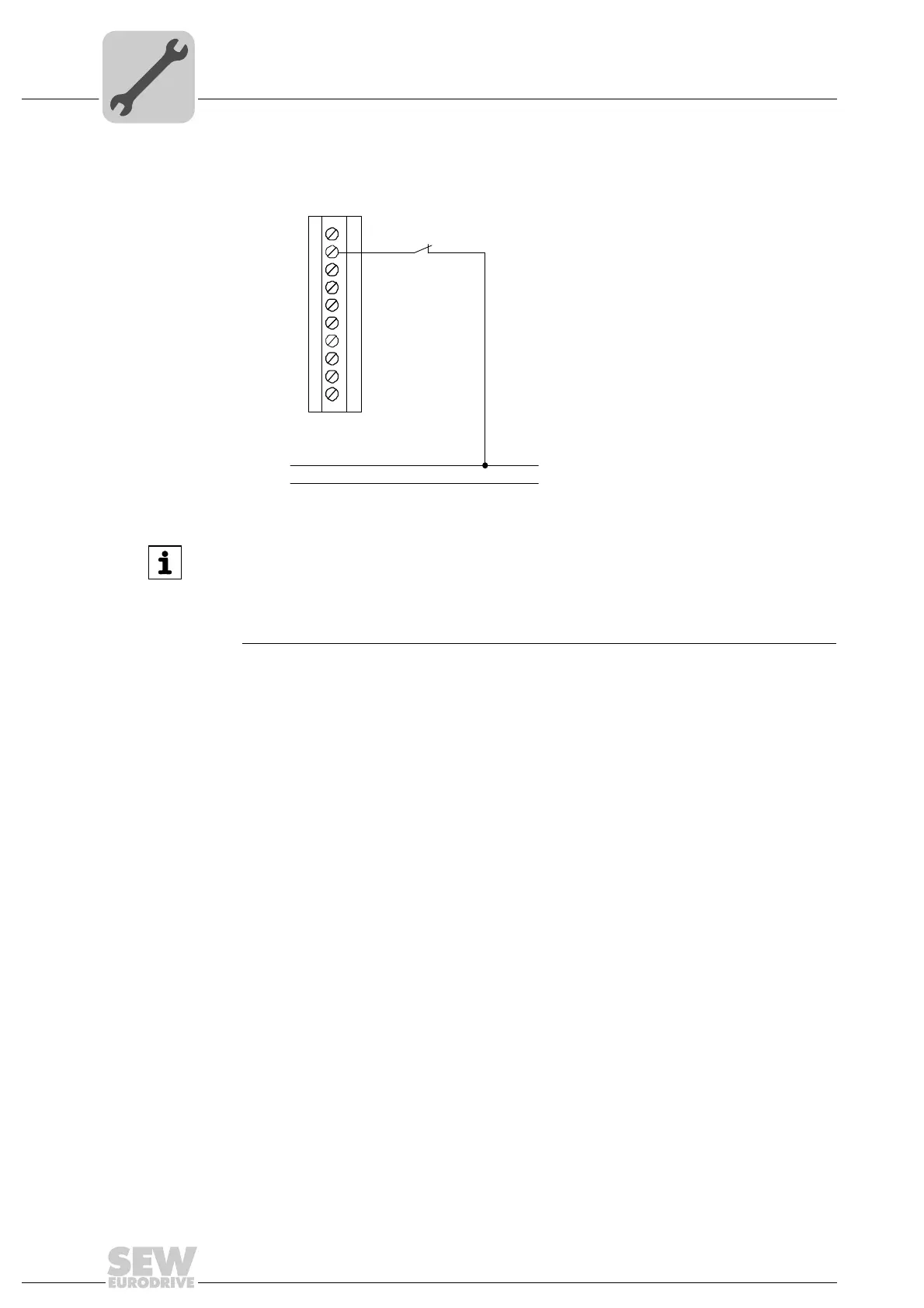

5.8.2 Single-channel sensor, not monitored
1971589259
P1
P2
DI1
DI2
DI3
DI4
DI5
DI6
DI7
DI8
DC 24 V
DC 0 V
X81
1
6
2
3
4
5
7
8
9
10
INFORMATION
The single-channel sensor is connected to the DCS..B option without pulsing. Option
DCS..B cannot detect a cross fault or an interrupted signal. Note that this configuration
is not permitted for safe applications unless external measures are taken.
A category 1 structure according to EN ISO 13849-1 can be achieved with the circuit.
