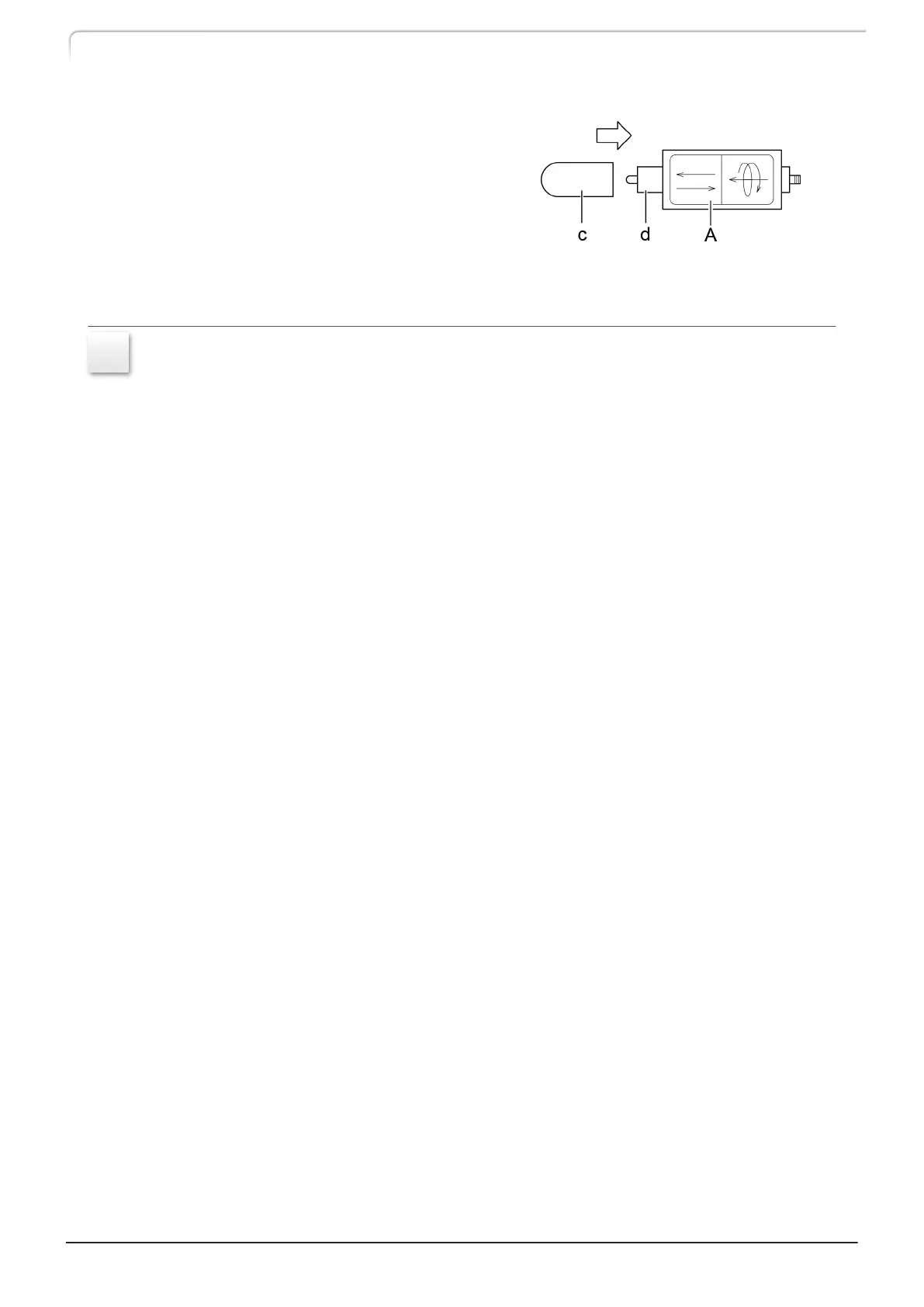

22
Put
the
c
ap
(c)
on
th
e
white
protru
sion
(d
)
o
f
the
seal
instal
ler/r
emover
.
3
Attach
the
pump
hea
d,
SU
S
pip
e,
a
nd
in
let
tube
by
f
ollowi
ng
th
e
in
struct
ions
in
"Insta
lling
th
e
pump
hea
d"
P.89
.
98
LC-40D X3 CL LC-40D XR CL
4 Maintenance
107
109
Table of Contents
Introduction
4
Indications Used in this Manual
4
Operating Nexera CL System
5
Table of Contents
6
Overview
11
Features
11
Component Parts
12
Optional Parts
13
Parts Identification and Function
17
Front
17
Behind
18
Back
19
Right Side and Bottom
20
Name and Functions of the Operation Panel
21
Display Area
23
Operation Area
24
Settings for the Basic Operation
26
Prior to Key Operation
26
Setting Flow Rate
26
Setting Compressibility
26
Setting Maximum Pressure Limit
27
Setting Minimum Pressure Limit
28
Operation
29
Preparation before Operation
29
Operation in Constant Flow Delivery Mode
30
Operation in Constant Pressure Delivery Mode
31
Types of Screens
33
Monitoring Screens
34
Auxiliary Functions Screen (FUNCTION)
38
Auxiliary Functions (FUNCTION) List
38
PARAMETER] Setting Group
41
CONTROL] Setting Group
47
SYSTEM] Setting Group
48
UTILITY] Setting Group
54
FILE] Operation Group
56
VP Functions Screen
57
List of VP Functions
57
Product Information Group (PRODUCT INFO)
59
Maintenance Information Group (MAINTENANCE)
59
Validation Support Information Group (VALIDATION)
63
Calibration Support Information Group (CALIBRATION)
71
Creating Time Program
79
Time Program Command List
79
Time Program Setting Screen
80
Creating a Time Program
81
Creating a Low-Pressure Gradient Program
83
Deleting a Step
84
Starting and Stopping a Time Program
84
Commands Used for Time Programs Only
85
Delivery in the Low-Pressure Gradient Mode
86
Set Value
86
Preparation for Delivery
86
Connection with the System Controller or Workstation
88
Setting the Instrument
88
Basic Parameters
88
Connection to External Input/Output Terminals
88
Periodic Inspection and Maintenance
89
Prior to Inspection and Maintenance
89
List of Periodic Inspection and Maintenance
92
Check after Inspection and Maintenance
93
Removing the Right Panel Cover and the Filter Holder
94
Removing/Installing the Pump Heads
95
Replacing the Plunger Seal
102
Replacing the Plunger Seal and Backup Ring
102
Resetting the Delivery Amount
109
Check after Replacement
109
Cleaning/ Replacing the Plunger and Diaphragm
110
Removing the Pump Head and the Head Holder
111
Cleaning and Replacement of the Plunger and the Diaphragm
113
Rinsing the Check Valve
117
Performing an Ultrasonic Cleaning of the Check Valve
120
Replacing the Check Valve
122
Inspecting the Line Filter
124
Replacing the Line Filter
125
Cleaning/Replacing the Suction Filter
127
Replacing the Drain Valve
129
Replacing the Air Filter (Right Panel)
130
Cleaning of the Leak Tray
132
Cleaning the Exterior
132
Usual Cleaning
132
Decontamination Cleaning
133
Cleaning of the Automatic Rinsing Kit
133
Technical Information
135
Specifications
135
LC-40D X3 CL Specifications
135
LC-40D XR CL Specifications
136
High-Pressure Gradient System
137
Low-Pressure Gradient System
137
Other Specifications
138
Maintenance Parts
140
Consumable Parts
141
Replacement Parts
142
Maintenance Kit
143
