6.1 Inspection
Mobile DaRt Operation Manual
6-5

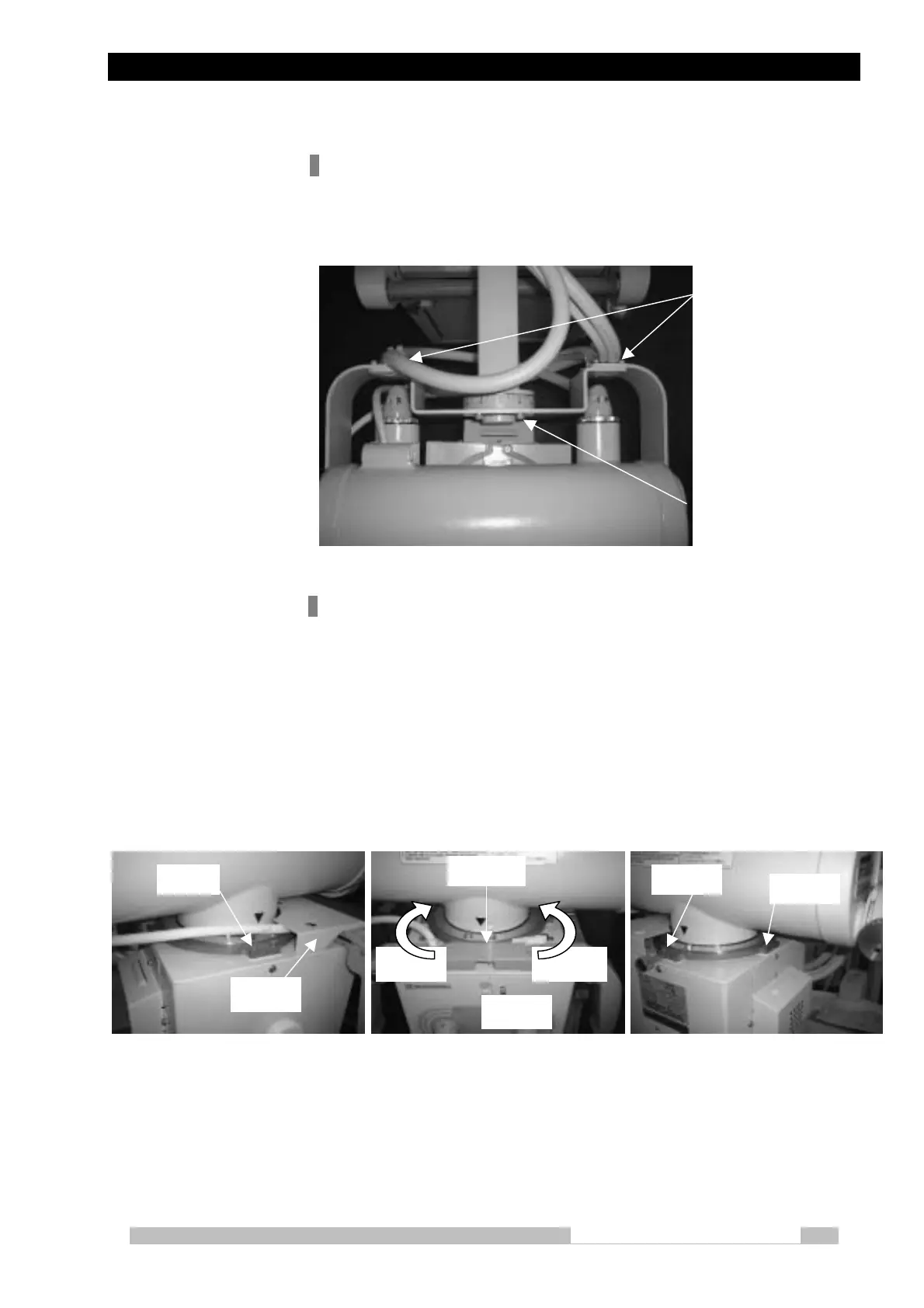

X-ray Tube holder
Immediately contact your nearest authorized Shimadzu service
center when the X-ray tube holder shakes.
Whether the M5 bolts in four places loosen respectively
Collimator and its attachments
Immediately contact your nearest authorized Shimadzu service
center when the collimator shakes.
Whether the bolts in four places loosen.
Standard position of collimator (0 deg)
_________Bolt a is confirmed.
+90deg rotation of collimator _________Bolt b is confirmed.
-90deg rotation of collimator _________Bolt c is confirmed.
There is a possibility that bolt d is loose while bolts a-c are loose,
also.
Left side
The front
(State to remove cover)
Left side and the rear side
Bolt c
Bolt d
Bolt b
Bolt a
0 deg
-90deg
Cover
+90deg
M5 bolts (four places)
M5 bolts
(four places respectively)
