Chapter 10 Operating Instructions
Flexi Classic Gateways
134 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8011834/YT28/2016-03-15
Subject to change without notice
PROFINET IO Gateway

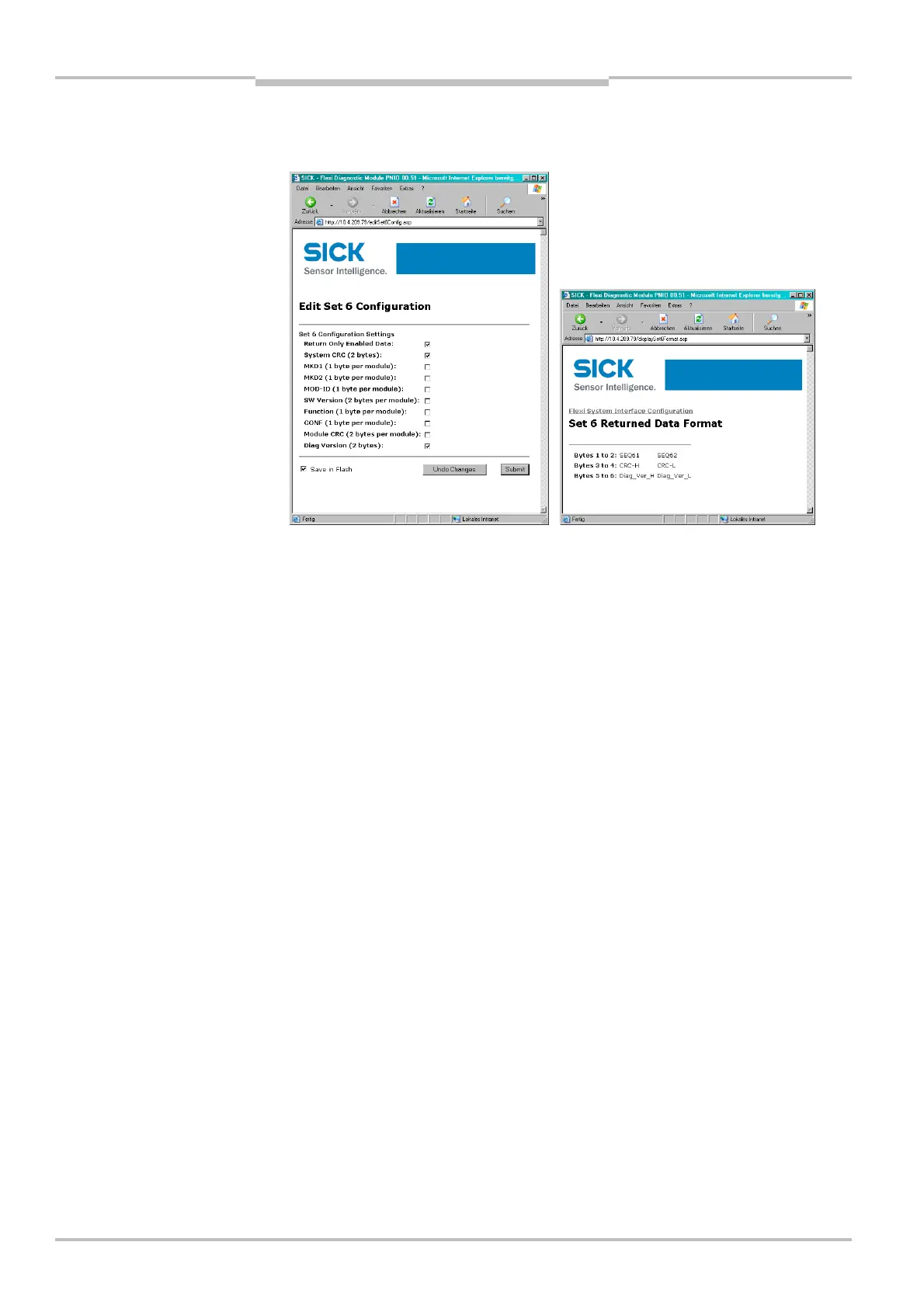

Select Return Only Enabled Data and click the desired parameters in the list if the
length of the data set shall be reduced to the effective data only. Example:
In order to use these settings temporarily do not check Save in Flash and click Submit.
In order to use these settings permanently, check Save in Flash and click Submit. The
configuration is then saved in the non-volatile memory of the UE410FEN and is still
available after the gateway has been restarted.
If the option Return Only Enabled Data is activated in the configuration of the data set,
the data set can have a different length depending on the compilation. The maximum
length is 124 bytes. The minimum length is 0 (no data selected). This must be taken
into account in regards to the size of the record read in the PLC.
The selected data are transferred for all Flexi Classic modules respectively. The data
are zeroed for modules that do not exist.
