PROFINET IO Gateway

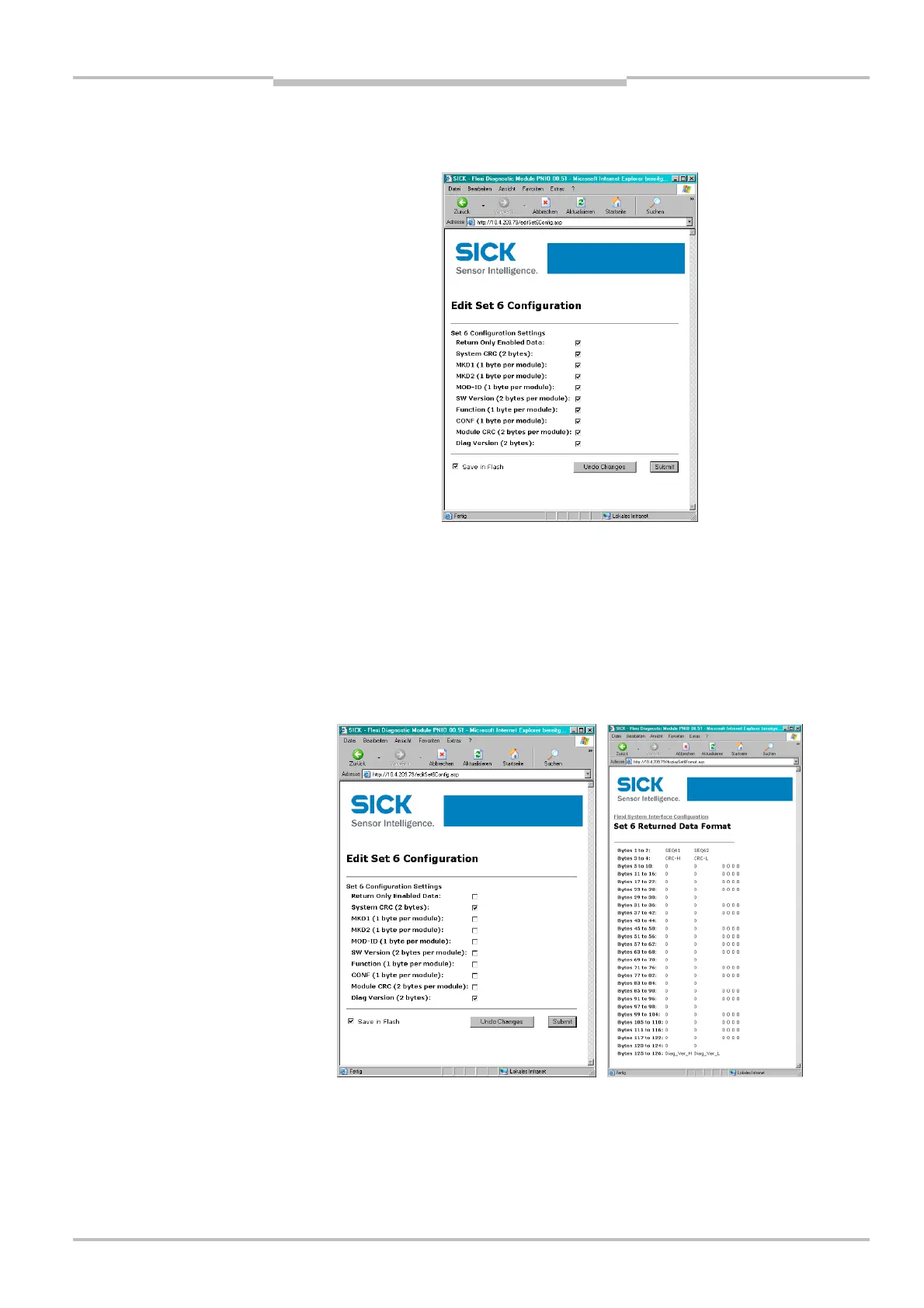

Click Configure Set 6 to compile the user defined data record. The following web page
is displayed:
Select the desired data by checking the checkboxes. For the exact description of the
data set please refer to the table below. If Return Only Enabled Data is not checked,
the data not selected will be set to zeros and the data set size will be 124 bytes.
In the standard setting, all parameters are available to the higher level PLC.
The current configuration of data set 6 can be displayed by clicking Display Set 6 Data
Format. Return to the previous page by using the browser’s Back button.
Example for the configuration and display:
