3 MAINTENANCE

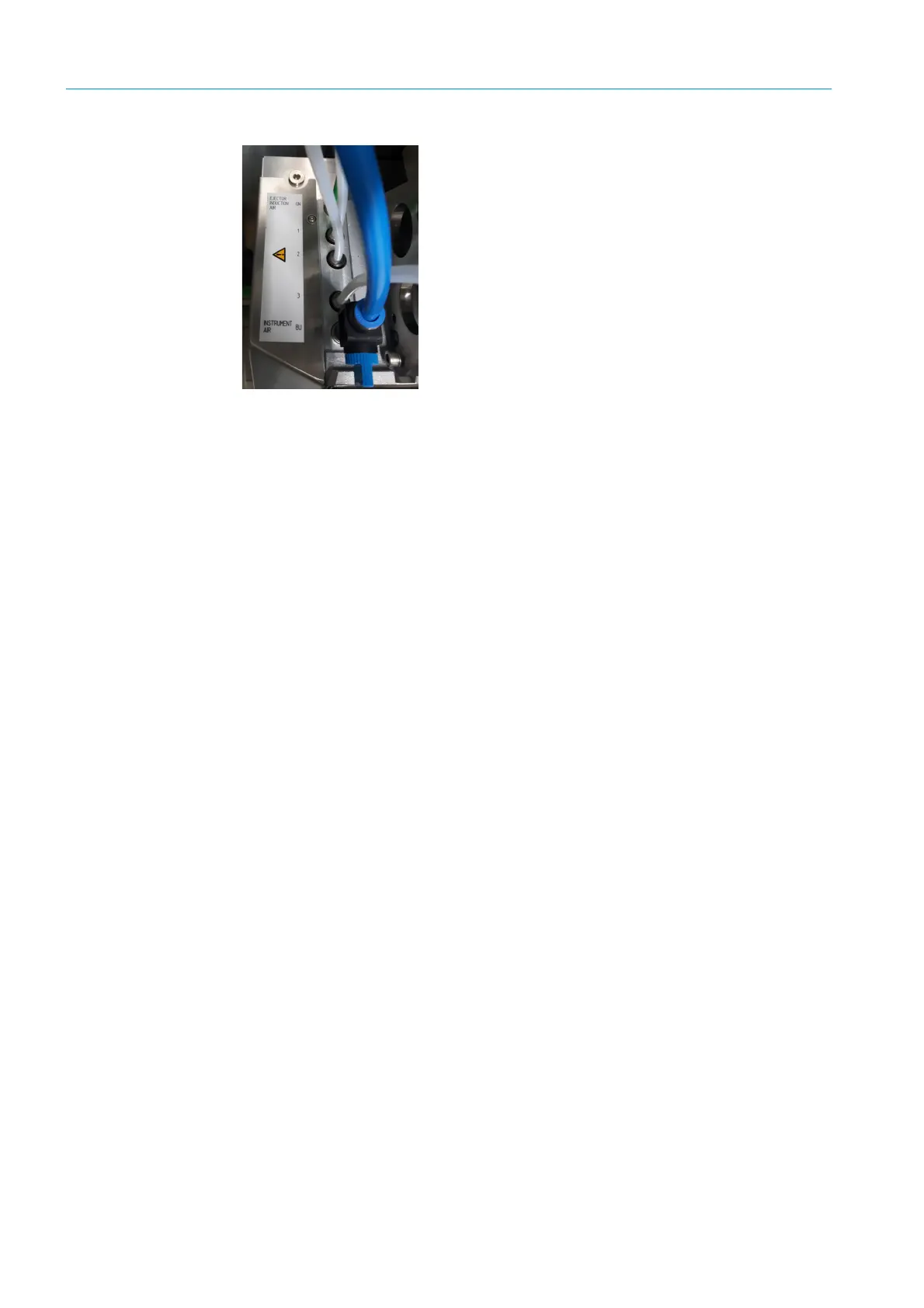

Fig. 14: Cell, hose slots
4 Connect the exhaust gas line to the ejector block (see Fig. 6 “Cell open”, page 16,
item number 1).
▸ Fasten the exhaust gas line to the cell with the fastening clip (see Fig. 6 “Cell open”,
page 16, item number 6).
5 Optional: Attach the test gas line to the 90-degree bracket (see Fig. 6 “Cell open”,
page 16, item number 5).
6 Connect heated sample gas lines 1 and 2 (optional) to the cell inlet filter (see Fig. 6
“Cell open”, page 16, item numbers 3 and 4).
5 Close the cell cover and screw tight (see Fig. 5 “Cell cover”, page 15).
