3 MAINTENANCE
.

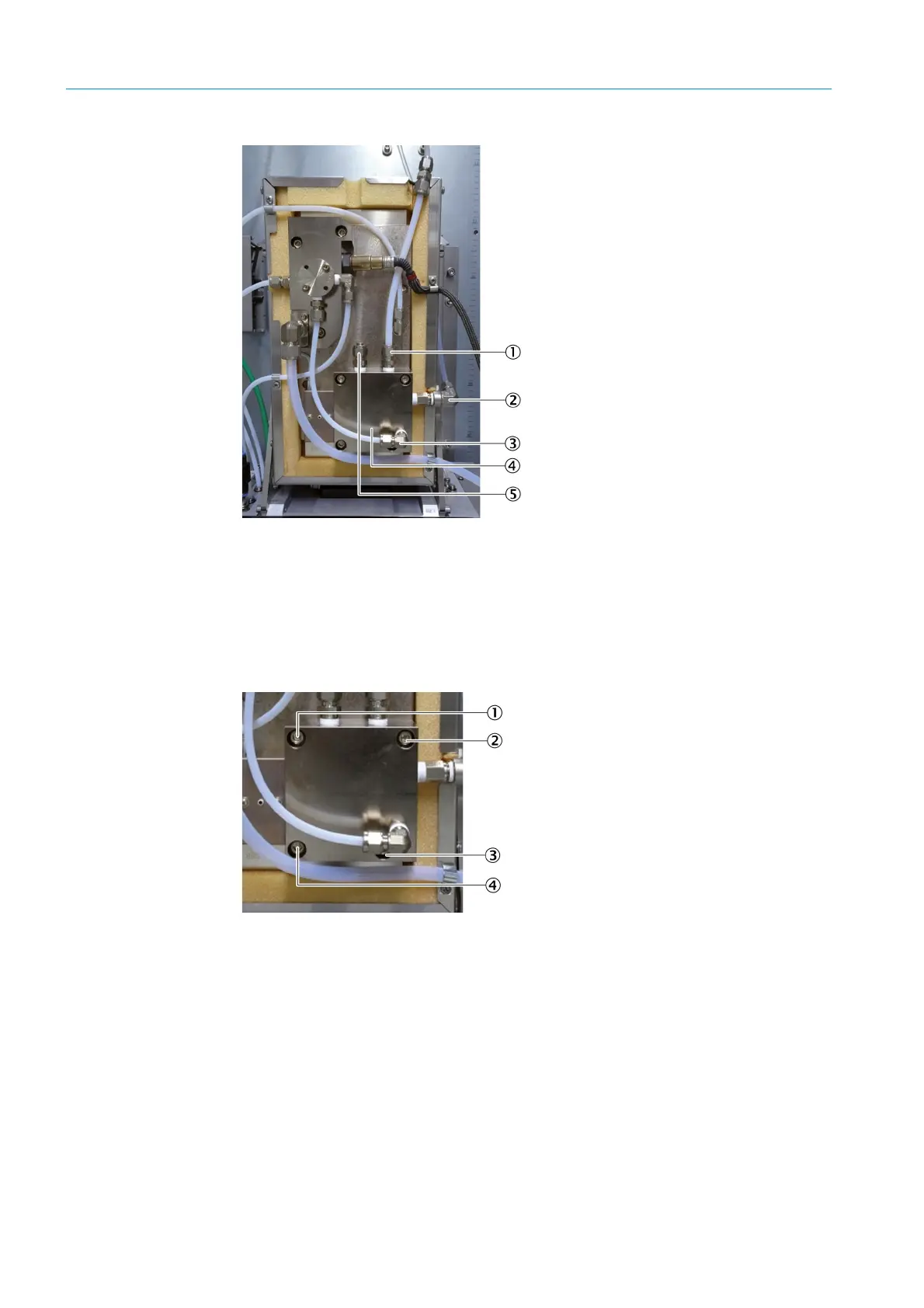

Fig. 15: Cell inlet filter, hose connections
6 Loosen the fastening screws on the cell inlet filter with a 5 mm Allen key (4 pieces).
.
Fig. 16: Cell inlet filter, fastening screws
7 Remove the cell inlet filter.
1 Heated sample gas line 1
2 Test gas connection with non-return valve
3 Hose connection to ejector block
4Cell inlet filter
5 Heated sample gas line 2 (optional)
1 to 4 Fastening screw
