SICK MCS200HW Service Manual

35
8024638/AE00/V1-0/2019-09| SICK S E R V I C E M A N U A L | MCS200HW
Subject to change without notice
MAINTENANCE 3
.

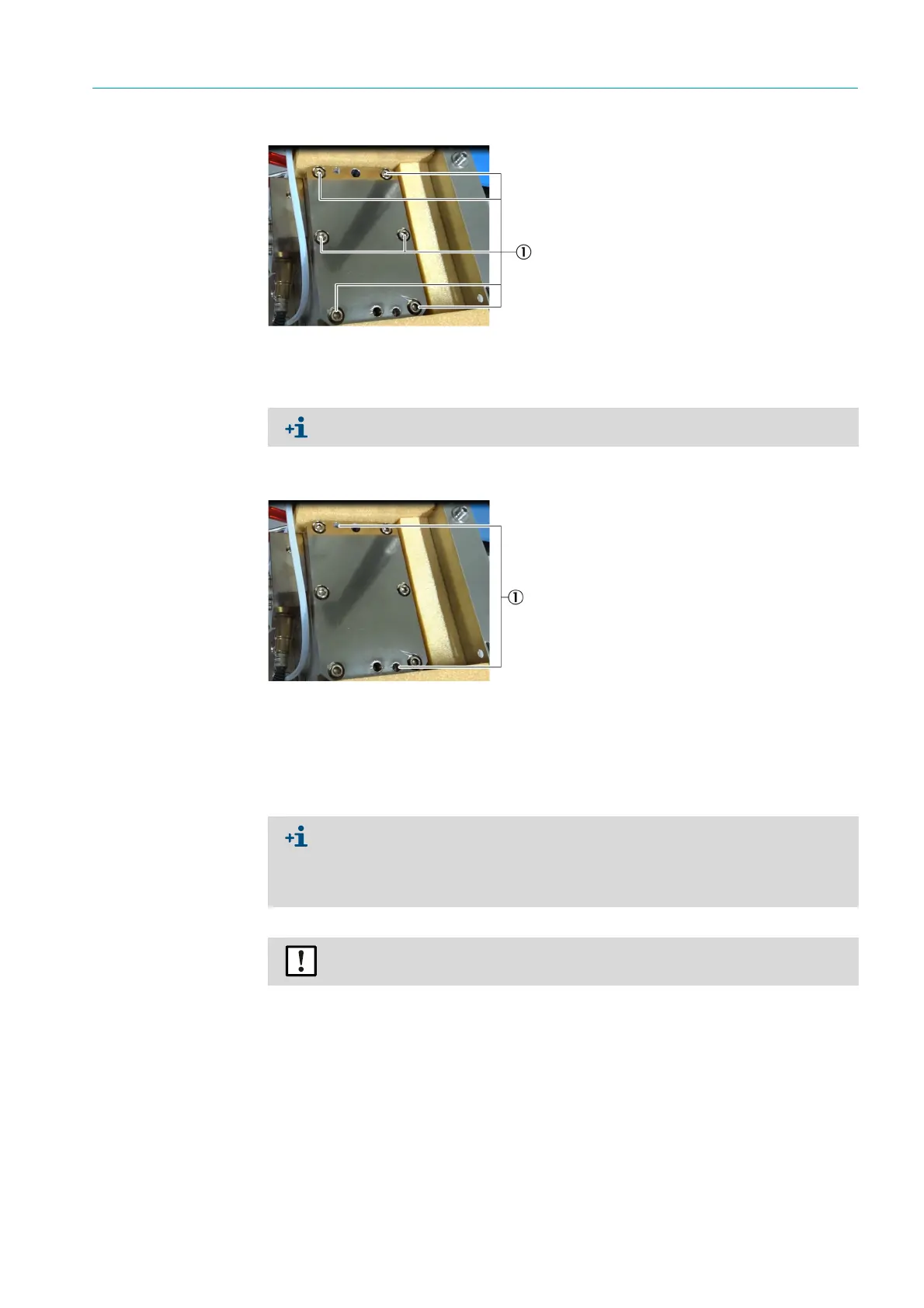

Fig. 39: Fastening screws, upper mirror plate
6 Lever out the mirror plate:
1 Screw the screws into the thread openings provided on the mirror plate (2 pieces).
Fig. 40: Thread openings, upper mirror plate
2 Tighten the fastening screws with a 5 mm Allen key.
▸ Tighten fastening screws parallel.
▸ Ensure the screws grip properly and avoid thread seizure.
7 Remove the upper mirror plate.
1Fastening screws
Keep screws, spring washers and washers for reassembly.
1Thread openings
Alternative:
– Unscrew and remove all cell covers (see Chapter “Removing the complete cell”,
page 65).
– Apply the flat side of a screwdriver to the side recesses of the mirror plate.
– Lever out the mirror plate.
NOTE: Material damage
Do not touch the coated surfaces of the mirror plates.
