5 REPAIRS

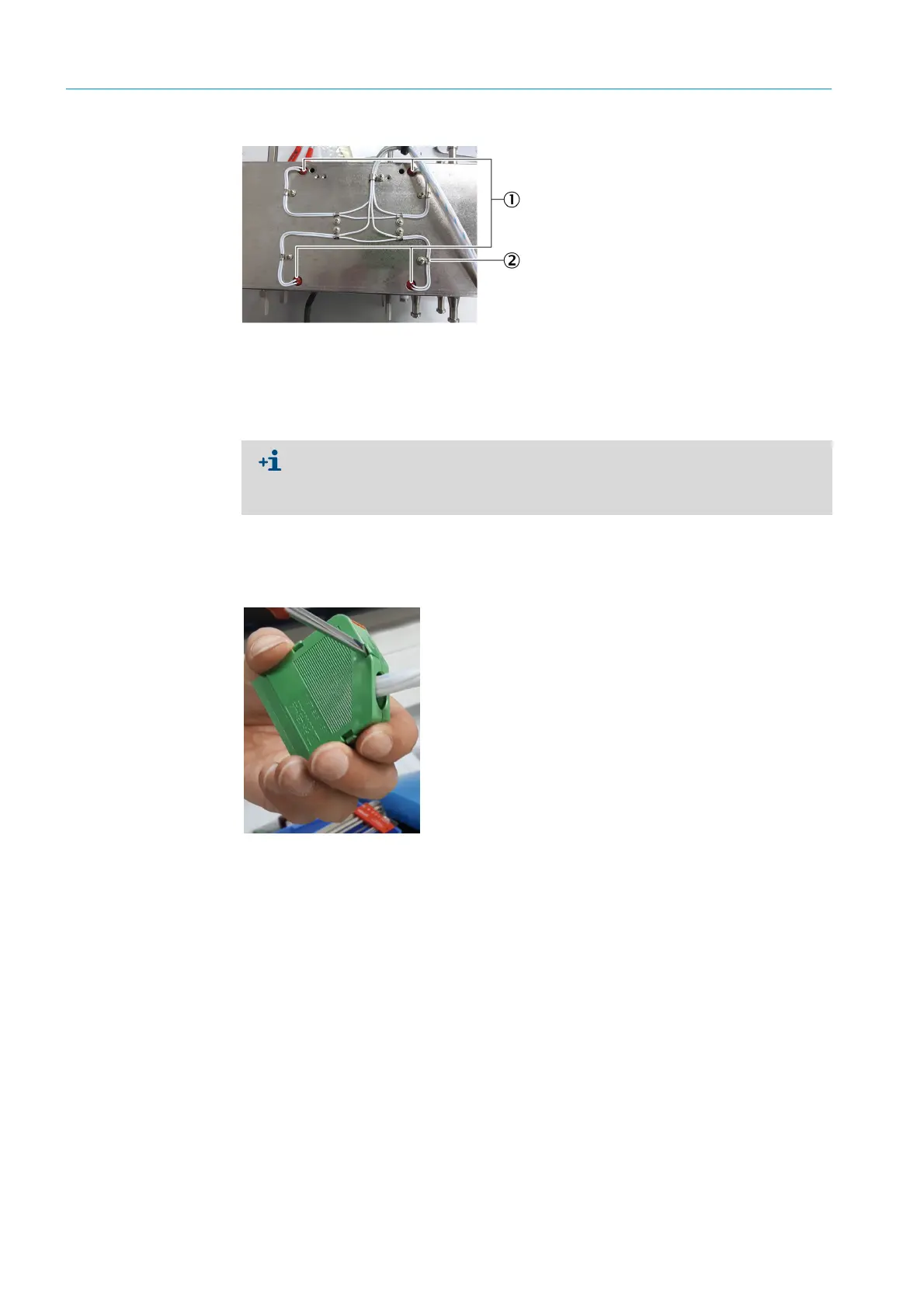

Fig. 112: Cell, rear side with heating cartridges
4 Remove heating cartridges (4 pieces).
5 Remove the heating cartridge cable from the cable conduit.
1 Open the contact plug:
▸ Carefully lever open the clamps of the contact plug with a slotted screwdriver
(3
pieces).
Fig. 113: Opening the contact plug
1Heating cartridge
2Fastening clip
If a heating cartridge is stuck, it can be pushed out from the other side, e.g. with a
screwdriver. Proceed as follows in this case:
▸ Remove the cell inlet filter (see Chapter “Cell inlet filter maintenance”, page 21).
▸ Remove the ejector block (see Chapter “Ejector block maintenance”, page 26).
