REPAIRS 5

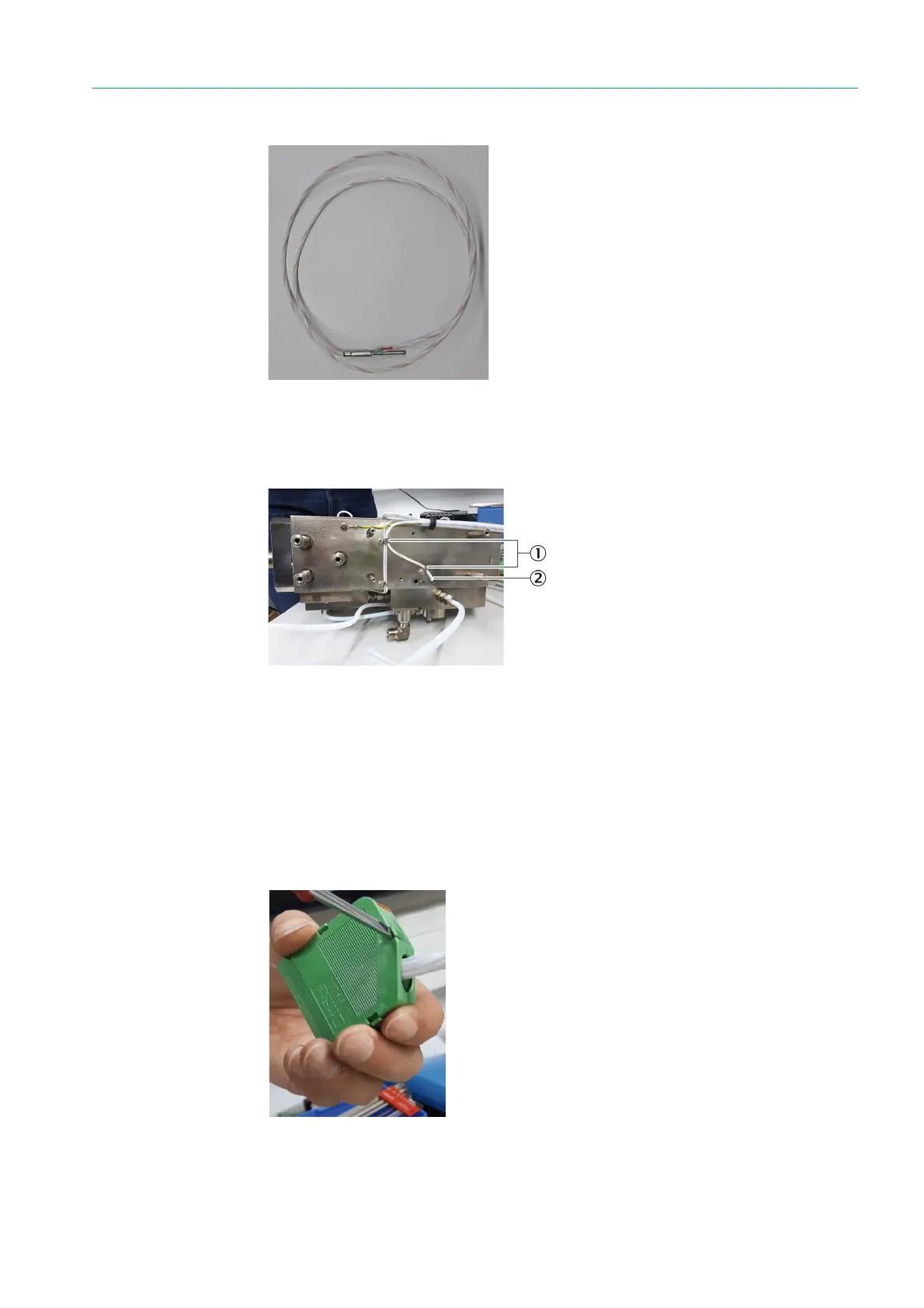

Fig. 117: PT100
1 Remove the complete cell (see Chapter “Removing the complete cell”, page 65).
2 Place the cell down with the rear side upwards.
>>> The side with the cell inlet filter and ejector is at the bottom.
Fig. 118: Cell, overview, left
3 Loosen the fastening clips with a Phillips screwdriver (2 pieces).
4 Remove the PT100.
5 Remove the PT100 cable from the cable conduit.
1 Open the contact plug.
▸ Carefully lever open the clamps of the contact plug with a slotted screwdriver
(3
pieces).
Fig. 119: Opening the contact plug
1Fastening clips
2 PT100
