Overview
1.2 Design of the Mobile Panels
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
15

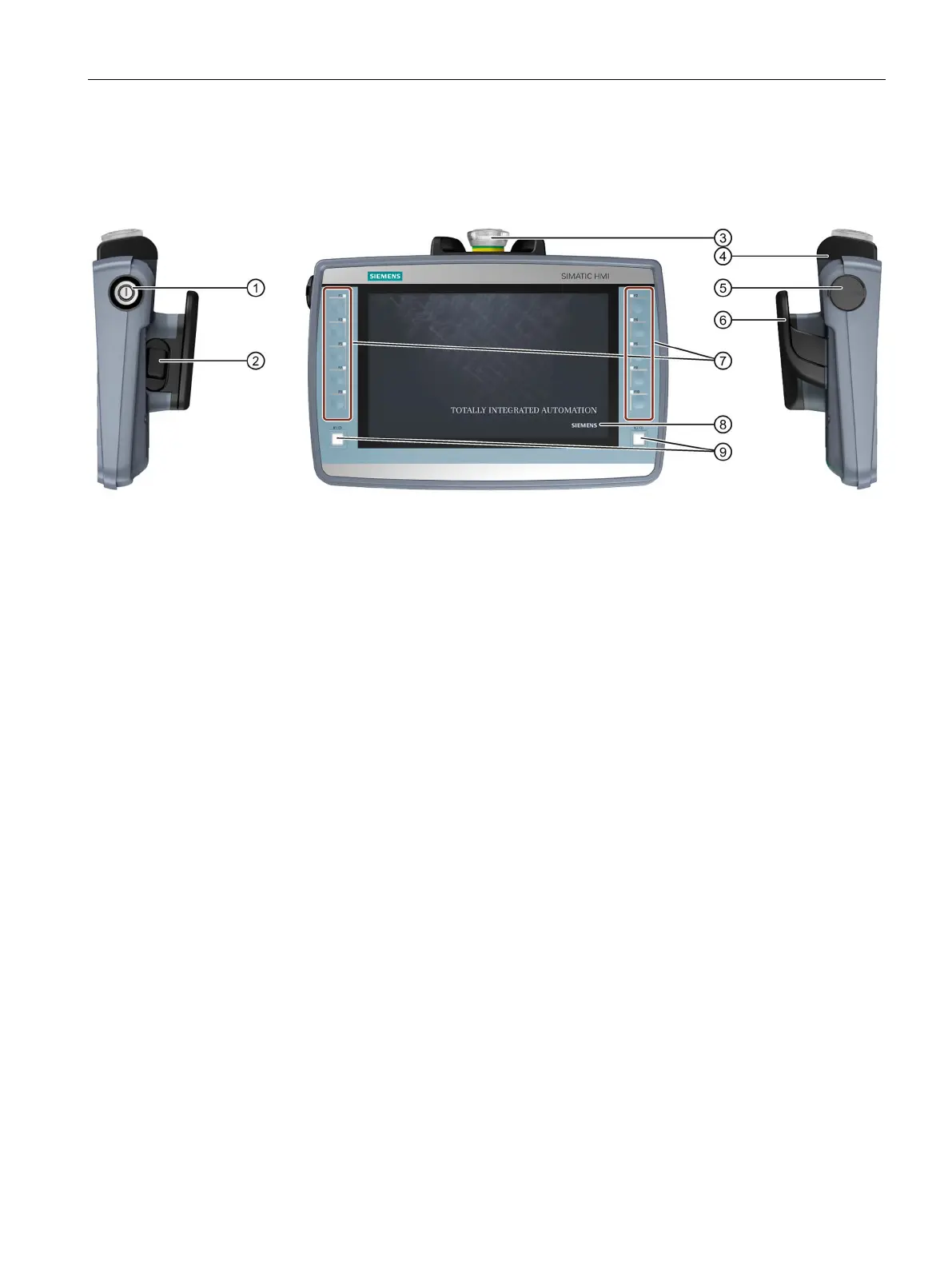

Front and side views
The figures below show an example of the design of the fail-safe HMI device, KTP900F
Mobile. The other HMI devices of the type KTP Mobile are constructed similarly.
①
Keyswitch, only for KTP700F Mobile and KTP900F Mobile
②
Enabling button, for fail-safe Mobile Panel
③
Emergency stop / stop switch for fail-safe Mobile Panel
④
Drop protection for emergency stop / stop switch for fail-safe Mobile Panel
⑤
Cover of the USB port
⑥
Handle
⑦
Function key blocks
⑧
Display with touch screen
⑨
Illuminated pushbutton
The position of the emergency stop/stop button makes it easily accessible. Due to its profiled
design, the emergency stop/stop button is easily accessible. Two bumpers protect the
emergency stop / stop button against impact damage, for example, if it falls. The bumpers
are dimensioned so that the emergency stop / stop button can be activated during an impact.
The operator controls are described in the section "Handling the Mobile Panel (Page 77)".
