Overview
1.2 Design of the Mobile Panels
Mobile Panels 2nd Generation
16 Operating Instructions, 09/2018, A5E33876626-AC
Rear view and interfaces

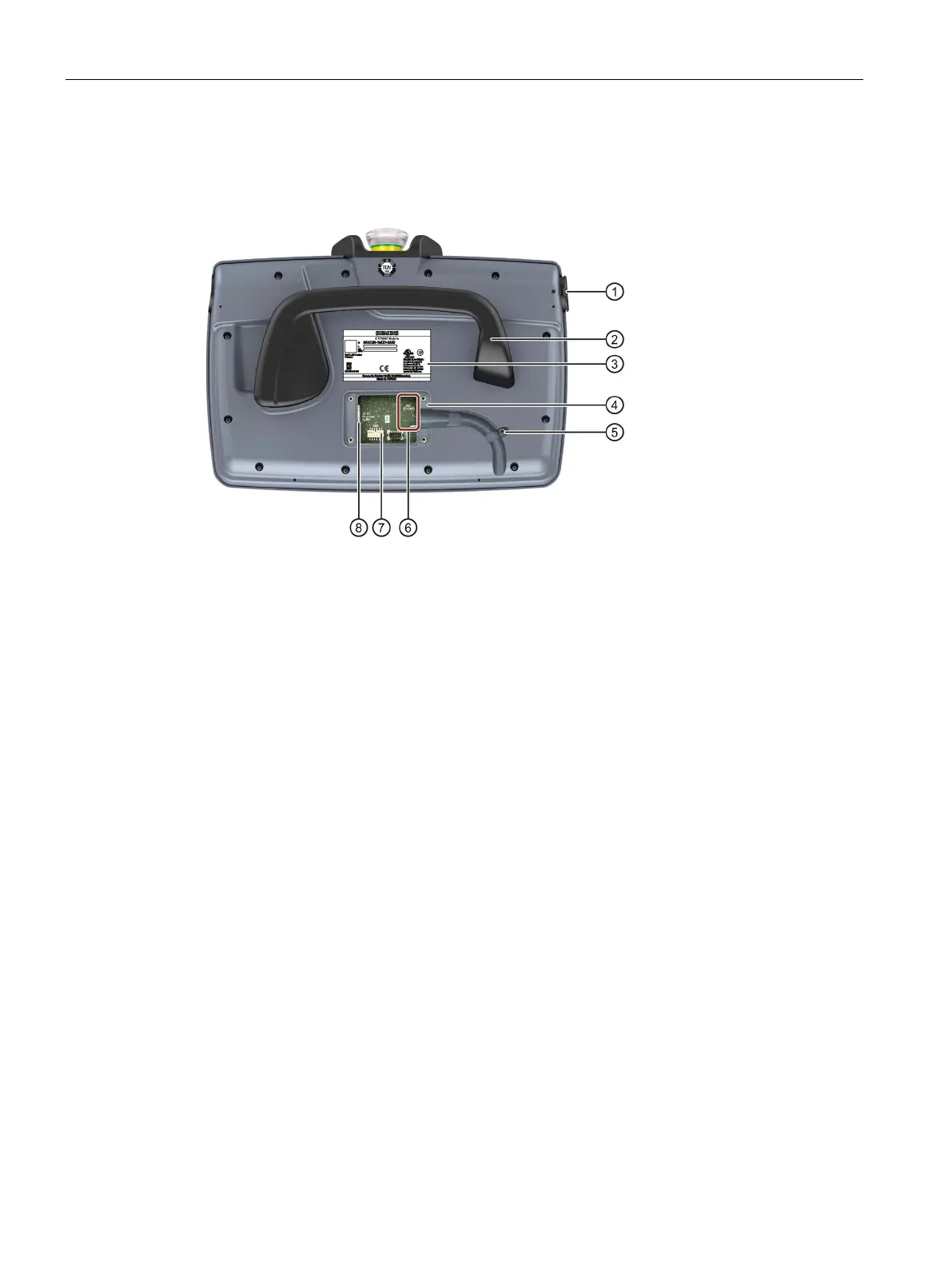

The figure below shows an example of the design of the fail-safe HMI device, KTP900F
Mobile. The other HMI devices of the type KTP Mobile are constructed similarly.
①
USB port with cover
⑤
Threaded sleeve for mounting screw of the cable retainer,
not for KTP400F Mobile
②
Handle
⑥
Slot for an SD memory card, not for KTP400F Mobile
③
Nameplate
⑦
12-pin connector for the connecting cable
④
Terminal compartment
⑧
RJ45 socket PROFINET (LAN)
