Parameterizing the Mobile Panel
5.15 Functions for service and commissioning
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
163
● For controllers, the following applies:
– The controller is of type S7-1200 or S7-1500.
– HMI access is allowed in the settings.
– The controller is in "STOP" state.
● Your system administrator has provided you with the necessary information.
Procedure
The communication connection can only be configured for S7-1200 and S7-1500 controllers.
1. Open the "Service & Commissioning" dialog using the "Service & Commissioning" icon.
2. Change to the "IP Config" tab.

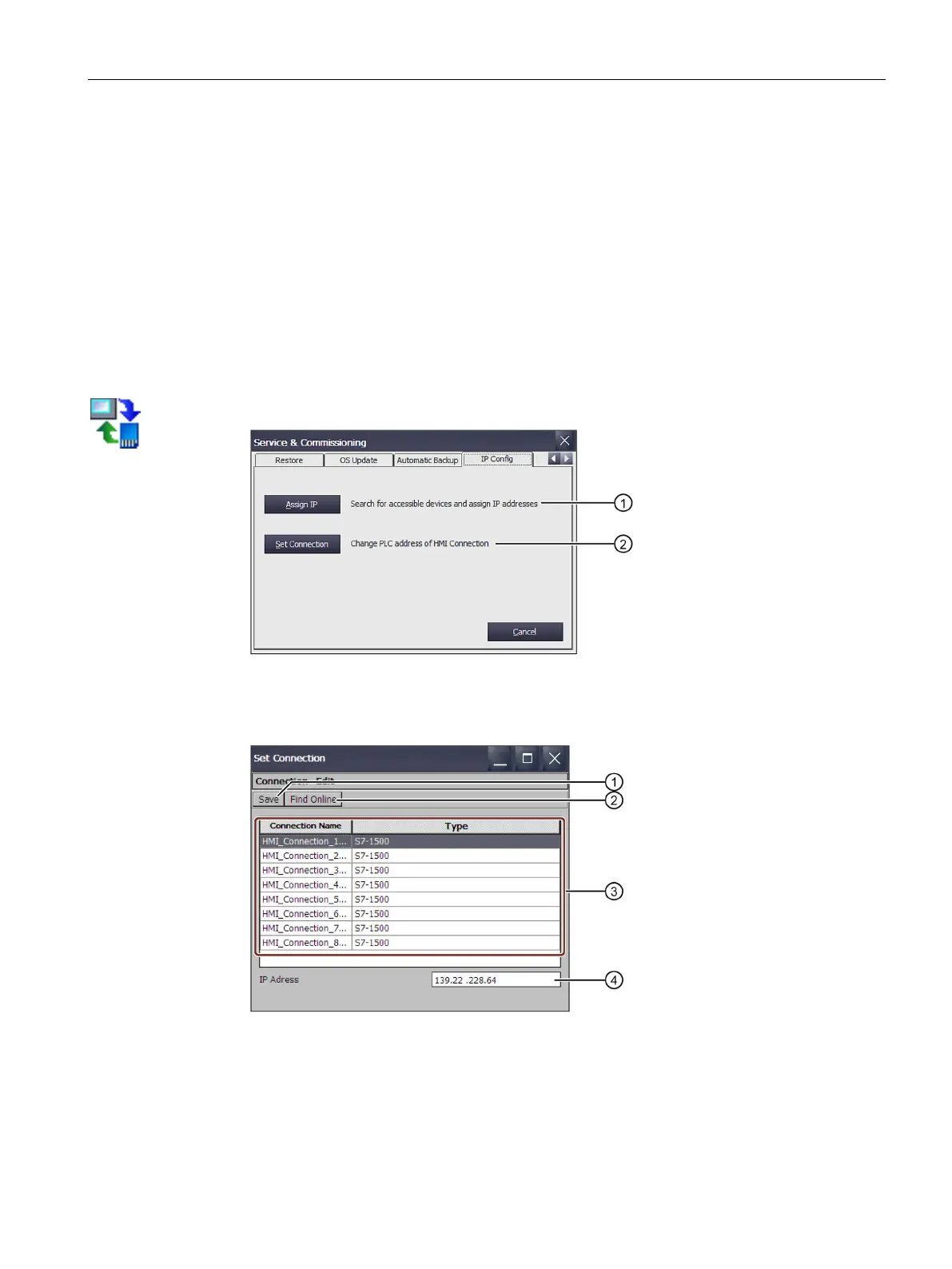

Button for changing IP address and device name
Button for changing the configured communication connections
3. Open the "Set Connection" dialog using the "Set Connection" button.
Selected communication connection
List of configured communication connections
Text box for the IP address
