Configuring the Mobile Panel
6.1 Configuration in WinCC
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
173
7. Select the "Manual assignment of F-monitoring time" check box and enter the following
values at the indicated locations.
– "F-monitoring time": Enter the monitoring time for the PROFIsafe driver. The default
value is 500 ms. This value can be optimized depending on the number of devices to
be monitored.
– "F-destination address": This value must match the PROFIsafe address of the HMI
device, see section "Setting the PROFIsafe address (Page 129)". The value must be
unique within the PROFINET network.

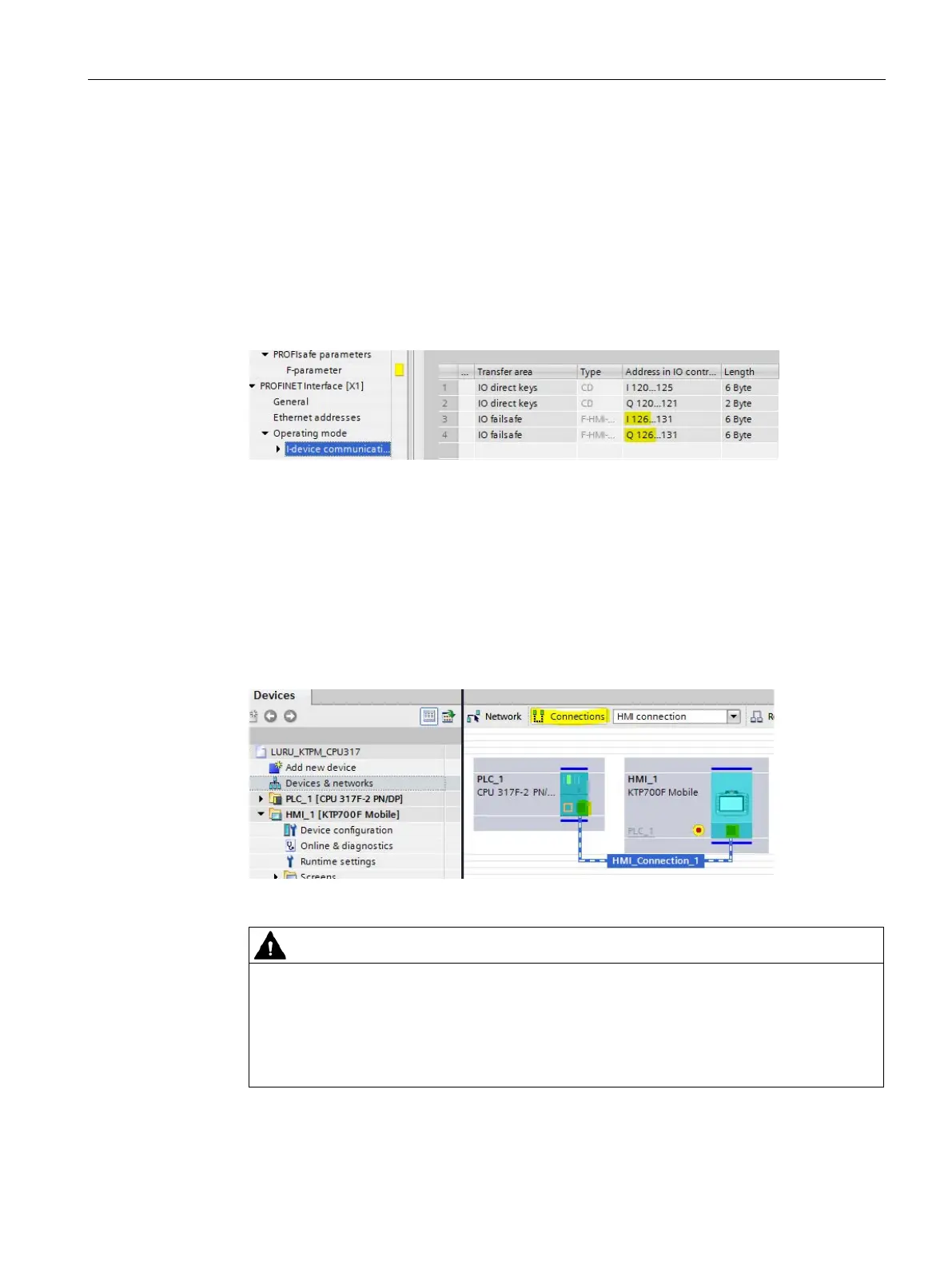

8. Select "PROFINET interface [X1] > Operating mode > I-device communication".
This area now shows the input and output addresses, which are to be used later when
configuring the F-FBs for the fail-safe HMI device.
9. Configure the PROFIsafe connection as follows:
– Double-click "Devices and Networks" and select the graphical connection between the
HMI device and controller, in the example "PN/IE_1".
– Click on "Connections" and select "Edit connections" in the shortcut menu of the HMI
device.
– Select the controller and confirm by pressing the "Add" button.
The graphical connection is highlighted in the editor.
10. Configure a message window.
Safety-related messages not visible without message window
If no message window is configured, safety-related messages cannot be displayed,
which may result in personal injury or material damage.
Configure a message window for display of messages of the "Safety warnings"
message class. You can find a description in the online help for WinCC (TIA Portal).
11. Compile the project by right-clicking on the HMI device using
"Compile > Software (rebuild all)"
