8.5 Bulk Engineering
8.5.1 PCS 7 Advanced Engineering
Introduction

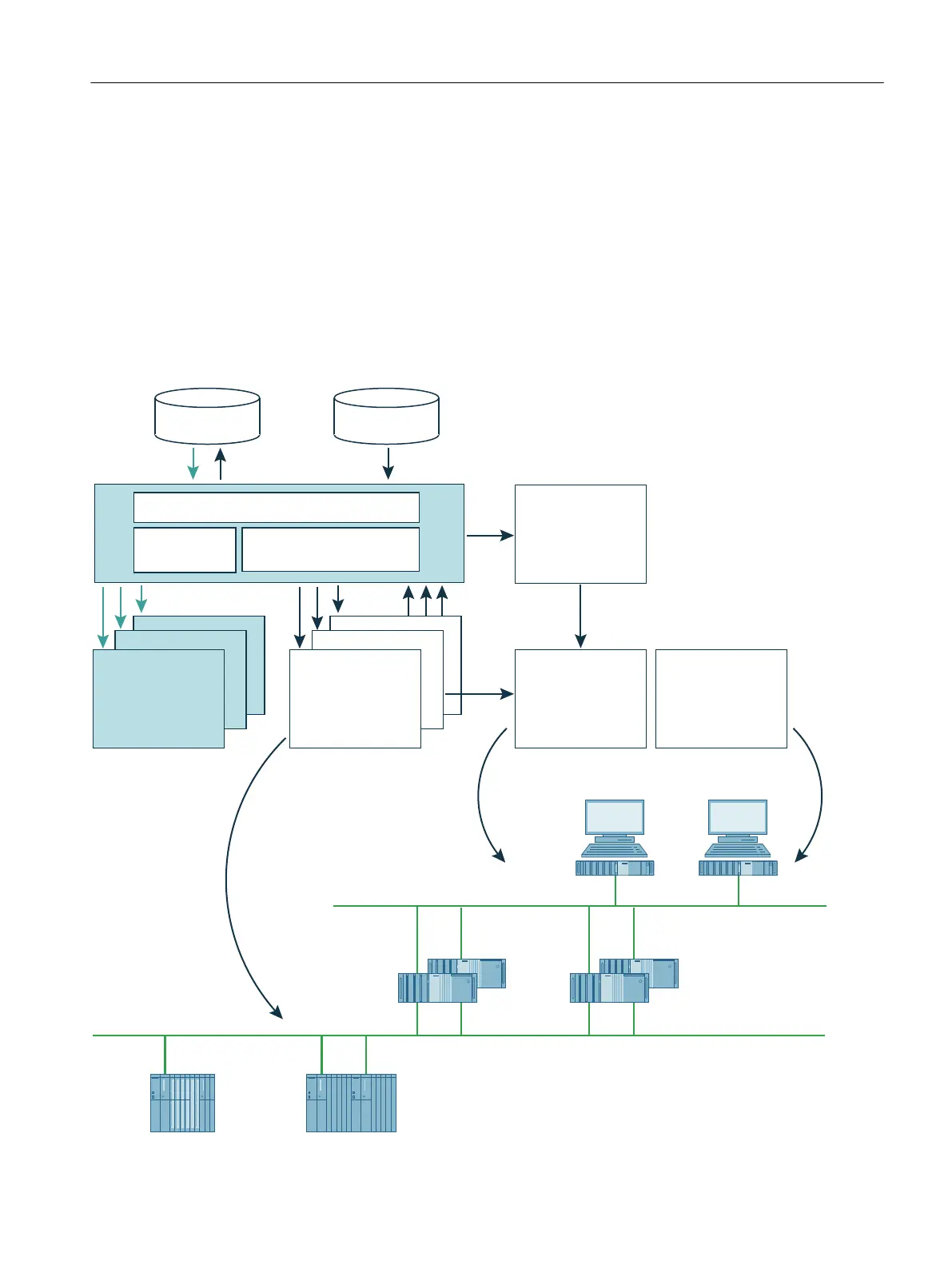

Advanced Engineering combines the tools from the basic and detailed planning, e.g. EPlan,
ELCAD and SmartPlant, with those in PCS 7 Engineering (CFC, HW Config, Plant Hierarchy).
Terminal bus
Plant bus
Master Data Library
Any CMT with
instances
Derived
Process
Tags
HW Config OS
compile
OS
pictures
Basis: All CMT
OS ServerOS Server
OS Client OS Client
AS
AS
CAx
Operator
System
Advanced ES
TH
TH
Controller
Configuring AS functions
