Note
In this plant configuration, the OS must be configured as a single station system. You make
this setting when creating the project in the SIMATIC Manager, using the "New Project" PCS
7 wizard.

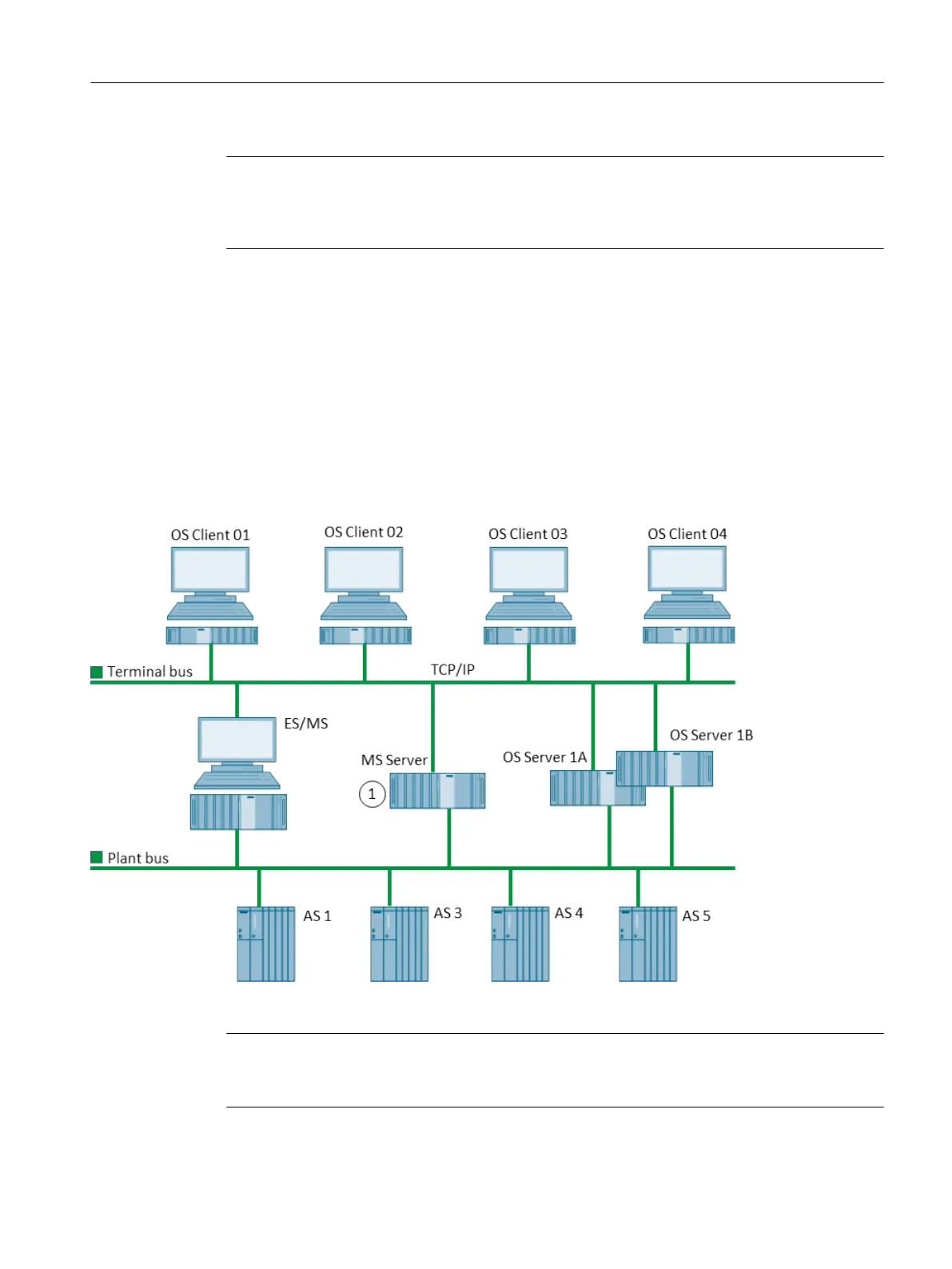

12.1.3 Multiple station system with MS client on the ES
Introduction
The MS client runs directly on the master ES. The current multiproject is stored here. The MS
server can be installed on an existing OS server or on a separate computer depending on the
size of the plant. The MS server can be configured redundantly. You can provide one MS
server for each multiproject. All components in the multiproject is monitored by this server.
① Network card with TCP/IP connection to the plant bus for monitoring via SNMP
Note
SIMATIC PDM access is gained from SIMATIC PDM V8.2 in connection with PCS 7 V8.1
through a PDM web server. This enables access to a selected field device from any OS client.
Integrated asset management
12.1 Configurations with Maintenance Station
Compendium Part A - Configuration Guidelines (V8.2)
Configuration Manual, 08/2016, A5E38166869-AA 295
