Filter function of the process object view

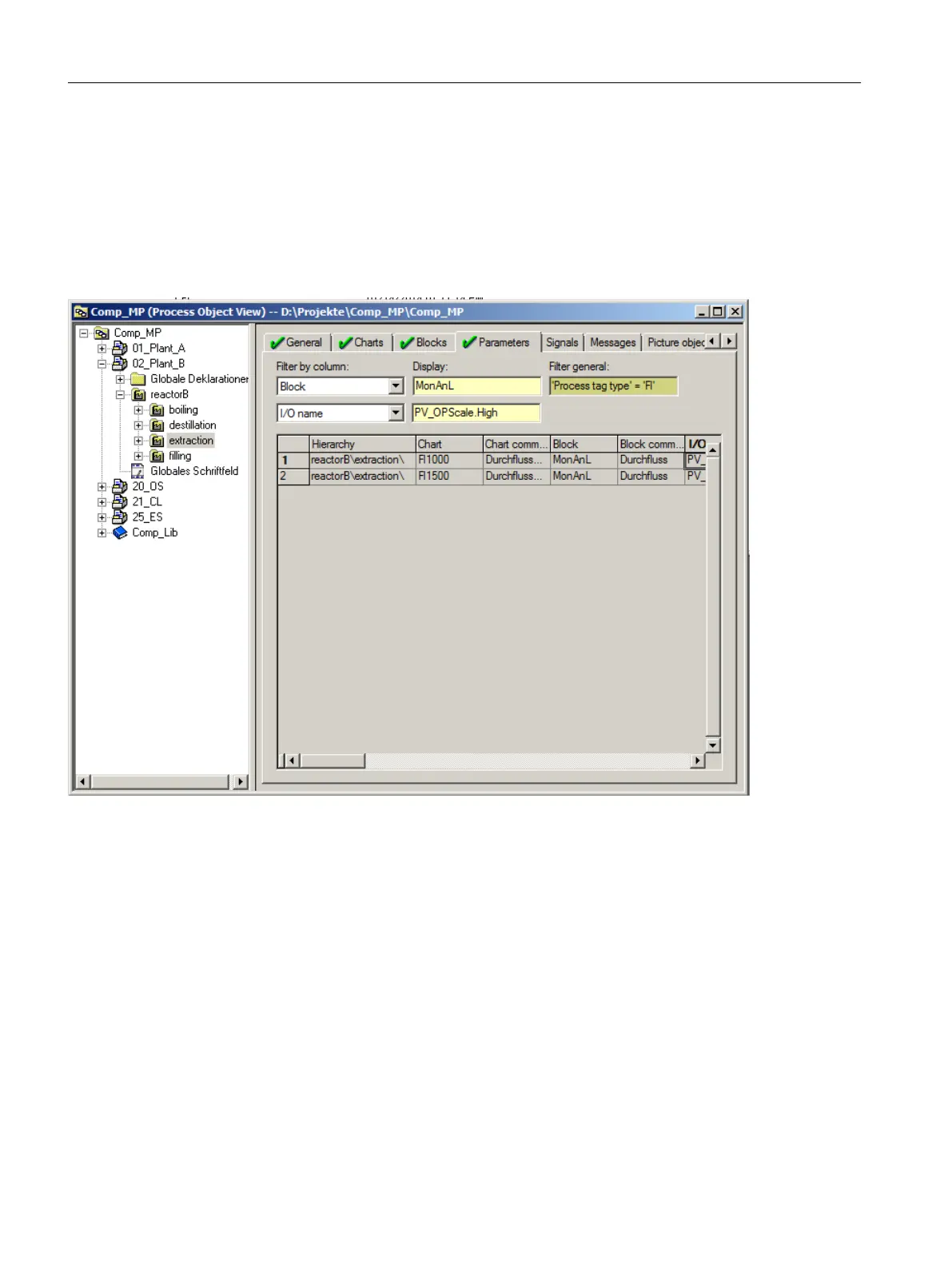

Filtering in the process object view is a comprehensive tool. A filter with a variety of criteria is
shown here as an example:
● Process tag type "FI" (flow measurements)
● Blocks of type "MonAnL"
● "PV_OPScale.High" connections (measuring range high limit for the faceplate bar graph)
Values can be easily selected, checked, and modified using the different filter functions
"General", "Block", and "I/O".
In PCS 7 version V8.1, the process object view has been supplemented with the "Charts" tab.
All charts contained in the multiproject, including charts without PH assignment, are shown in
this tab. This enables charts to found quickly and simply. Switching from one project to another
is not necessary, since all charts are displayed in one tab.
The relevant chart can be selected using a filter and opened directly from the process object
view. Furthermore, the assignment of charts to an AS is visible immediately.
Configuring AS functions
8.6 Managing process tag types with the process object view
Compendium Part A - Configuration Guidelines (V8.2)
180 Configuration Manual, 08/2016, A5E38166869-AA
