"Migration to chart-based insertion" function
From PCS 7 V8.2, the function "Migration to chart-based insertion" is available. This function
allows you to automatically change existing CFC charts, whose blocks are not contained in
chart-based runtime groups in the OB 100, to chart-based administration. I.e., the blocks of a
CFC chart are automatically inserted in new, chart-related runtime groups. The chart-related
runtime groups receive the same names as the corresponding CFC charts and a serial number,
if required.
You can find further information in FAQ "How do you use the "Selective Download" function
in migrated PCS 7 projects?" (
https://support.industry.siemens.com/cs/ww/en/view/
109478772).

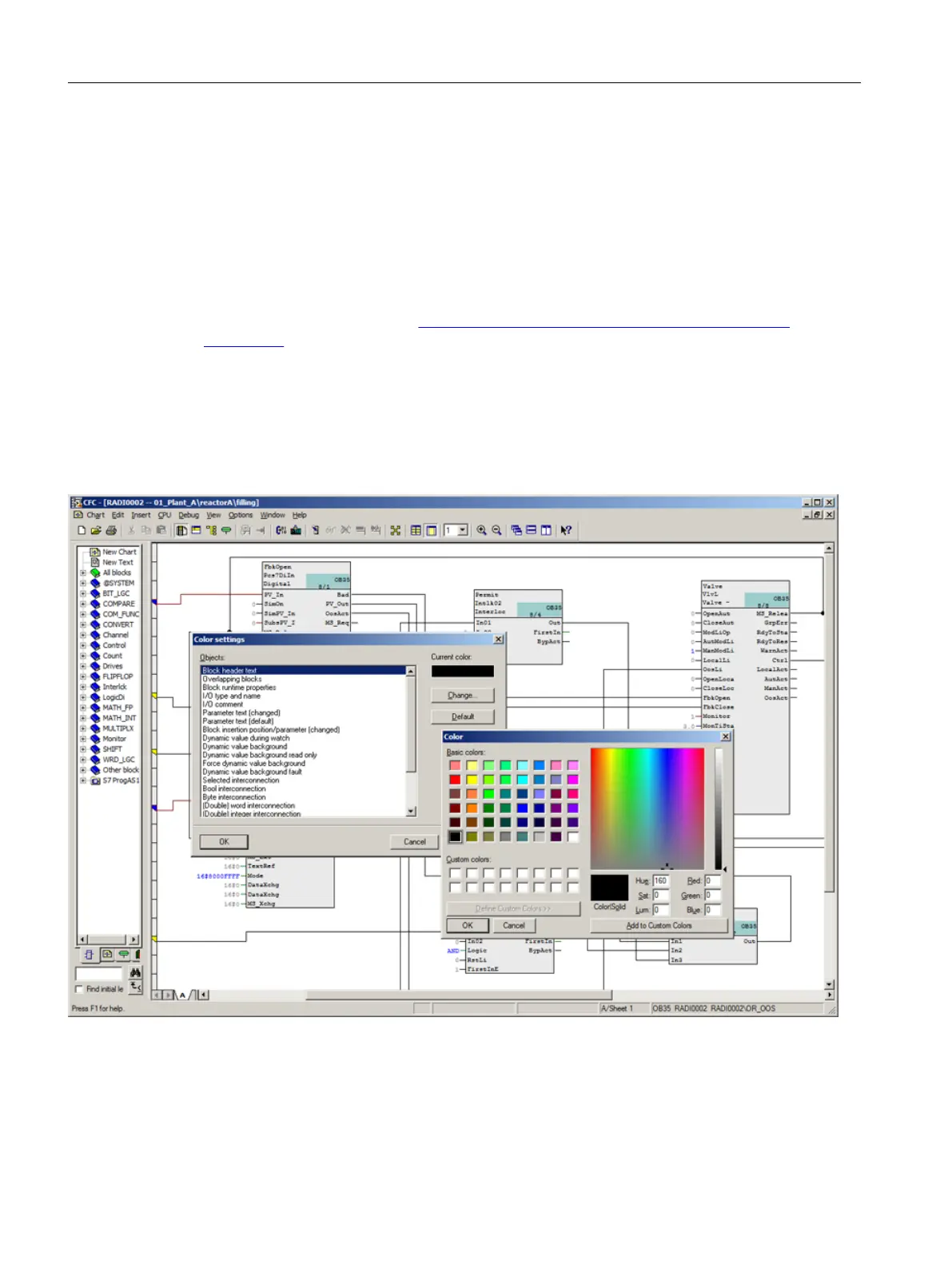

Color representation of a block or chart I/O
If a block or chart I/O has been changed, for example, due to configuration or interconnection,
this status is indicated by a colored representation of this I/O. The color representation can be
changed through the system function "Extras -> Settings -> Colors".
Compiling and downloading
9.3 Selective download
Compendium Part A - Configuration Guidelines (V8.2)
194 Configuration Manual, 08/2016, A5E38166869-AA
