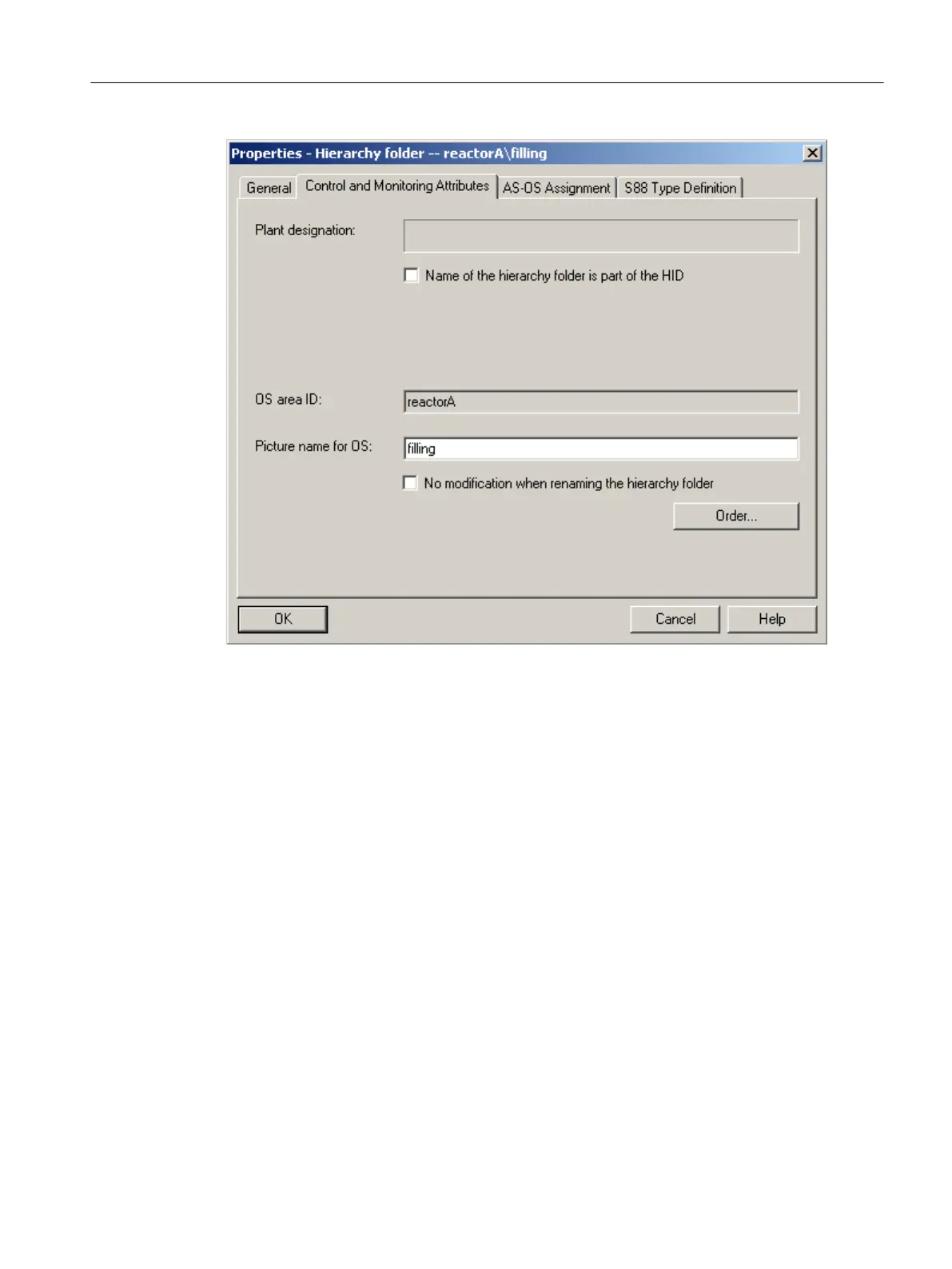

The picture hierarchy (Picture Tree) is automatically generated during OS compilation in
accordance with the plant hierarchy settings in the SIMATIC Manager.
Configuring OS functions
10.2 Visualization interface
Compendium Part A - Configuration Guidelines (V8.2)
Configuration Manual, 08/2016, A5E38166869-AA 225
