Operation list Displays all operator messages (e.g. "A controller setpoint is set to xxx.")
Journal list Displays all messages (incoming, acknowledged, and outgoing messages)
Hidden alarm list Displays all active, manually hidden, and automatically hidden messages.
List of messages to be
hidden
Display of all event messages which are hidden when they occur.
Lock list Displays all messages that are locked
Note
The list of hidden messages and the list of messages to hide are available as of PCS 7 V7.0.
Interrupt controls
The message lists are displayed via interrupt controls, which can be modified in the Graphics
Designer.
Double-click on an interrupt control in the Graphics Designer to open the configuration dialog
for message blocks/columns.

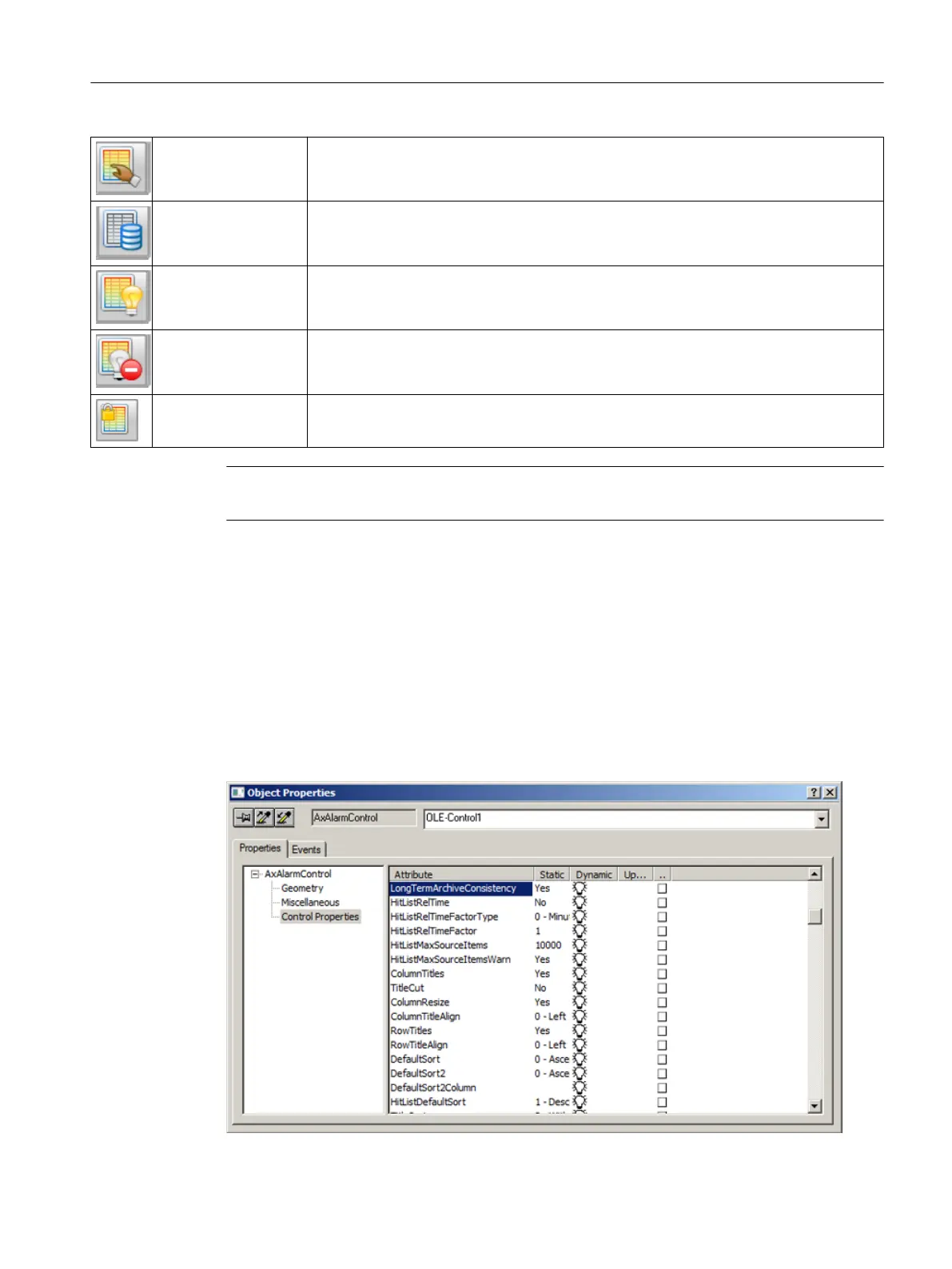

Right-click to access the properties dialog, Where the “LongTermArchiveConsistency" attribute
can be used to configure characteristics in terms of the number of messages displayed per
OS server.
Configuring OS functions
10.3 Message system
Compendium Part A - Configuration Guidelines (V8.2)
Configuration Manual, 08/2016, A5E38166869-AA 243
