NC active data
Global user data (%_N_COMPLETE_GUD_INI)
Channel user data (%_N_CH_GUD_INI)
User data, channel 1 (%_N_CH1_GUD_INI)
User data 1, channel 1 (%_N_CH1_GD1_GUD_INI)
:
:
Channel user data, complete (%_N_CH_GUD_INI)
User data 2, channel 1 (%_N_CH1_GD2_GUD_INI)
User data, complete, channel 1 (%_N_CH1_GUD_INI)
User data, complete (%_N_COMPLETE_GUD_INI)
NC user data (%_N_NC_GUD_INI)
NC user data 1, channel 1 (%_N_NC_GD1_GUD_INI)
:
:
NC user data, complete (%_N_NC_GUD_INI)
NC user data 2, channel 1 (%_N_NC_GD2_GUD_INI)
NC user data 9, channel 1 (%_N_NC_GD9_GUD_INI)
User data 9, channel 1 (%_N_CH1_GD9_GUD_INI)
The middle part of the file header, which is transmitted with the file output, ap-
pears at the top of the display in the program/data area: \_
_NC_ACT\GUD.DIR

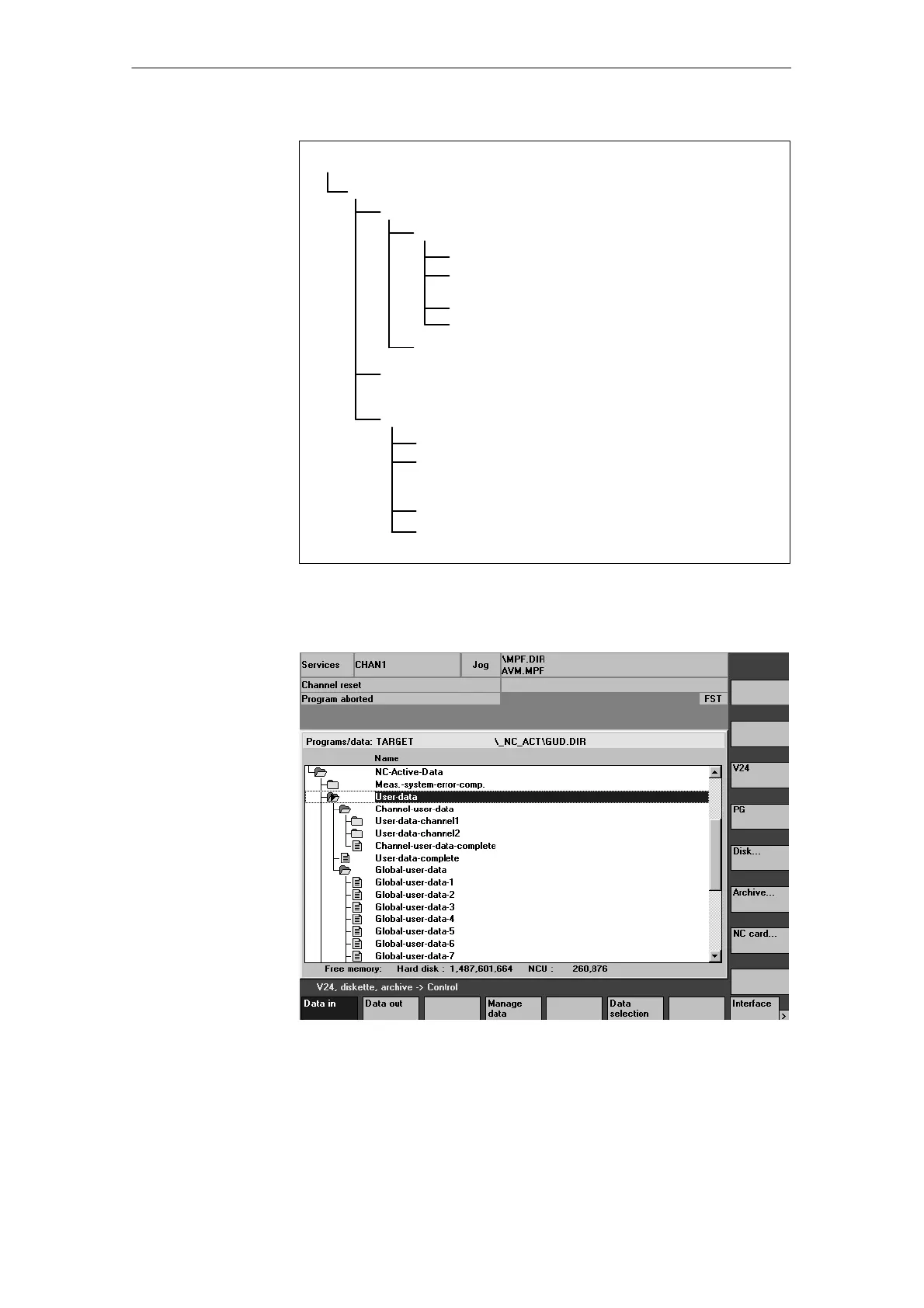

Fig. 11-4 Example for global user data
