Description Of Specific Functions
127
V800 Series High Performance Closed-Loop Vector Inverter User Manual
F1.2.18 Torque boost motor 1
Setting range: 0.0~20.0%
Factory default:
It is used to improve the inverters low frequency torque characteristics. When the inverter runs at low
frequency, it will make compensation for the inverter's output voltage. Its set value is the percentage relative
to the motor’s reference voltage [F1.2.16]. See Figure 7-27-A and Figure 7-27-B.
F1.2.19 V/F curve 1
st
frequency
motor 1
Setting range: 0.0~[F0.1.21]
Factory default: 0.0
F1.2.20 V/F curve 1
st
voltage of
motor 1
Setting range: 0~500V
Factory default: 0.0
F1.2.21 V/F curve 2
nd
frequency
motor 1
Setting range: 0.0~[F0.1.21]
Factory default: 0.0
F1.2.22 V/F curve 2
nd
voltage of
motor 1
Setting range: 0~500V
Factory default: 0.0
F1.2.23 V/F curve 3
rd
frequency
motor 1
Setting range: 0.0~[F0.1.21]
Factory default: 0.0
F1.2.24 V/F curve 3
rd
voltage of
motor 1
Setting range: 0~500V
Factory default: 0.0
This group of parameters is used to flexibly set V/F curve desired by users, as shown in Figure 7-28.

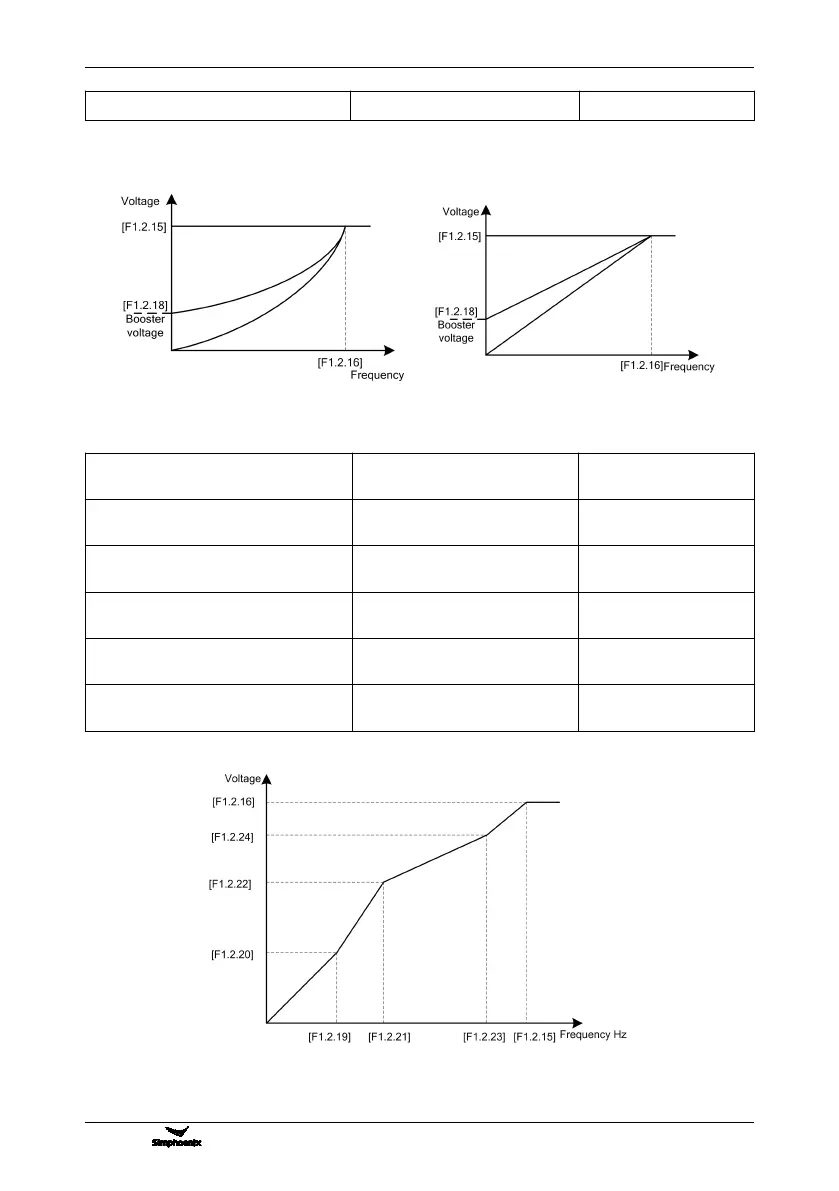

Figure 7-27-A Sketch of torque
booster for descending torque curve
Figure 7-28 V/F customized curve
Figure 7-27-B Sketch of torque
booster for constant torque curve
