6.2.56 TERMINAL STATUS AND VARIABLE
Function
Code
Name
Setting Range and
Description
Minimu
m Unit
Factory
Default
Change
Limit
d1.0.00
Terminal input (DI1~DI10)
Segment marker
-
-
R
d1.0.01
Terminal input (EDI1~EDI10)
Segment marker
-
-
R
d1.0.02
Pulse input (Fin)
0.0~100.00KHz
0.01
R
d1.0.03
Analog input AI1
0.00~10.00V
0.01
R
d1.0.04
Analog input AI2
0.00~20.00mA
0.01
R
d1.0.05
Analog input AI3
-10.00~10.00V
0.01
R
d1.0.06
Digital signal output (DO1~DO4,
EDO1~ EDO6)
Segment marker
-
-
R
d1.0.07
Relay contact output (RO1~RO4,
ERO1~ERO6)
Segment marker
-
-
R
d1.0.08
Frequency output Fout (indicating
the duty ratio in the case of PWM
signal output)
0.0~100.0KHz
0.01
R
d1.0.09
Analog output AO1
0.00~10.00V
0.01
R
d1.0.10
Analog output AO2
0.00~10.00V
0.01
R
6.2.57 COUNTER TIMER VALUE
Function
Code
Name
Setting Range and Description
Minimu
m Unit
Factory
Default
Change
Limit
d1.1.11
Counter 1 current value
0~65535
1
R
d1.1.12
Counter 2 current value
0~65535
1
R
d1.1.13
Timer 1 current value
0~65535
1
R
d1.1.14
Timer 2 current value
0~65535
1
R
d1.1.15
Timer 3 current value
0~65535
1
R

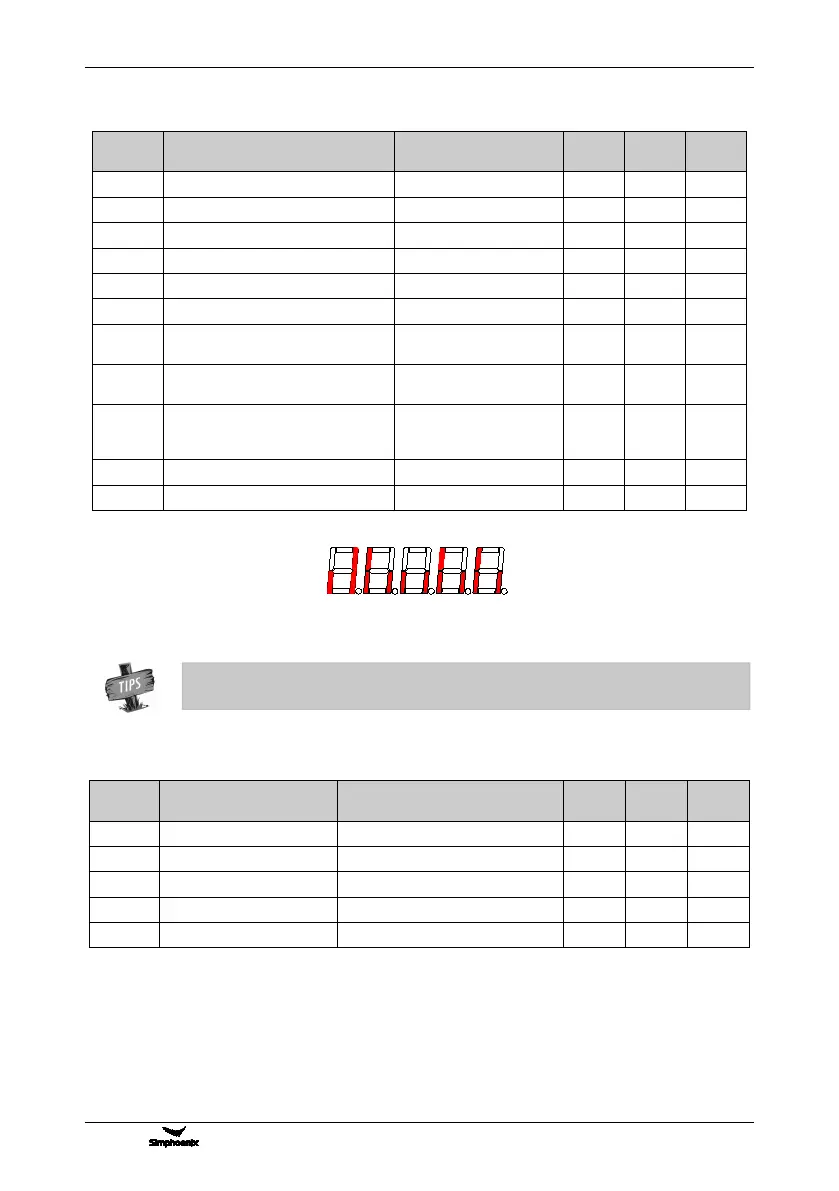

Figure 6-1 Terminal effective sketch
 As shown in Figure 6-1, DI2, DI3, DI7, DI9 terminal input is in effective status, and other
terminals are at void status.
