Simphoenix V800 Series - 13.1.3 APPEARANCE OF BRAKE UNIT; 13.1.4 INSTALLATION SIZE OF BRAKE UNIT

Accessories
V800 Series High Performance Closed-Loop Vector Inverter User Manual
234

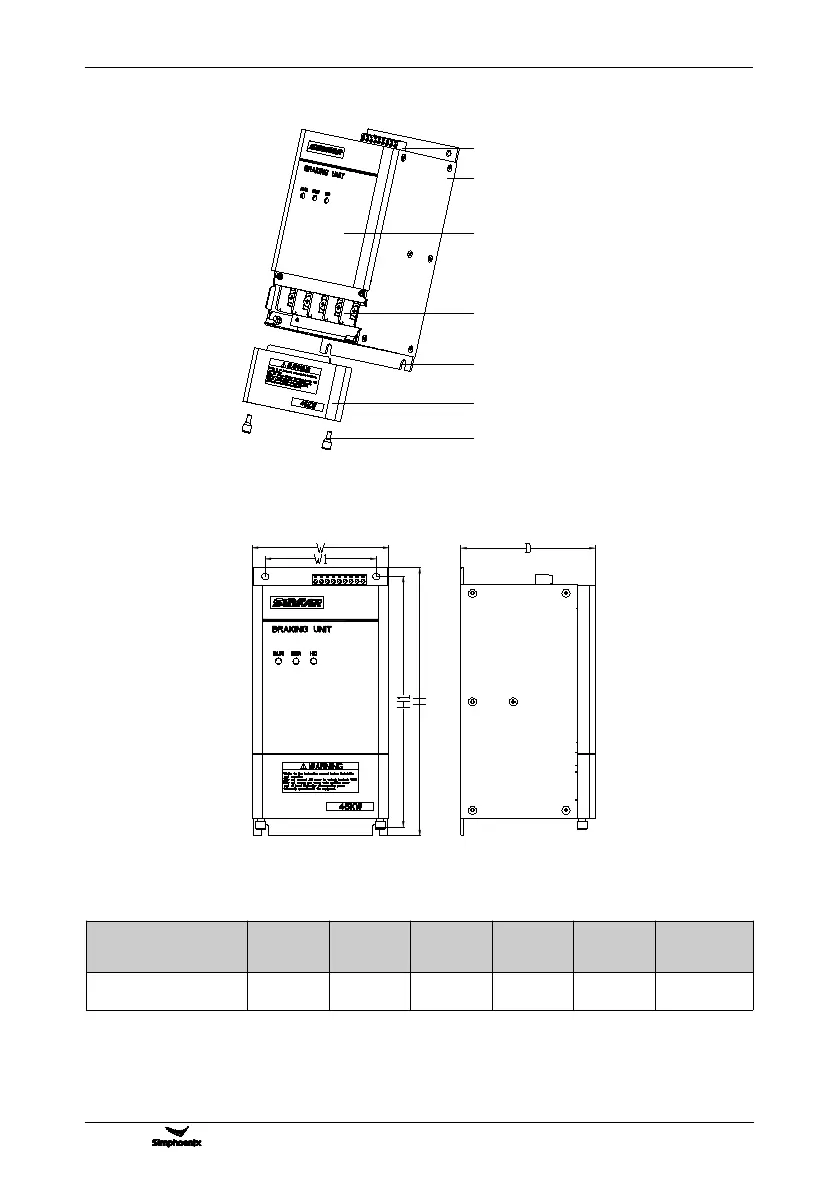

13.1.3 APPEARANCE OF BRAKE UNIT
13.1.4 INSTALLATION SIZE OF BRAKE UNIT
The installation size of brake unit is shown in the following table:
Model of the brake unit
W1
(mm)
W
(mm)
H1
(mm)
H
(mm)
D
(mm)
Screw
specification
DBKU-4T0450(4T0900)
95
117
215
230
115
M5
Control loop terminal
Housing
Panel
Main loop terminal
Installation hole
End cover
Screws
Figure 13-3 Installation size diagram
Figure 13-2 Appearance sketch
