Operation And Simple Running Of Frequency Inverter

V800 Series High Performance Closed-Loop Vector Inverter User Manual

5.2.2 OPERATING METHODS OF PANEL

1) Query for status parameters (e.g.)

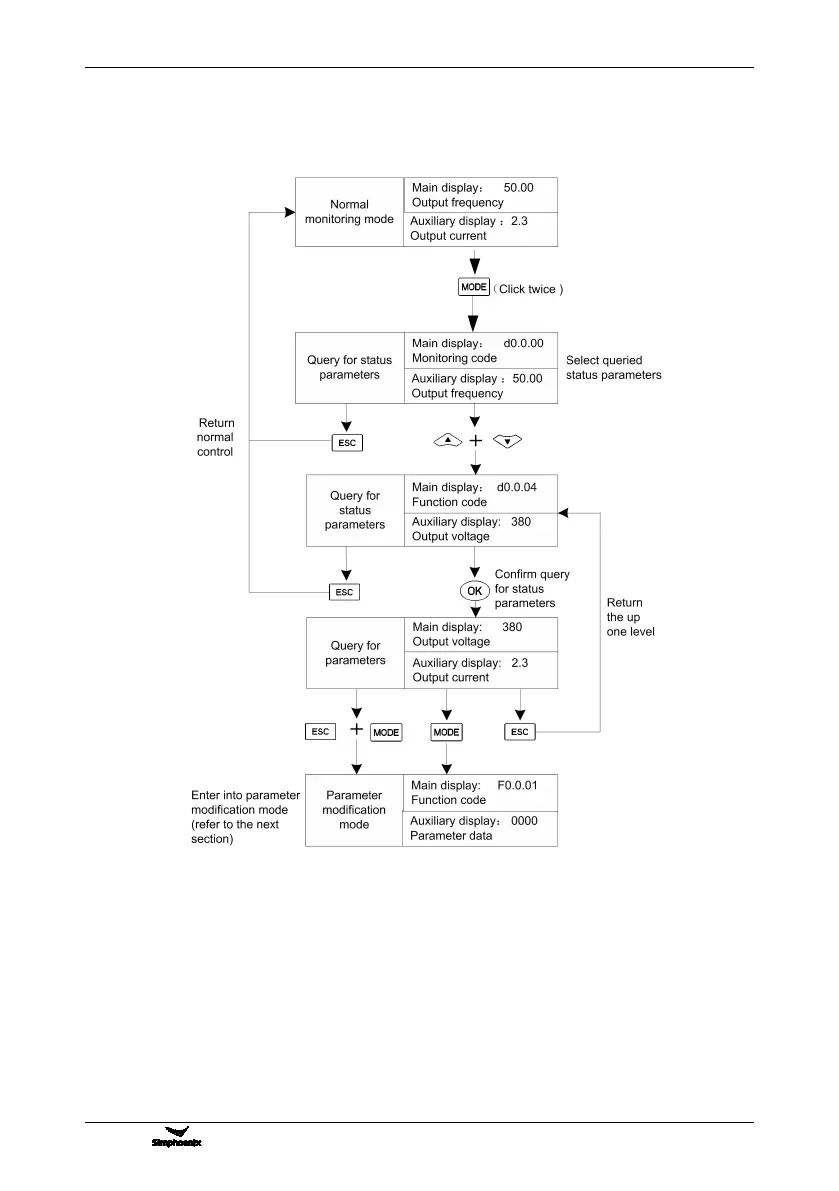

Figure 5-1 Query for status parameters
