Simphoenix V800 Series - 4.3.3 CAUTIONS TO THE WIRING OF CONTROL TERMINAL; 4.3.4 DESCRIPTION OF DIP SWITCH ON CONTROL PANEL

Wiring Of Frequency Inverter
V800 Series High Performance Closed-Loop Vector Inverter User Manual
25
Type
Label of
terminal
Name
Function description of terminal
Specification
Analog
input
AI1—GND
Analog input AI1
Select input voltage range, polarity
and other functions with function
code in F4 Group.
Input voltage: 0-10V,
Input impendance:
100K
Input current: 0-20mA
AI2—GND
Analog input AI2
Analog
output
AO1—GN
D
Multifunctional
analog output AO1
The programmable voltage/current
signal output terminal has 45 kinds
of monitoring status to be selected
by programming.
See Reference Table for Monitor
Variables for detail. JP1 and JP2
(see DIP Switch Jumper Selection
in 4.3.6 for detail) are selected
current/voltage output
Current output:
0-20mA
Capacity 40Mw, Input
current impedance:
0~300Ω
Voltage output: 0-10V
AO2—GN
D
Multifunctional
analog output AO2
Power
supply
GND
Common terminal of
analog signal
VS—GND
+10V/5V power
supply
Supply +10V/10mA or +5V/50mA
power outward
Selection of JP3 (see
DIP Switch Jumper
Selection in 4.3.6 for
detail)
4.3.3 CAUTIONS TO THE WIRING OF CONTROL TERMINAL
Please pay attention to separate the wiring of control wire and major loop. See section 1.2 for detail.

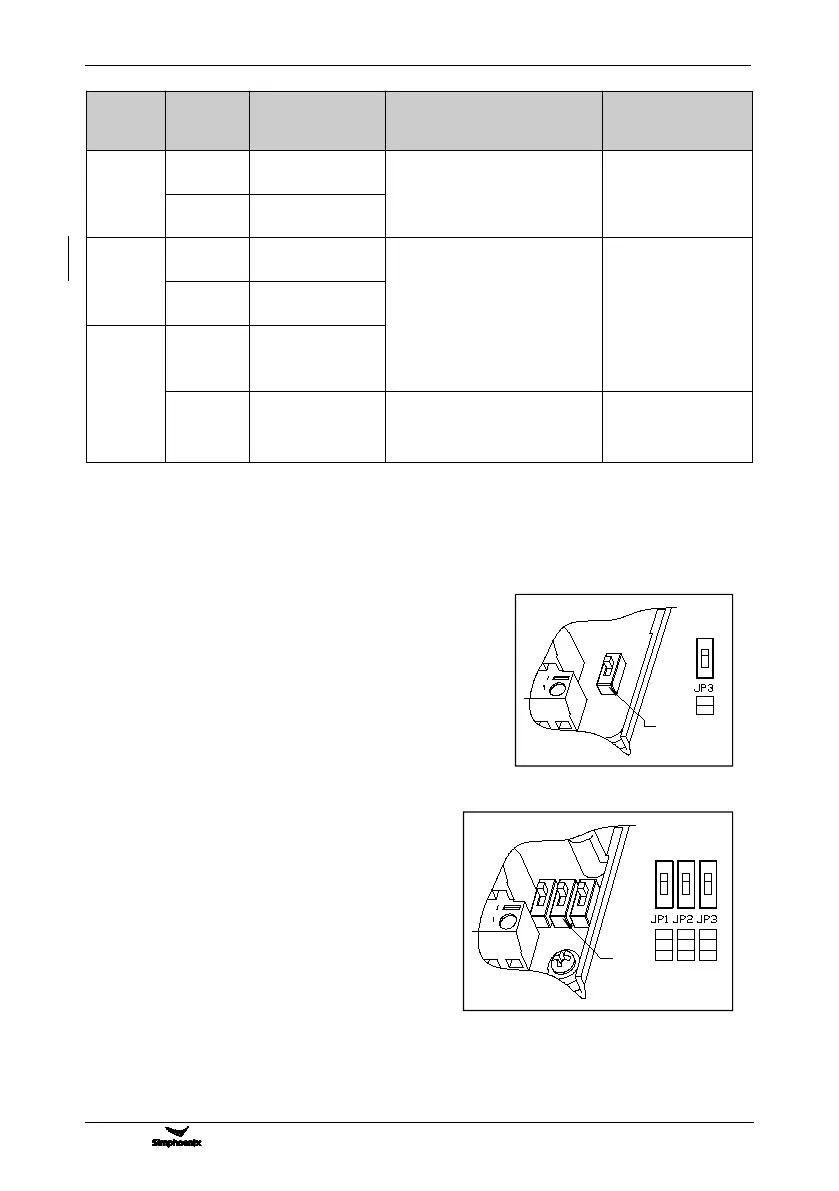

4.3.4 DESCRIPTION OF DIP SWITCH ON CONTROL PANEL
1. One DIP switch have 2 grades
suitable model: inverter model below V800-4T0022G/4T0030P
1) JP3
V grade : Export 0-10V voltage signal from the AO terminal
A grade: Provide 0-20mA current signal from AO terminal
2. Three DIP switches have 3 grades
suitable model: inverter model above V800-4T0030G/4T0040P
1) JP1
VO1 grade: AO1 terminal output voltage signal
OFF grade: AO1 terminal is in suspended status
CO1 grade: AO1 terminal output current signal
2) JP2
VO2 grade: AO2 terminal output voltage signal
OFF grade: AO2 terminal is in suspended status
CO1 grade: AO2 terminal output current signal
3) JP3
5V grade: VS terminal provides 5V voltage signal outward
OFF grade: VS terminal is in suspended status
10V grade: VS terminal provides 10V voltage signal outward
VO1
OFF
CO1 CO2
OFF
VO2 5V
OFF
10V
DIP Switch
V
A
DIP Switch
