5.3.3.2 VC (INDUCTIVE VECTOR) OPERATION
The following parameters also need to be set except the above set parameters required by SVC operation.

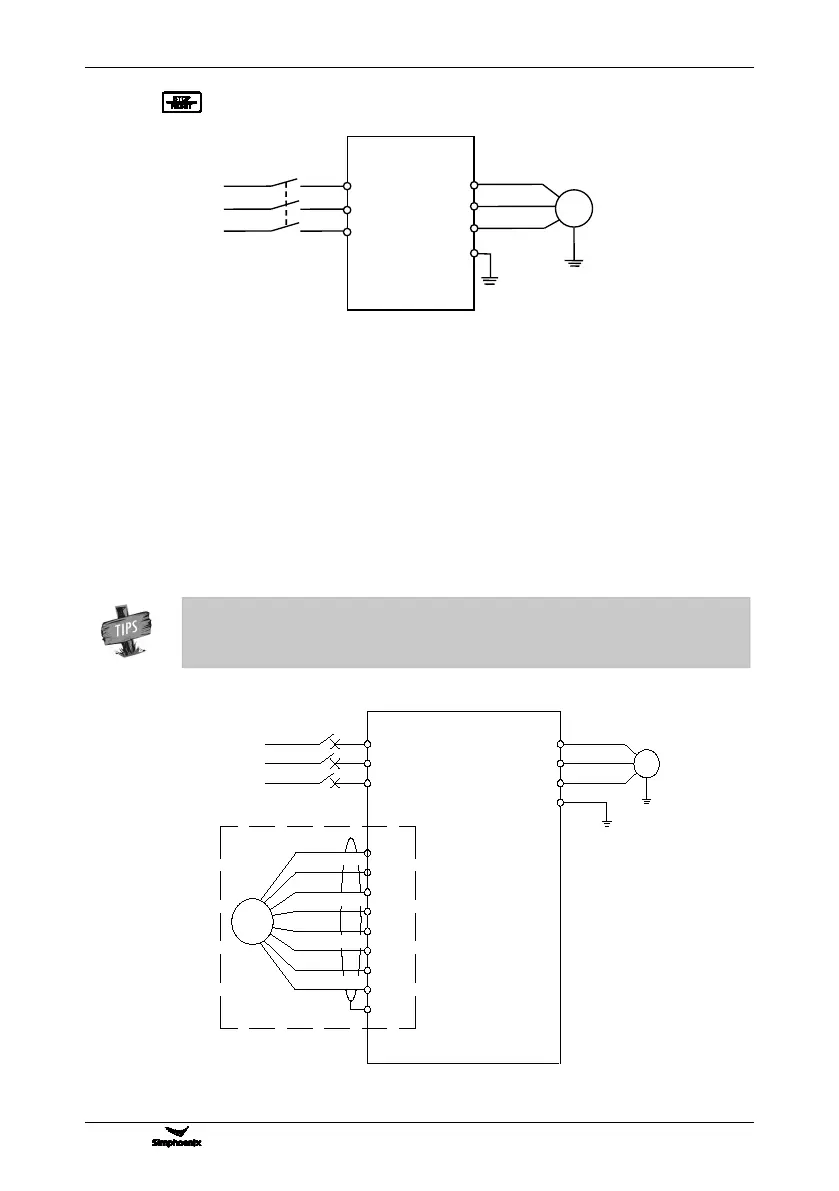

The wiring diagram is as shown in Figure 5-4.
[F0.0.09]=0010 (inductive vector control)
[F8.0.04]=0 (speed feedback channel)
[F8.0.05]=1000 (pulse of encoder per revolution)
[F8.0.06] if F/R periodic vibration is occurred in starting, this parameter shall be set as 1 (or exchange the
wiring of A, B pulse) other operations are the same as that of SVC operation.
 If the motor is completely empty-load, slight oscillation may occur sometimes in the
operation under high carrier frequency. At this time, please reduce the setting value of the
carrier frequency. (Parameter [F1.1.13]).
M
Motor
U
W
V
R
S
T
Three-phase
power supply
×
×
×
Three-phase
breaker
Grounding
E
Figure 5-3 Wiring for the operation of SVC mode
E
+12V
GD
A+
A-
B+
B-
C+
C-
PG
V800
Grounding
E
Motor
M
U
V
W
T
S
R
PG expansion card
(match)
Three-phase
breaker
Three-phase
power supply
Figure 5-4 Wiring for the operation of VC mode
