Description Of Specific Functions
V800 Series High Performance Closed-Loop Vector Inverter User Manual
170
Feedback amount
Given amount
Static deviation
Time
Output frequency
Time
F7.0.23 PID output preset
Setting range: 0.0~100.0%
Factory default:0.0
F7.0.24 Preset hold time
before PID starting
Setting range: 0.0~3600.0Sec.
Factory default:0.0
This function can make it earlier to access to the sable stage for PID adjustment. Preset value of PID output
is the relevant percentage of upper limiting frequency [F0.1.21].
When frequency inverter start to operate, first of all, it shall be sped up to the preset frequency of PID, and
operate as closed-loop characteristics after running continually for a while at this point of frequency [F7.0.24].
F7.0.25 1Actual sensor value (range)
corresponding to 100% feedback
Setting range:
0.01~100.00
Factory default: 1.00
F7.0.26 Actual sensor value
corresponding to 0% feedback
Setting range:
-100.00~100.00
Factory default: 0.0
This group of parameter determines the corresponding relationship between feedback percentage and
feedback physical quantity, which determines monitoring the displayed dimension of parameter d0.1.36 and
d0.1.37. Corresponding relationship curve is shown in Figure 7-58.

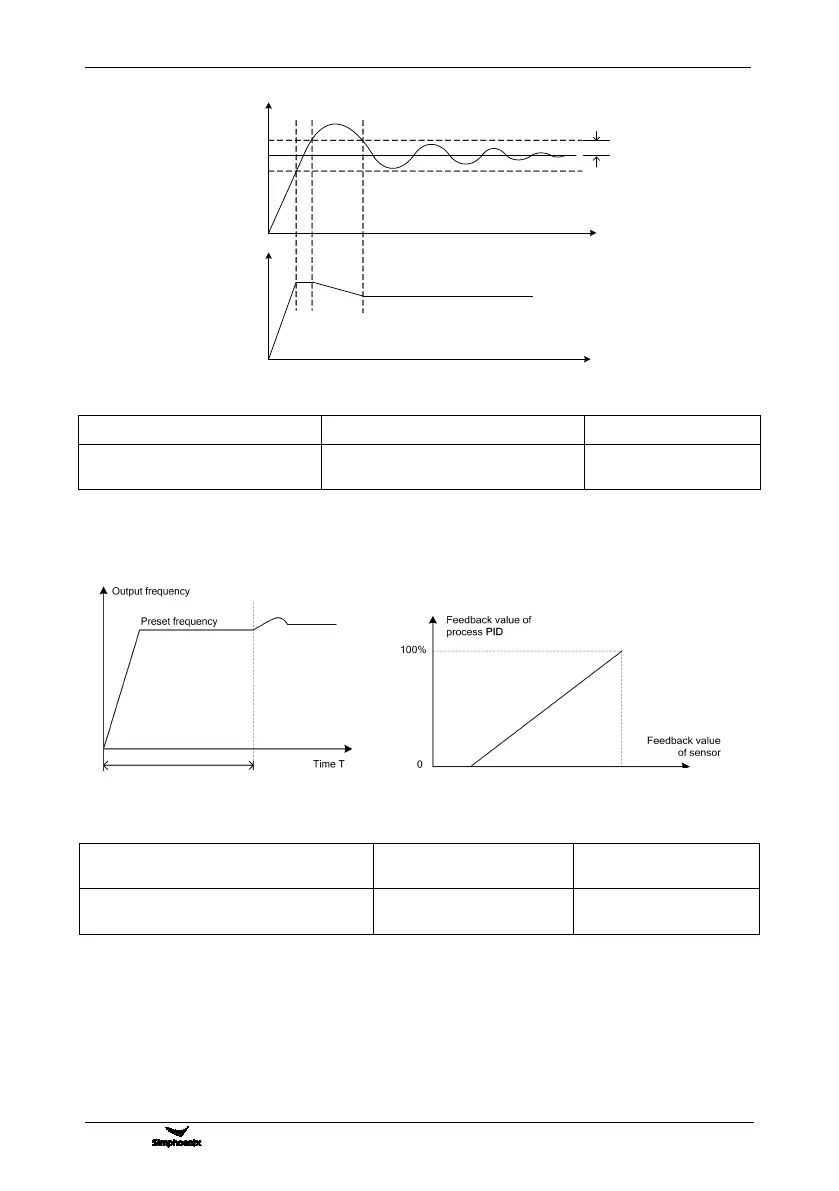

Figure 7-56 Sketch of static deviation
Figure 7-57 Sketch of
closed-loop preset frequency operation
Figure 7-58 Relationship curve of feedback
percentage and corresponding sensor value
