Command Attributes
• Mirror Sessions – Displays a list of current mirror sessions.
• Source Unit – The unit whose port traffic will be monitored.
• Source Port – The port whose traffic will be monitored.
• Type – Allows you to select which traffic to mirror to the target port,
Rx (receive), or Tx (transmit).
• Target Unit – The unit whose port will “duplicate” or “mirror” the
traffic on the source port.
• Target Port – The port that will mirror the traffic on the source port.
Web – Click Port, Mirror Port Configuration. Specify the source port/
unit, the traffic type to be mirrored, and the monitor port/unit, then click
Add.

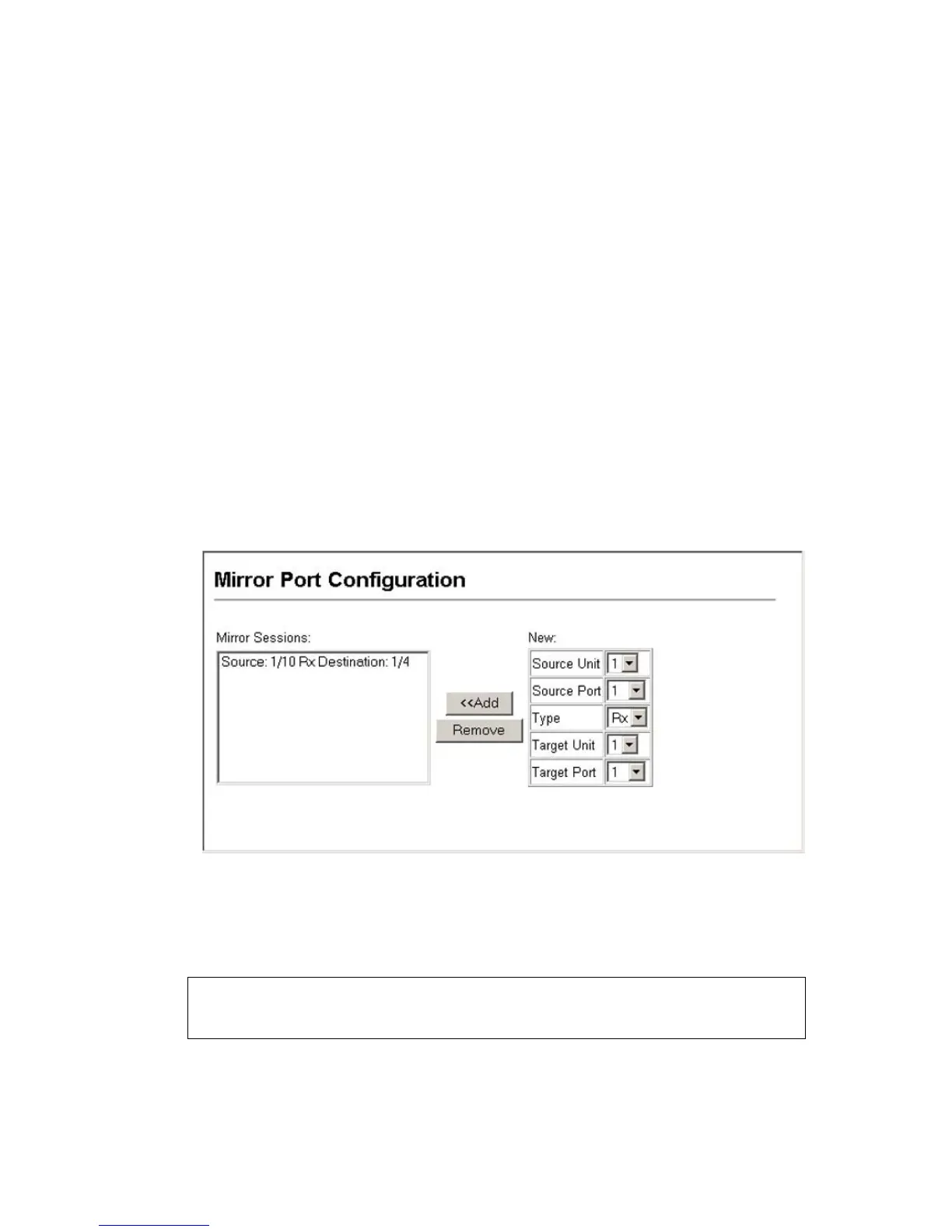

Figure 3-49 Mirror Port Configuration
CLI – Use the interface command to select the monitor port, then use the
port monitor command to specify the source port and traffic type.
Console(config)#interface ethernet 1/10 4-146
Console(config-if)#port monitor ethernet 1/13 tx 4-159
Console(config-if)#
