C
ONFIGURING
THE
S
WITCH
3-190
Web – Click IGMP Snooping, IP Multicast Registration Table. Select a
VLAN ID and the IP address for a multicast service from the scroll-down
lists. The switch will display all the interfaces that are propagating this
multicast service.

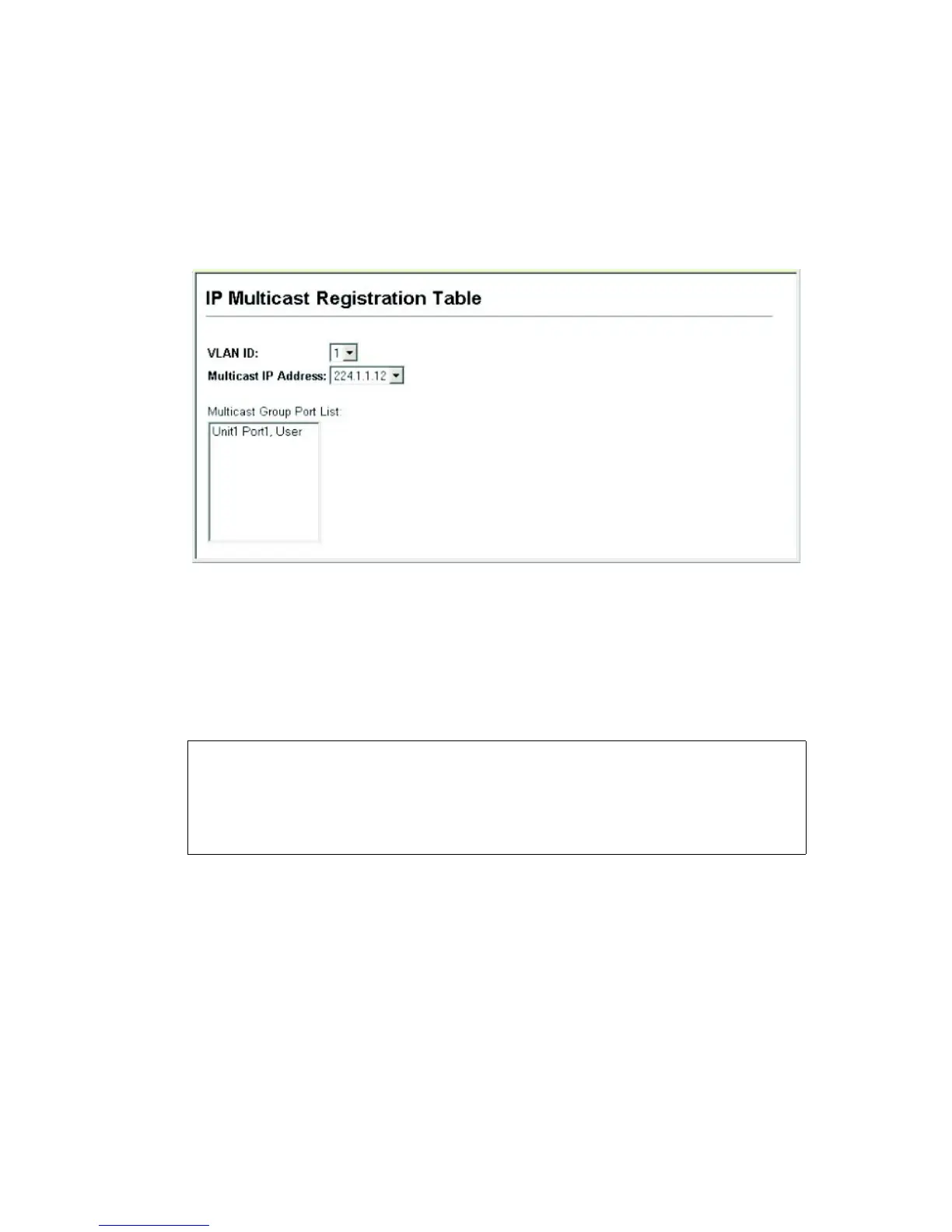

Figure 3-85 IP Multicast Registration Table
CLI – This example displays all the known multicast services supported
on VLAN 1, along with the ports propagating the corresponding services.
The Type field shows if this entry was learned dynamically or was statically
configured.
Console#show bridge 1 multicast vlan 1 4-241
VLAN M'cast IP addr. Member ports Type
---- --------------- ------------ -------
1 224.1.1.12 Eth1/12 USER
1 224.1.2.3 Eth1/12 IGMP
Console#
