Web – Click VLAN, Private VLAN, Information. Select the desired port
from the VLAN ID drop-down menu.

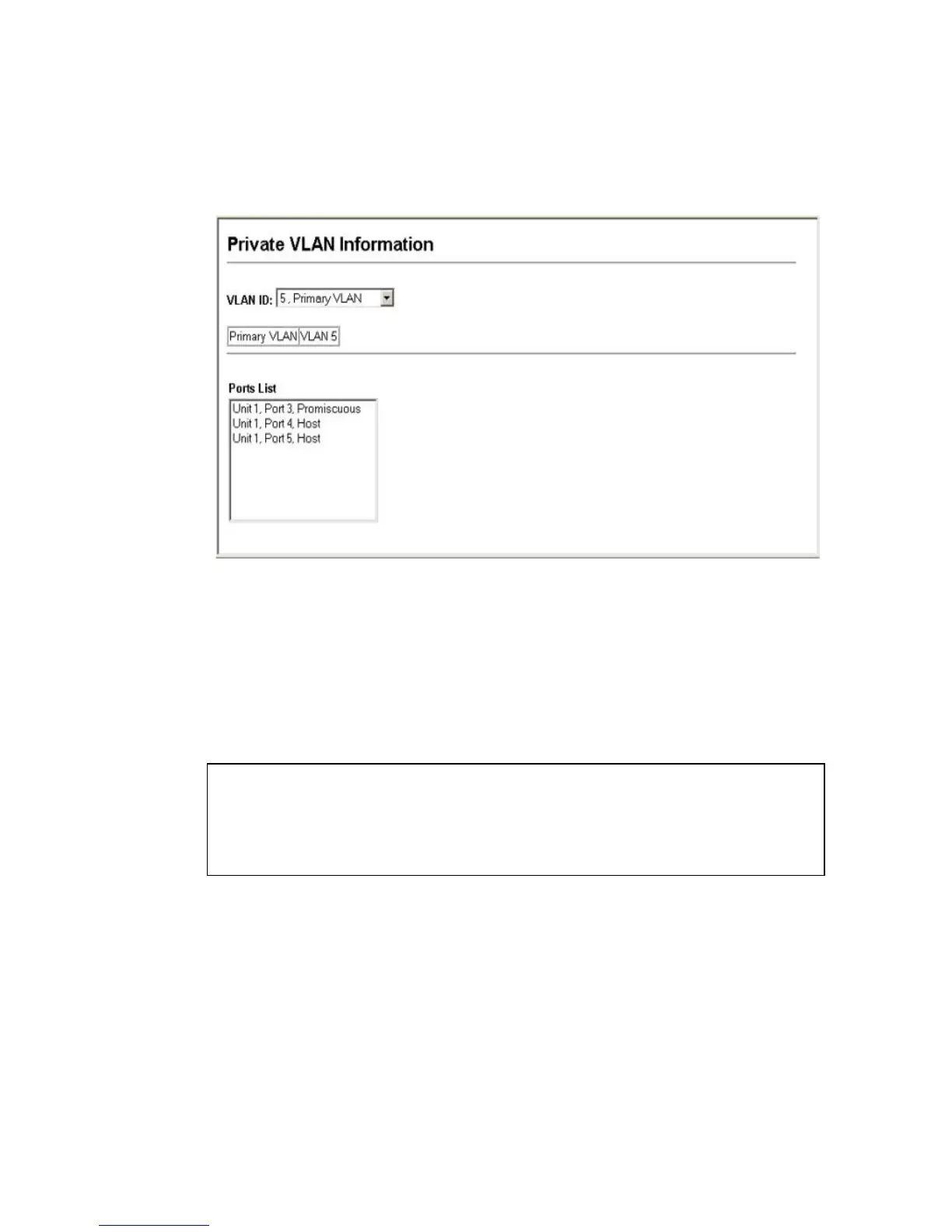

Figure 3-67 Private VLAN Information
CLI – This example shows the switch configured with primary VLAN 5
and secondary VLAN 6. Port 3 has been configured as a promiscuous port
and mapped to VLAN 5, while ports 4 and 5 have been configured as a
host ports and are associated with VLAN 6. This means that traffic for
port 4 and 5 can only pass through port 3.
Configuring Private VLANs
The Private VLAN Configuration page is used to create/remove primary
or community VLANs.
Command Attributes
• VLAN ID – ID of configured VLAN (1-4094).
Console#show vlan private-vlan 4-215
Primary Secondary Type Interfaces
-------- ----------- ---------- --------------------------------
5 primary Eth1/ 3
5 6 community Eth1/ 4 Eth1/ 5
Console#
