VLAN C
ONFIGURATION
3-167
Web – Click VLAN, Private VLAN, Port Configuration or Trunk
Configuration. Set the PVLAN Port Type for each port that will join a
private VLAN. For promiscuous ports, set the associated primary VLAN.
For host ports, set the associated secondary VLAN. For isolated ports, set
the associated isolated VLAN. After all the ports have been configured,
click Apply.

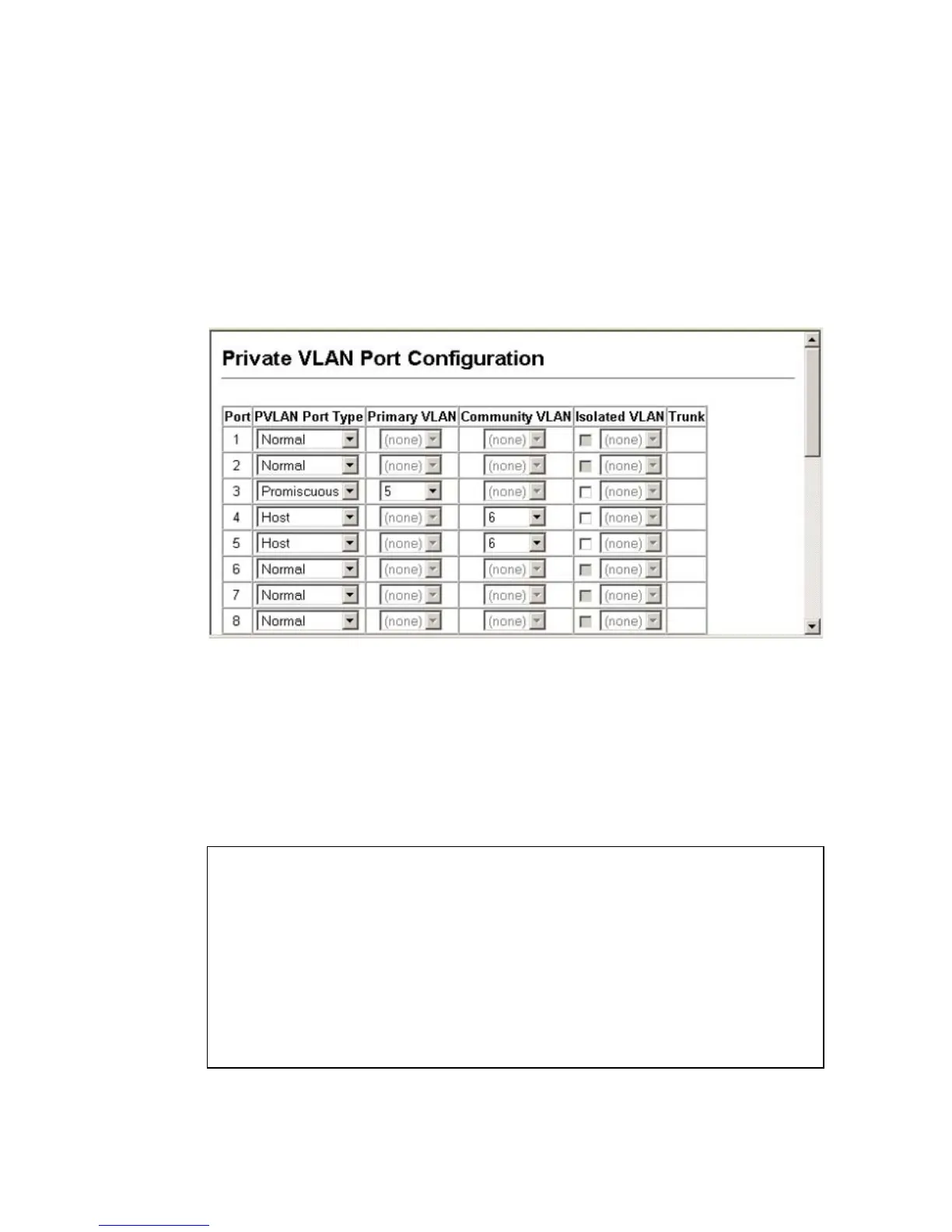

Figure 3-71 Private VLAN Port Configuration
CLI – This example shows the switch configured with primary VLAN 5
and secondary VLAN 6. Port 3 has been configured as a promiscuous port
and mapped to VLAN 5, while ports 4 and 5 have been configured as a
host ports and associated with VLAN 6. This means that traffic for port 4
and 5 can only pass through port 3.
Console(config)#interface ethernet 1/3
Console(config-if)#switchport mode private-vlan promiscuous 4-213
Console(config-if)#switchport private-vlan mapping 5 4-214
Console(config-if)#exit
Console(config)#interface ethernet 1/4
Console(config-if)#switchport mode private-vlan host 4-214
Console(config-if)#switchport private-vlan host-association 6 4-214
Console(config-if)#exit
Console(config)#interface ethernet 1/5
Console(config-if)#switchport mode private-vlan host
Console(config-if)#switchport private-vlan host-association 6
Console(config-if)#
