5 Operation
Lift height preselector (variant)
43
When the truck has been switched
ON, area
"A" (2) is automatically select
ed. The area can
be changed by pressing the butto
n(3).If"H"
is reached, "A" is repeated. Thi
s enables area
preselection. A level can be sel
ected (1-20)
by entering a digit using the alp
hanumeric
keypad (4). The complete sele
ction (level and
area) is shown in the display (
5). The stored
target height is displayed un
der (6).
NOTE
During free lift, the difference between the re-
ference height and the target height is shown
on the display as the "lift height remaining un-
til target (target difference)" (6). The display
does not show the difference between the cur-
rent lift height and target height until after the
reference switch has been passed. The se-
lection (level and area) can be cancelled using
the "DEL" button.
1
23 4 5
Example: Placing into stock in fully
automatic mode
NOTE
Placing into stock can only be selected if valid
heights were assigned to the levels during
the teach-in process. Levels that are invalid
or that have not had a height assigned to
them are not activated in automatic mode.
All programmable heights are set at the
factory to "5500 mm". Automatic mode can
be interrupted at any time using the "MAN"
button!

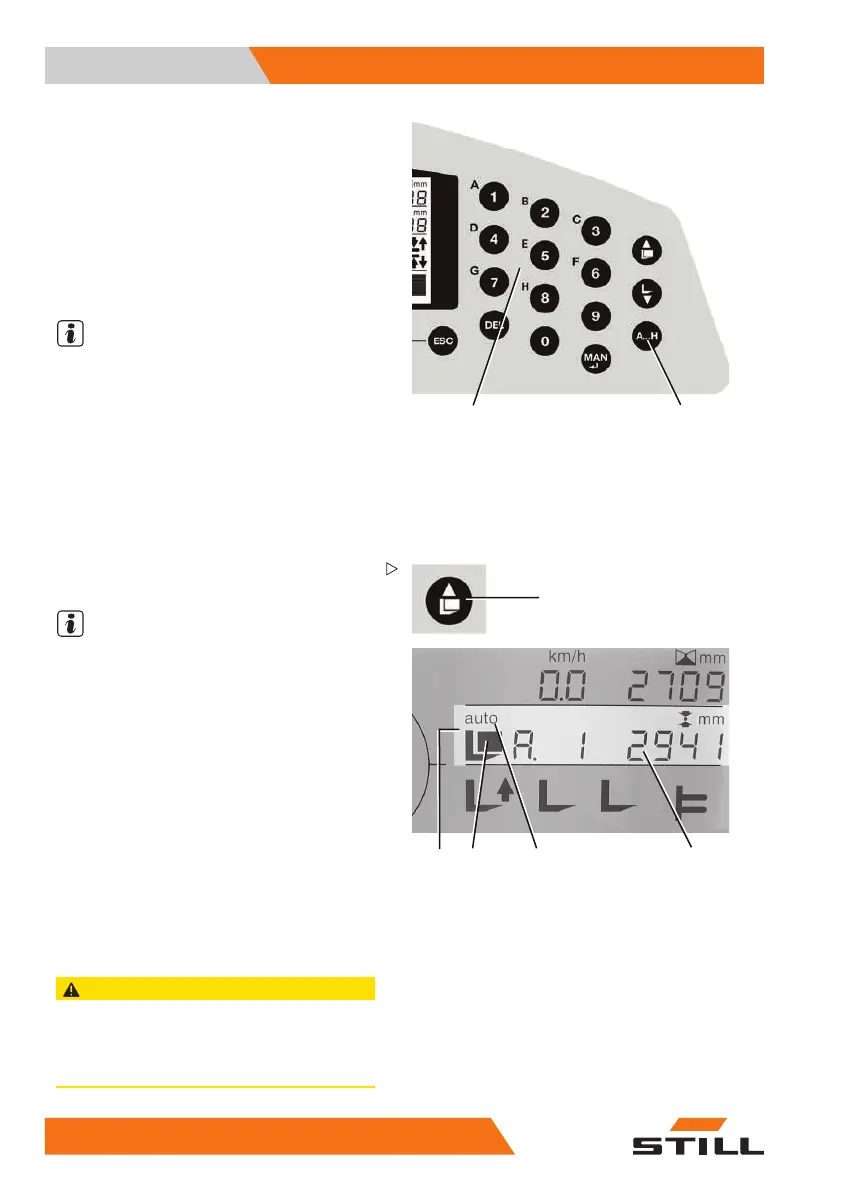

– After entering the target level (e.g. A1),
press the button for placing into stock (1).
The symbol for placing into stock (3) and
"auto" for automatic operation (4) appear in
the assistant (2). The display (5) changes
from the target height to the distance to the
target (target difference).
CAUTION
If the placing into stock button (1) is not pressed, all
hydraulic functions are available without restriction
(= manual operation)!
Pay attention to the symbols in the display!
