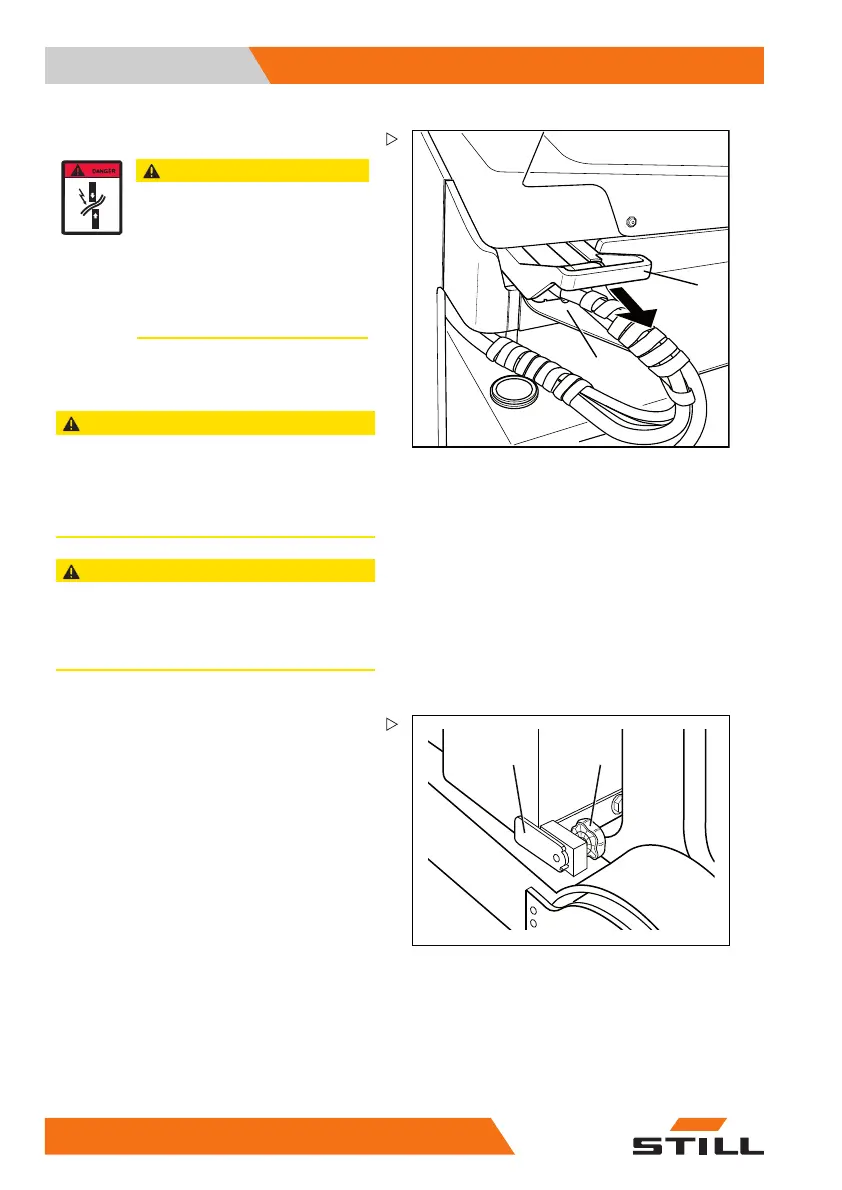

5 Operation
Handling the battery
3
4
– Disconnect the battery male connector (3).
CAUTION
There is a risk of short circuit if the
cables are damaged!
Position the battery cable on the
battery in such a way that it cannot be
crushed when removing or inserting
the battery.
– Check the connection cables for
damage.
Releasing the swing bolt
CAUTION
If the battery rolls out of the battery compartment
when no external device is present, this can lead to
material damage.
Before removing the battery, always have an
external device in position.
CAUTION
Risk of injury from crushing and shearing points
Always actuate the swing bolts with just one hand
and make sure that fingers are kept away from the
rotation and clamping range.
The battery is held in position by a swing bolt.
21
– To release the tension, rotate the turning
handle (1) anti-clockwise to the stop.
20
8 50988078001 [EN]
