Operation 5
Handling the battery
– Position the truck and battery rack parallel
to each other.
– Position the truck and the battery rack so
that the roller channels of the truck and
battery rack are exactly aligned with each
other.
Extending the battery
The battery sits in a frame.
To replace the
battery, this frame is exte
nded in the load
direction together with th
e reach carriage.
Before the reach carriage i
s extended, the
battery lock lever must be a
ctuated. When the
reach carriage is fully re
tracted, the battery
frame is mechanically loc
ked again.
– Retract the reach carriage fully.
– Apply the parking brake.

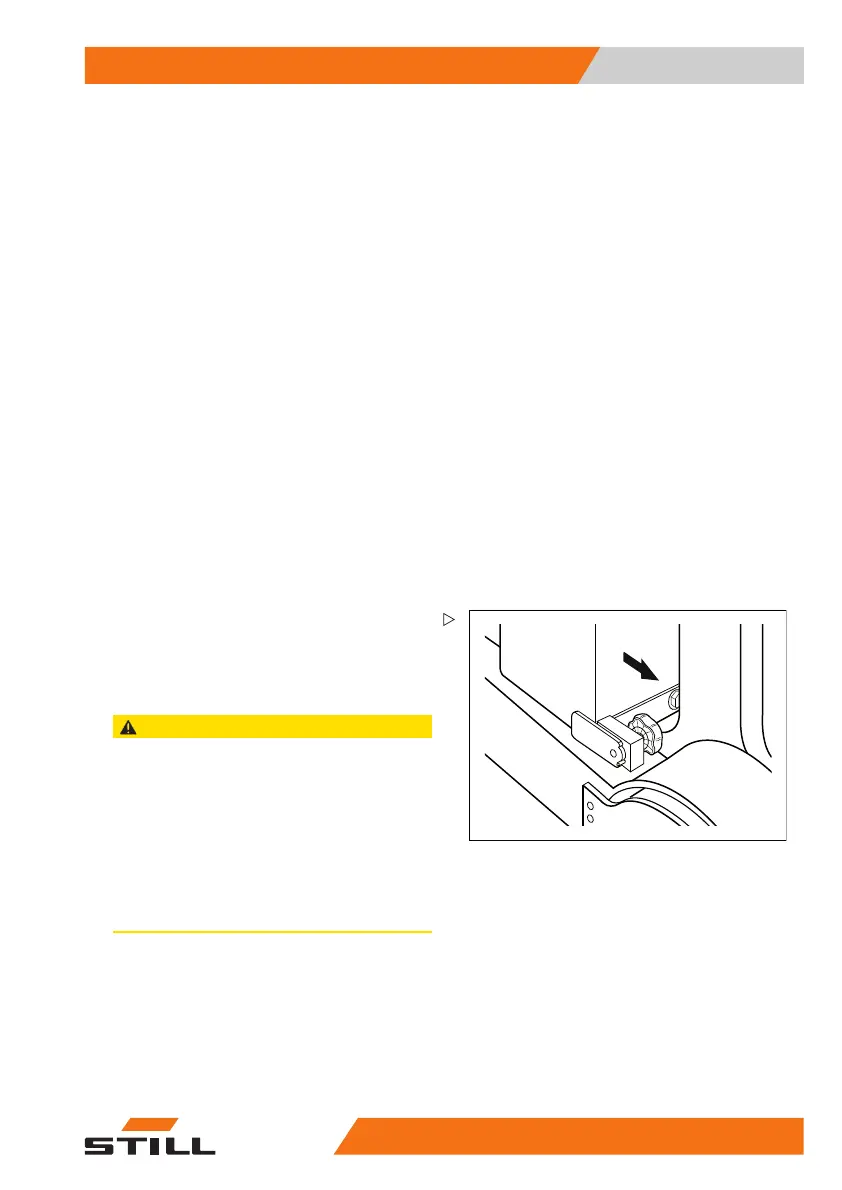

– Release the battery lock
(refer to the
chapter entitled "Actua
ting the battery
lock").
– Press the foot switch.
2
– Extend the reach carriage fully together with
the battery (2).
– Switch off the truck.
– Press the emergency off switch.
CAUTION
Risk of component damage!
If you remove the battery male connector while
the truck is switched on (under load), an arc will be
produced. This can cause the contacts to erode,
which considerably shortens their service life.
– Switch off the truck before the battery male
connector is disconnected.
– Do not disconnect the battery male connector
whilethetruckisswitchedonexceptinthecase
of an emergency.
50
988078001 [EN] 207
