Stratasys Objet24 - Operator Maintenance Procedures

DOC-34014 Rev. C 6–37
Objet24 User Guide
CloggednozzlesareseeninWeightTestsamplesasmissingrowsof
printedmaterial.
a. Placethealignmentlineontherightsideoftherulernexttothe
bottomofthesample,asshown.

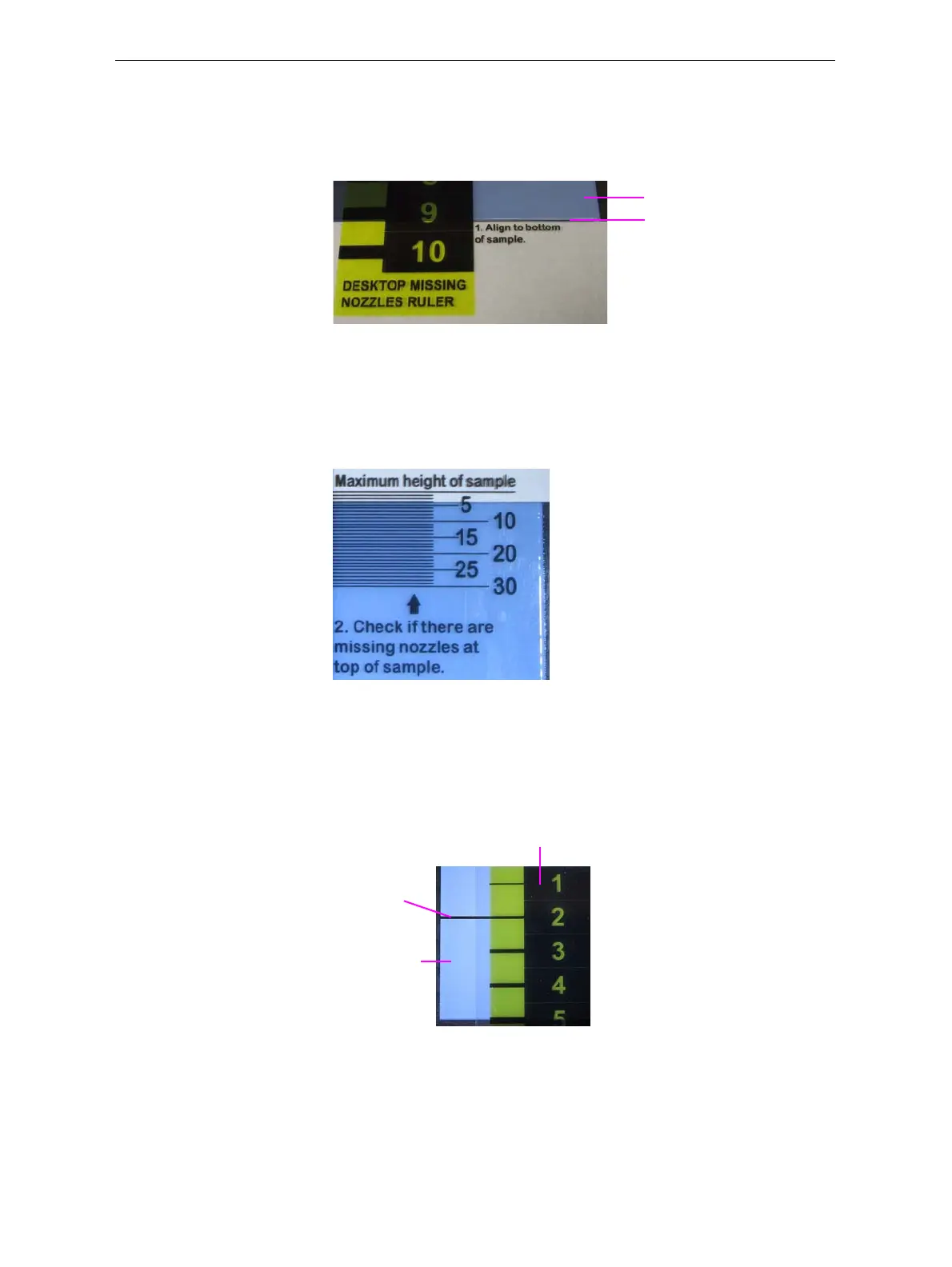

Figure 6-56: Aligning the ruler to the bottom of the sample
b. Checkifthereisaspacebelowthelineontherulermarked
“Maximumheightofsample.”
Aspacebelowthislineindicatesmissingnozzlesattheextremesof
theprintedsample.Thenumbersindicatehowmanyprinted rows
(nozzles)aremissing.Rememberthisnumber.
Figure 6-57: Measuring missing nozzles at the extremes of the sample
Note:Because you align the ruler to the bottom of the printed sample,
missing nozzles at the bottom edge are measured at the top of the ruler.
c. Checkiftherearegapsintheprintedsamplebymatchingthegapin
thesamplewithalineontheMissingNozzlesruler.Thenumberon
therulernexttothelineindicatesthenumberofmissing
rows/nozzles.
Figure 6-58: Measuring a missing row in a printed sample
Intheexampleabove,thenumberofmissingnozzlesistwo(2).
Printed sample
Line on ruler
Missing row
Printed sample
Ruler
